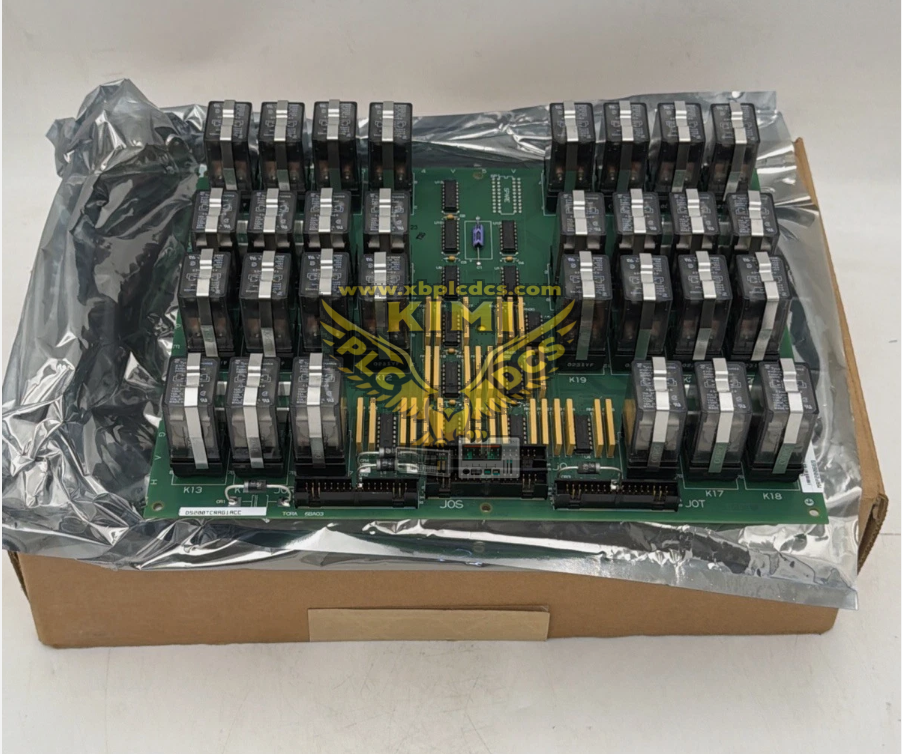

GE DS200TCRAG1A Mark V RST 30-Channel Plug-in Relay Output Board

Product Brief Description

The DS200TCRAG1A is a high-density relay output control board developed by General Electric (GE) for the classic Speedtronic Mark V gas turbine control system, manufactured by GE Boards&Turbine Control at its US industrial production base. As a dedicated high-reliability switch execution component in the Mark V RST system architecture, it is equipped with 30 independent plug-in relays, responsible for converting the low-voltage logic signals output from the main control board into high-capacity relay contact signals, which directly drive on-site safety actuators such as gas turbine safety relays, solenoid valves, indicator lights and motor control loops. It is one of the most widely deployed relay execution components in global in-service Mark V gas turbine systems.

Core Technical Specifications

• Manufacturer: GE (General Electric) Boards&Turbine Control, original US industrial-grade production standard
• Product Category: Mark V DS200 series relay output main board, belonging to the core execution component of the RST system architecture
• Physical Parameters: Industrial multi-layer PCB with anti-corrosion coating, net weight about 0.9kg, compliant with power plant level anti-vibration and anti-electromagnetic interference standards
• Channel Configuration: 30 independent replaceable plug-in relays, each channel supports maximum 2A/250VAC or 3A/30VDC load driving capacity
• Interface Definition: Equipped with 4 units of 34-pin connectors (IDs: JOR, JOS, JOT, JO) and 4 units of 12-pin connectors (IDs: JS3, JS4, JS5, JS6), seamlessly interconnected with Mark V main logic board and supporting relay terminal boards
• Operating Environment: -20°C to +70°C working temperature range, 0-95% non-condensing relative humidity, fully meeting IEC 61508 functional safety industrial EMC standards

Key Core Functions

• High-Density Relay Output Expansion: 30 channels of high-reliability plug-in relays are integrated on a single board, which can directly convert low-voltage TTL logic signals output from the Mark V main control CPU into high-current relay contact signals, meeting the driving requirements of on-site safety actuators for gas turbine control, safety interlock, alarm indication and other scenarios. The channel density is 2 times higher than that of traditional discrete relay modules, effectively saving the installation space of the control cabinet
• Hot-Swap Replaceable Relay Design: All 30 relays on the board adopt independent plug-in structure. When a single relay fails, maintenance personnel can directly pull out the faulty relay for replacement without replacing the whole board, which greatly reduces the spare parts cost and shortens the fault maintenance time. Manufacturers recommend regular relay function testing every 5 years to ensure the long-term reliability of the contacts
• Strong Anti-Interference and Load Driving Capability: The board is specially designed with surge absorption and arc suppression circuits for each relay channel, which can effectively absorb the reverse electromotive force generated by inductive loads such as on-site solenoid valves, avoiding damage to the main control board caused by reverse impact, and ensuring that the control action is executed stably and reliably even in the complex high-interference industrial environment of power plants
• Multi-Port Signal Flexible Expansion: 4 sets of 34-pin connectors and 4 sets of 12-pin connectors are reserved on the board, which not only realize high-speed signal interconnection with the Mark V system bus, but also support the convenient expansion of external relay terminal boards, which can flexibly adapt to different engineering wiring requirements of various types of gas turbine control projects

Typical Application Scenarios

• GE 9E/9F series heavy-duty gas turbine Mark V control systems in combined cycle power plants and large simple cycle power stations
• Spare parts replacement and safety control system upgrade transformation projects of in-service Mark V systems in large-scale petrochemical refinery captive power plants
• Large centrifugal compressor control system interlock signal output supporting for natural gas long-distance transmission trunk lines and LNG receiving stations
• Safety interlock relay signal execution scenarios of auxiliary gas turbines and large industrial boilers in large metallurgical steel plants and industrial central heating islands

Installation and Maintenance Guidelines

• Strictly implement anti-static protection before installation: operators must wear reliably grounded anti-static wrist straps to avoid static electricity damaging the on-board relay drive circuit components. Since the relays are relatively fragile plug-in components, avoid applying excessive external force to the board during handling and installation, which may cause the relays to break off from the PCB
• Mark the ID of each ribbon cable connector on the corresponding cable in advance before dismantling the old board, and install it according to the original ID mark during reinstallation, so as to avoid signal connection errors caused by wrong wiring of the multi-group connectors
• After the replacement of a single relay, perform an action test on the corresponding channel to confirm that the relay acts flexibly and the contact conduction is reliable, and it is strictly forbidden to start the system without testing
• It is recommended to regularly clean the dust accumulated on the surface of the board during daily operation, check the tightness of the relay plug-in every 3 years, and replace the aging relay contacts in time, which can effectively extend the service life of the whole board to more than 20 years

Market and Supply Status

Although GE has officially discontinued mass production of this Mark V series relay output board, multiple professional industrial DCS spare parts suppliers in Xiamen, Fujian still have sufficient spot stocks of original unused and fully refurbished units that have undergone 72-hour continuous action testing. The current reference market price is about 2600 CNY, which can be delivered quickly within 1-2 working days, fully meeting the spare parts replacement and emergency maintenance demands of global in-service Mark V gas turbine control systems.
