Brand :GE General Electric

Model :IS215UCVEH2AF

Product type :VME controller

Dimensions :16.7 cm x 14.8 cm x 5.5 cm

Weight :0.6 kg

Working voltage :220V

Output frequency :50 kHz

Certified product :IS215UCVEH2AF

Series :IS215UCVEH2AF

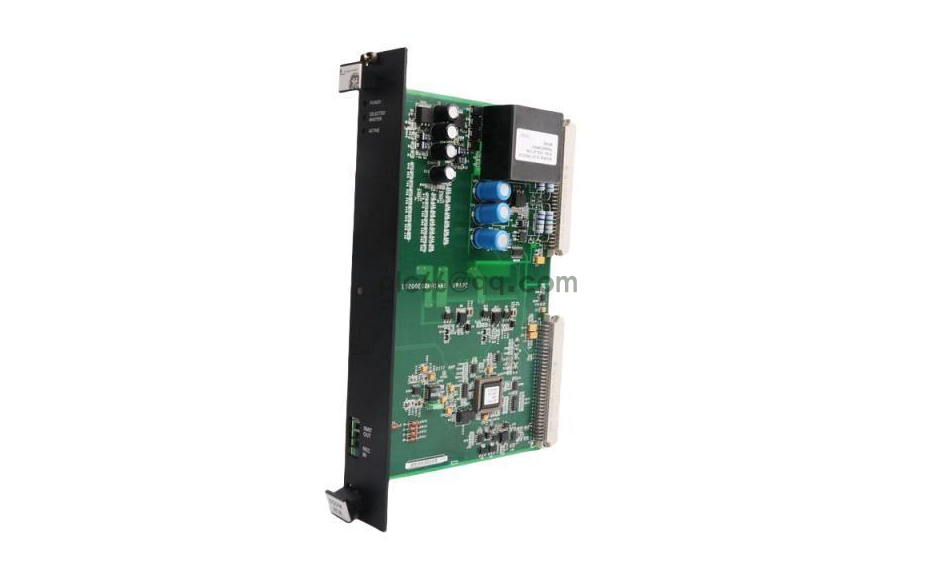

The GE IS215UCVEH2AF VME controller module is specially designed for industrial automation environments and features outstanding stability and reliability.

This module adopts the advanced VME architecture, which can effectively enhance the response speed and processing capacity of the system.

Its compact design makes installation more convenient and ensures long-term stable operation in harsh industrial environments at the same time.

This controller supports a wide range of input and output interfaces, facilitating seamless integration with other devices.

In addition, through a strict quality control process, it is ensured that every module leaving the factory can meet the highest standards and satisfy the demands of different application scenarios.

Whether for factory automation, energy management or process control, the GE IS215UCVEH2AF is your ideal choice.

Functional Description

IS215UCVEH2AF is a VME board developed by GE. It is a part of Mark VI control system. This single-slot VME (Versa Module Eurocard) board plays a crucial role in the control system's operations. The system features an Intel Celeron microprocessor running at 300 MHz and is accompanied by 32 MB of DRAM memory. It offers flexibility with the choice between a 16 MB or 128 MB Compact Flash Module. Additionally, the system includes a 128 KB L2 cache, enhancing data access speeds. To support controller functions, an 8K battery-backed SRAM is allocated, serving as NVRAM within the system architecture.

Primary Ethernet Interface (Ethernet 1)

The primary Ethernet interface (Ethernet 1) on this system boasts the following specifications：

Connection Type： Utilizes twisted pair 10BaseT/100BaseTX technology with an RJ-45 connector, enabling versatile connectivity options.

Communication Protocols： TCP/IP Protocol: Primarily employed for communication between the controller and the toolbox, ensuring seamless data exchange within the system.

EGD Protocol：Specifically designed for communication purposes with CIMPLICITY HMI (Human-Machine Interface) and Series 90-70 PLCs (Programmable Logic Controllers), facilitating efficient and reliable data transmission.

Ethernet Modbus Protocol： Supports communication between the controller and third-party DCS (Distributed Control Systems), offering compatibility and integration capabilities across different systems.

Board Configuration and Connectivity

Interface Ports: The controller is equipped with two serial RS-232C ports and an Ethernet port. Additionally, it includes connectors for external peripherals such as a keyboard, mouse, and monitor.

On-board Components： Housing a high-speed processor, flash memory, and DRAM, the board efficiently handles processing tasks and stores essential system data.

Data Acquisition： External data is directed to the IS215UCVEH2AAE via the VCMI communications board. The type of data transmission can vary, using either process I/O (simplex) or voted I/O (TMR), depending on the system configuration.

Variants： There exist multiple versions of the UCV VME controller card. The UCVE board variant specializes in providing one to three PROFIBUS-DP masters, focusing on communication applications based on ISO/OSI model layers one and two.
