Brief Product Description

IS200EPSMG1ABB is an exciter power‑supply module (EPSM) built for GE Speedtronic Mark VI turbine control and EX2100 generator excitation systems. This plug‑in rack‑mount PCB accepts 125 VDC input from EPDM power distribution unit and converts it into multiple regulated isolated DC outputs for controllers, drive circuits and auxiliary field equipment. Equipped with front‑panel LED diagnostic indicators, conformal‑coated circuit board and comprehensive electrical protection circuits, it guarantees stable 24‑7 continuous operation for mission‑critical power‑generation cabinets and is widely used as spare replacement part for on‑site maintenance and retrofitting.

Core Product Functions

• Accept 125 VDC input and convert to multi‑channel stabilized outputs: +5V, ±15V, +24V and +70 VDC for excitation system hardware
• Step‑down regulator plus push‑pull inverter topology for efficient galvanically‑isolated power conversion
• Deliver clean power to EMIO controllers, EDEX drive boards, fault‑detection and auxiliary excitation components
• Built‑in over‑voltage, over‑current, short‑circuit and over‑temperature hardware protection mechanisms
• Front‑panel multi‑LED status indicators for real‑time operating condition and fault diagnosis

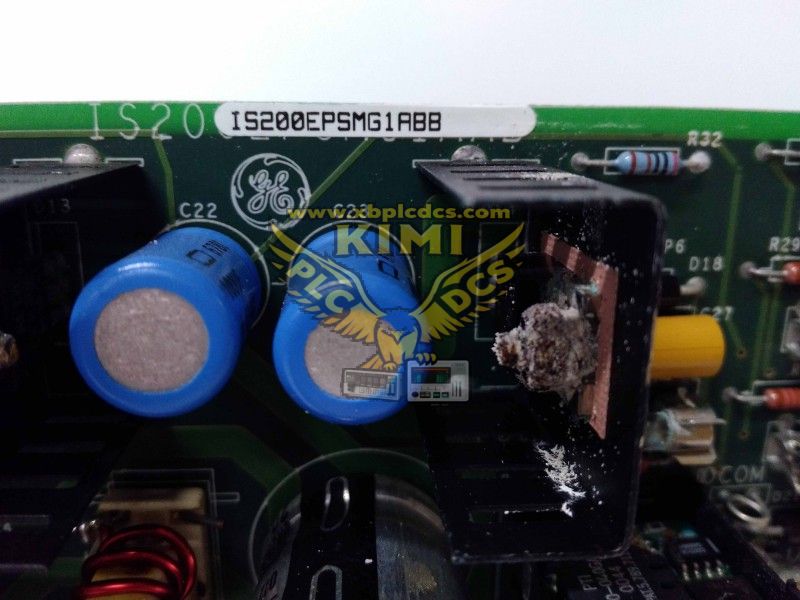

• Conformal coated PCB to resist humidity, dust and corrosive gas inside power‑plant cabinets
• Standard single‑slot plug‑in structure for EPBP exciter power backplane installation
• Suppress power‑line noise and electromagnetic interference to protect downstream control modules

• Maintain steady output voltage under dynamic load fluctuation during generator runtime

Application Scenarios

• GE Mark VI Speedtronic gas turbine and steam‑turbine control cabinet power supply units
• EX2100 / EX2100e generator excitation control systems in thermal and combined‑cycle power plants
• Hydro‑electric power‑station generator excitation and turbine‑governor control racks
• Oil & gas plant on‑site power generation and turbo‑machinery protection control cubicles
• Cogeneration and industrial self‑power‑plant critical excitation power conversion assemblies

• Spare replacement module for repair and upgrade of legacy GE Mark VI & EX2100 installations

FAQ (Frequently Asked Questions)

• Q: Module LED indicators off, no output power after 125VDC input?
  A: Check input voltage supply quality, backplane contact status, internal fuse damage, over‑protection latch‑up or component aging failure.
• Q: System randomly resets or experiences unstable control‑board power supply?
  A: Inspect loose backplane connection, cabinet grounding, excessive heat accumulation, output‑side short‑circuit risk or capacitor degradation.
• Q: Can IS200EPSMG1ABB be hot‑swapped while excitation rack remains energized?
  A: Hot‑swap is not permitted. Cut off rack power and release residual voltage before module removal to avoid system trip and hardware damage.
• Q: Can this EPSM module run with non‑Mark VI third‑party turbine control hardware?
  A: It is dedicated for GE Mark VI / EX2100 platforms; mechanical pin‑definition and power parameters do not support cross‑brand usage.
• Q: Is IS200EPSMG1ABB available for brand‑new power‑plant construction projects?
  A: This legacy GE module has reached end‑of‑life. Only surplus, tested and refurbished spare units are offered for existing‑site maintenance work.
