Brief Product Description

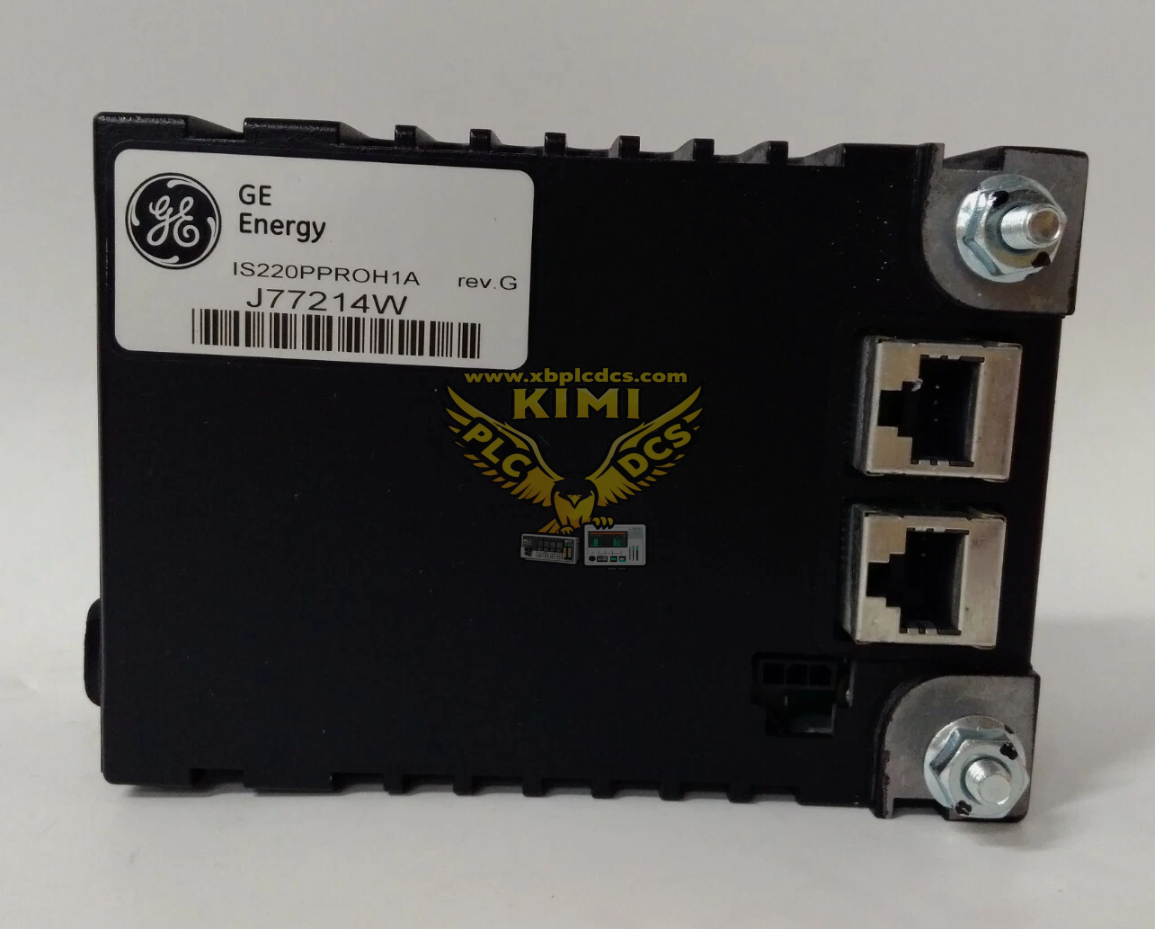

The IS220PPROH1A is a dedicated protection I/O module for GE Mark VIe Speedtronic turbine control systems. It collects CT, VT, vibration and displacement sensor signals to execute fast safety protection logic for gas and steam turbines. Equipped with dual redundant Ethernet, conformal coated circuit board and 24VDC rack power supply, it supports hot-standby redundancy to avoid single-point failure, matched with TPRO terminal boards for field sensor wiring.

Core Product Functions

• Collect AC signals from CT/VT for generator overcurrent, overvoltage and unbalance protection
• Receive vibration and axial displacement analog signals from turbine bearing sensors
• High-speed protection logic calculation to trigger turbine emergency trip once thresholds are exceeded
• Dual redundant Ethernet communication with Mark VIe UCS main controllers
• Hot standby redundant switchover without interruption of safety protection functions
• Built-in signal isolation, surge protection and channel open/short-circuit self-diagnosis
• Record timestamps for all alarms and trip events for post-failure analysis
• Front panel LED indicators for power, network link and hardware fault status

Application Scenarios

• Combined cycle power plant gas turbine & generator safety control
• Conventional steam turbine generator electrical and mechanical protection racks
• Offshore oil & gas platform distributed turbine generator control systems
• Industrial cogeneration waste heat turbine safety monitoring
• Petrochemical compressor drive turbine protection cabinets
• Maintenance spare parts replacement for old Mark VIe control units

FAQ (Frequently Asked Questions)

• Q: Fault light is red after power-on and no signal upload to controller?
  A: Check loose module installation, unstable 24V power, short-circuit field wiring or inconsistent firmware versions.
• Q: Vibration channel keeps reporting open circuit alarm?
  A: Check loose terminals, broken sensor cables or reversed wiring polarity on TPRO board.
• Q: Can I hot-swap this module when the rack is powered?
  A: Only standby redundant modules support hot swap; active running modules must be replaced after power cut-off.
• Q: Redundant switchover fails when primary module fails?
  A: Check dual Ethernet cables, synchronize firmware of primary and backup modules, reconfigure redundancy parameters via Toolbox software.
• Q: Is this model still produced for new power plant projects?
  A: This legacy module is discontinued; only surplus and refurbished spare parts are supplied for maintenance of existing units.
