- Brand：ABB
- Part number：PFCL201C-5KN 3BSE027070R5
- Weight：6.49kg
- HS CODE：8479909090
- RMB Market price：20000-30000
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com

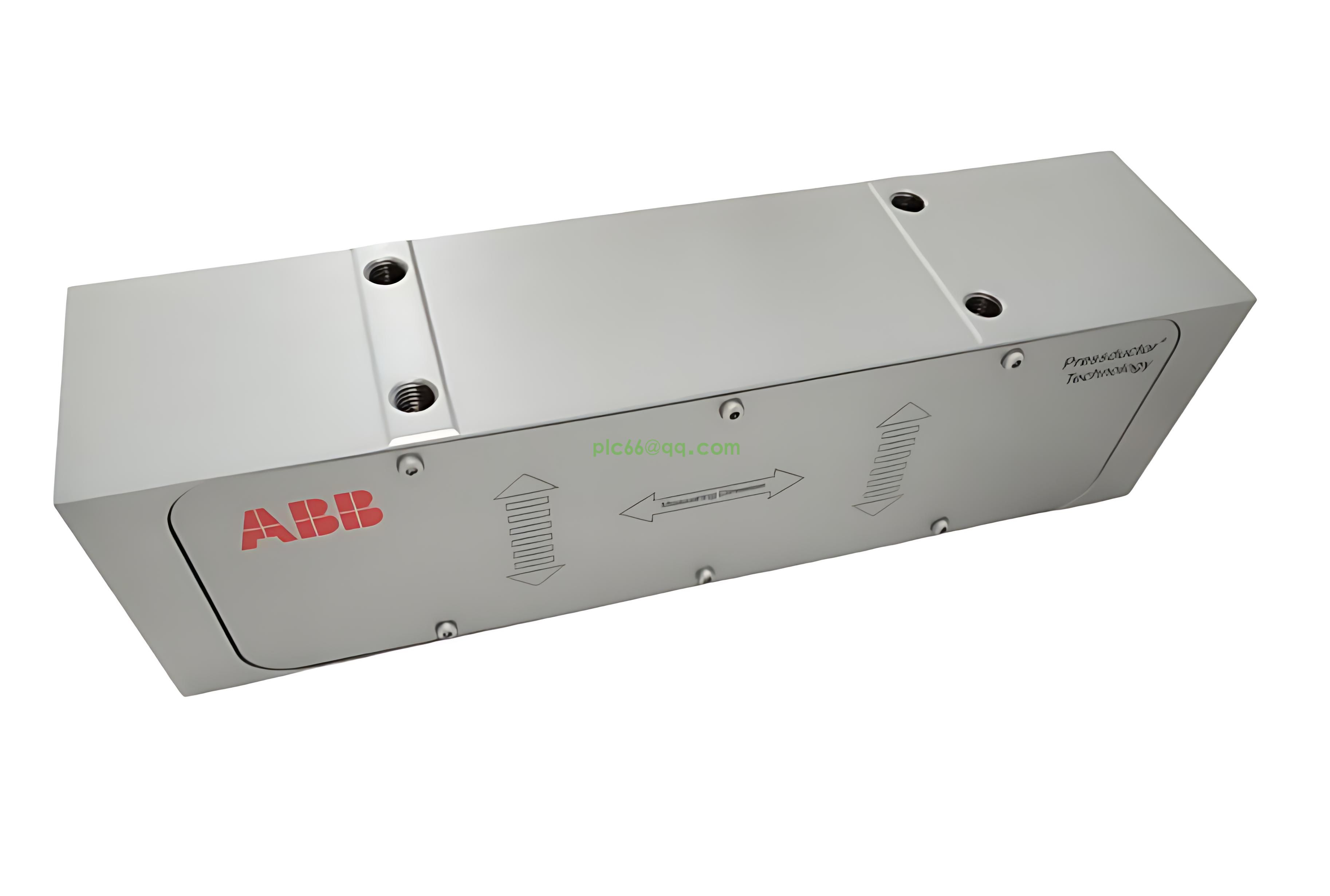

The ABB PFCL201C-5KN Pressductor PillowBlock Load Cell (part number 3BSE027070R5) is a highly durable and precise force sensor specifically engineered for vertical strip tension measurement in various industrial processes,
where consistent and accurate material tension is vital for product quality and operational efficiency.
This load cell operates on ABB's unique Pressductor® Technology, which leverages the magnetoelastic effect,
allowing it to measure force by sensing changes in magnetic fields within a solid stainless steel body rather than relying on physical deformation like traditional strain gauge load cells.
This distinct operating principle provides the PFCL201C-5KN with exceptional robustness, high tolerance to overloads, shocks, and impacts, and excellent resistance to dust, moisture, and corrosion,
ensuring reliable performance even in harsh industrial environments. With a nominal load capacity of 5 kilonewtons, this "PillowBlock" design allows for direct installation under roll bearings,
accurately measuring the vertical force component that directly correlates to the material's tension.
The "C" in its designation typically indicates a specific cylindrical plug connector for the cable, simplifying installation.
Recommended products and services
PFCL201CE-50kN 3BSE006699D0005 3BSX802939-108 Pressductor PillowBlock Load cells
ABB PFCL201C-20KN 3BSE023409R20 Pressductor PillowBlock Load cells
PFCL201C-10kN 3BSE027070R10 Pressductor PillowBlock Load cells
You can click on (ABB ) to visit the official website for more product information.
If you want to purchase, you can contact YMGK's official customer service
For the relevant manual, please click to download and learn about the specific parameters
Data
| Properties | |||||
| Nominal load | |||||
| (rated capacity) | kN | 5.0 | 10.0 | 20.0 | 50.0 |
| Lbs. | 1125 | 2250 | 4500 | 11250 | |
| Extended load | kN | 7.5 | 15.0 | 30.0 | 75.0 |
| Lbs. | 1688 | 3375 | 6750 | 16875 | |
| Permitted load | |||||
| Transverse direction | kN | 2.5 | 5.0 | 10.0 | 25.0 |
| (horizontal) h=300 mm | Lbs. | 563 | 1125 | 2250 | 5625 |
| Overload capacity | |||||
| Measurement direction | |||||
| (vertical) | kN | 50.0 | 100.0 | 200.0 | 500.0 |
| Lbs. | 11250 | 22500 | 45000 | 112500 | |
| Transverse direction | |||||
| (horizontal) h=300 mm | kN | 12.5 | 25.0 | 50.0 | 125.0 |
| Lbs. | 2815 | 5625 | 11250 | 28125 | |
| Deflection | mm | 0.02 | 0.02 | 0.02 | 0.02 |
| 1/1000 inch | 0.8 | 0.8 | 0.8 | 0.8 | |
| Spring constant | kN/mm | 250 | 500 | 1000 | 2500 |
| 1000 Lbs./inch | 1430 | 2860 | 5720 | 14300 |
