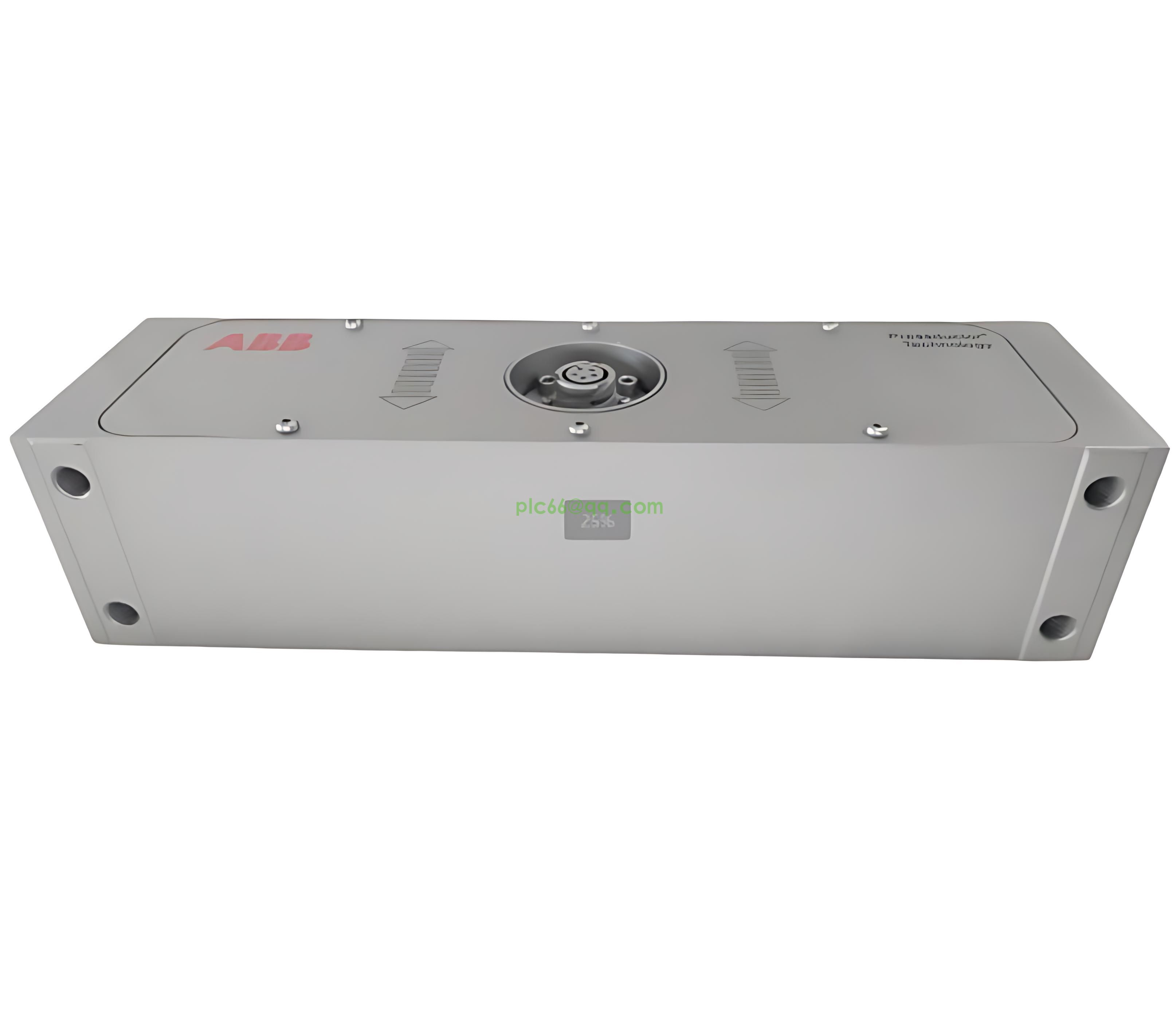

The ABB PFCL201C-20KN Pressductor PillowBlock Load Cell (with part number 3BSE023409R20) is a highly specialized and robust force sensor designed for strip tension measurement in demanding industrial environments.

It's an integral component of ABB's advanced strip tension measurement systems, commonly found in industries like paper, metals (e.g., rolling mills, galvanizing lines), and textiles.

This load cell operates on ABB's unique Pressductor® Technology, which leverages the magnetoelastic effect. Unlike traditional load cells that rely on strain gauges and physical deformation,

the Pressductor principle measures changes in magnetic fields within a specially designed stainless steel body when a force is applied. This inherent design provides several significant advantages:

• Exceptional Robustness: It offers very high tolerance to overloads, shocks, and impacts, making it extremely durable in harsh operational conditions.

• High Immunity to Environmental Factors: Its solid stainless steel construction and sealed internal components make it highly resistant to dust, moisture, and corrosion.

• Superior Accuracy and Reliability: It delivers precise and consistent force measurements, crucial for maintaining optimal process control and product quality.

• Vertical Force Measurement: The "PillowBlock" design typically means it's installed directly under the roll bearings to accurately measure the vertical force component, which is directly proportional to the tension in the strip or web material passing over the roll.

The "20KN" in its designation indicates its nominal load capacity of 20 kilonewtons (approximately 2 metric tons of force). The "C" variant often refers to a specific connection type, typically with a cylindrical plug connector for the cable.

This load cell is essential for ensuring stable material handling, preventing breaks, and improving the overall efficiency and quality of production lines.
