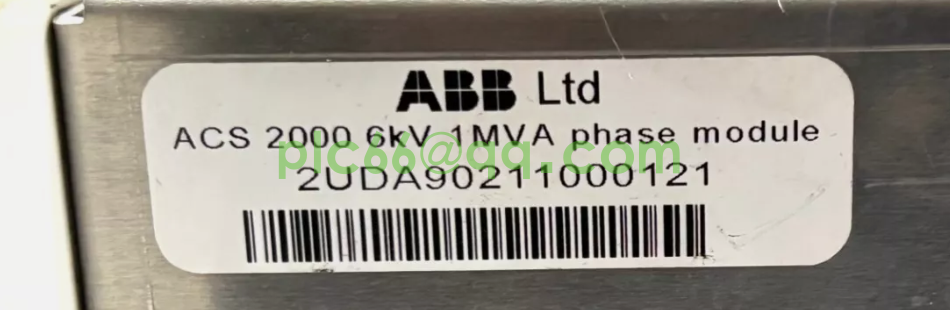

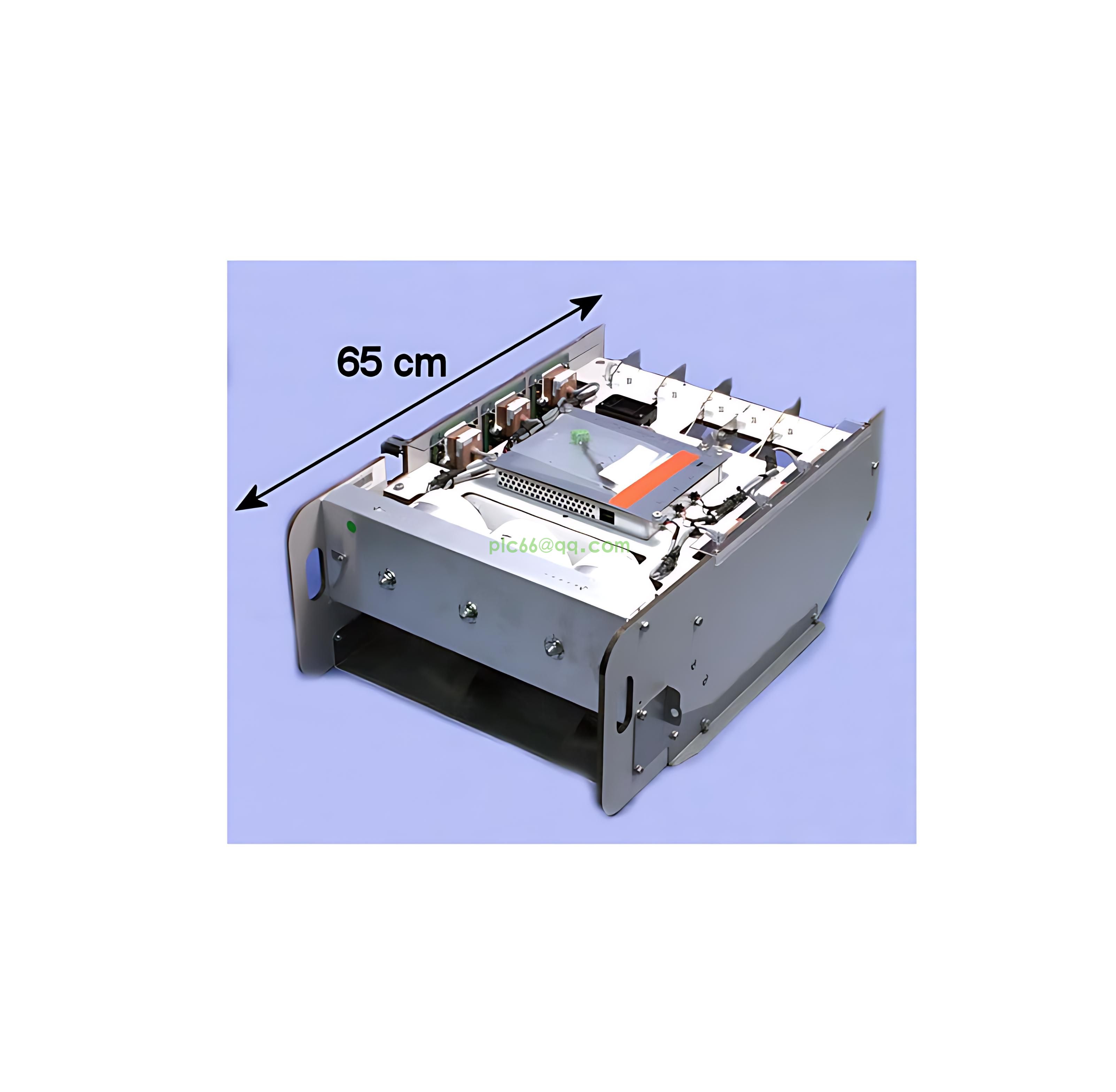

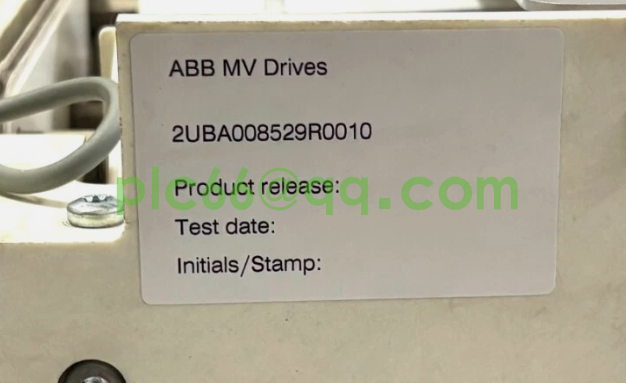

The ABB ACS2000 PBAE10 A01 6k100 phase module (part numbers 3BHB024711R0020 and 2UBA008529R0010) is a key component of the ABB ACS2000 medium-voltage frequency converter.

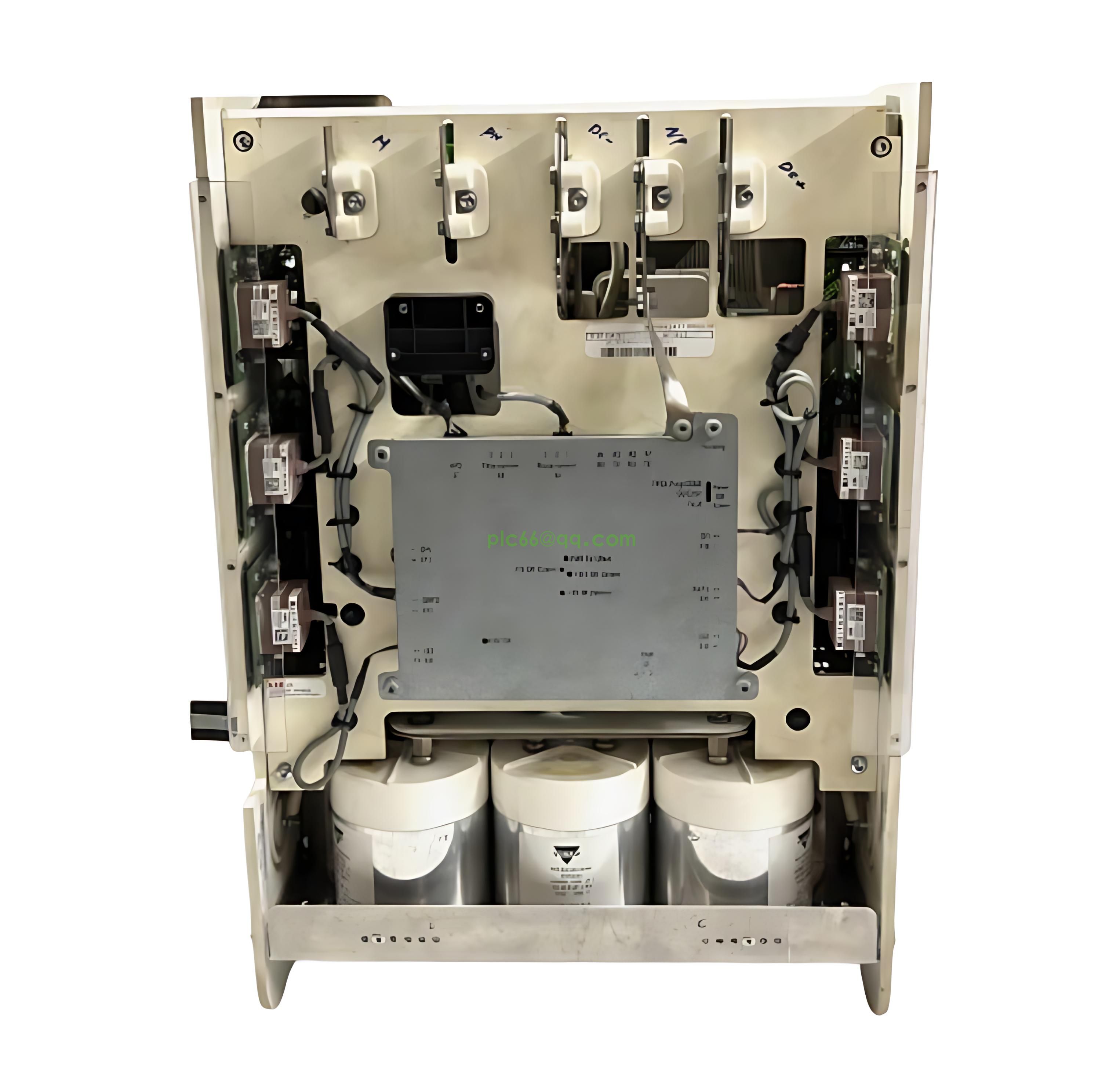

This module is a phase module that contains three 47µF capacitors, demonstrating its role in the power conversion and filtering stages of the frequency converter. "

6k100" refers to the voltage level (6 kV) and the power rating or specific design in the ACS2000 series (such as a 1 MVA inverter).

产品ID:3BHB024711R0020

ABB型号名称:PBA E10 A01 : 6k100

目录说明:PBA E10 A01 : 6k100; PHASE MODULE 3X47UF

详细描述:PBA E10 A01 : 6k100

更换产品ID（OLD）:

3BHB034326R0010

EXC3BHB024711R0010

2UBA004079R0010

3BHB024711R0001

EXC3BHB024711R0020

3BHB024711R0010

2UBA001210R0010

技术信息:

All replaced modules are mechanically identical with
3BHB024711R0020.
If the original phase module is 3BHB024711R0010 and the
drive has sine output filter or the drive is AFE (active
front end) type, please order interface cable
3BHB036579R0001 too.

Phase module contains software/firmware that might be
required to be programmed on site. Check details with a
certified FSE.

In a frequency converter (VFD) like the ACS2000, the phase module is crucial for converting the input AC power into a controlled AC output to precisely manage the motor's speed and torque.

They usually handle rectification and inversion processes and often contain large capacitors for smoothing the DC bus.

This specific module, with its 3x47µF capacitor, plays a crucial role in filtering electrical noise and storing energy, ensuring the stability of the DC bus and contributing to the overall efficiency and performance of the medium-voltage frequency converter.

 It is a heavy-duty industrial-grade component, specifically designed for reliability in demanding applications.
