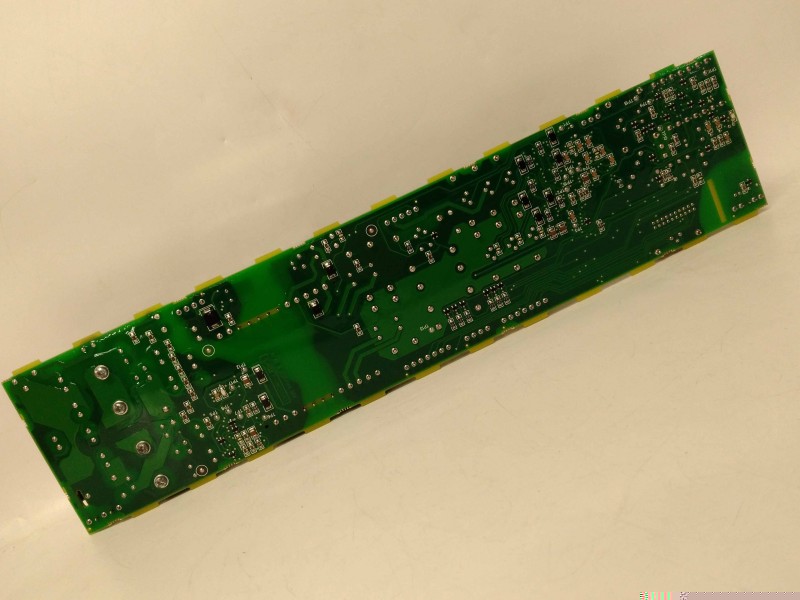

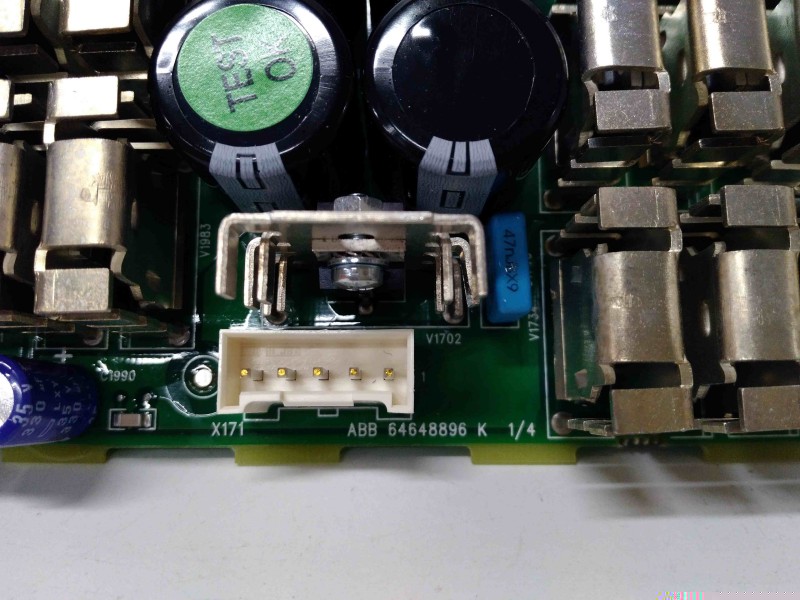

ABB DSMB-01C 64691929
- Part number：ABB DSMB-01C 64691929
- Product Origin：Sweden
- HS CODE：8443919090
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
ABB DSMB-01C Digital I/O Module
Technical Specification Document (Intermediate Version)
1. Basic Product Information
Part Number: DSMB-01C
Manufacturer: ABB Industrial Automation
Product Category: Digital Signal Processing Module
Compatibility: ABB ACS800/ACS600 Drive Systems
Certification: CE, UL, RoHS Compliant
2. Technical Parameters
Supply Voltage: 24 VDC (±10%)
Power Consumption: ≤ 5 W
Digital Inputs: 16 Channels (Opto-isolated)
Digital Outputs: 8 Channels (Relay Output)
Input Signal Range: 0-24 VDC
Output Load Capacity: 250 VAC / 30 VDC, 5 A
Operating Temperature: -10°C to +60°C
Storage Temperature: -40°C to +85°C
Humidity Resistance: 5-95% RH (Non-condensing)
Communication Protocol: PROFIBUS DP / Modbus RTU
Dimensions (L×W×H): 140 × 100 × 40 mm
Protection Class: IP20 (Front), IP54 (Enclosure)
3. Core Functions
• Real-time acquisition and processing of digital signals from drive systems
• Fault detection and alarm signal output for drive operation anomalies
• Seamless communication with ABB master control units
• Self-diagnostic function for module status monitoring
• Configurable input/output logic via ABB DriveStudio software
4. Installation & Operation
Mounting: DIN rail mounting (EN 60715) on control cabinet panel
Wiring: Use shielded cables for signal lines; separate power and signal cables
Commissioning: Parameter configuration via local keypad or PC software
Operation: No manual intervention required during normal operation
5. Warnings & Precautions
• Disconnect all power sources before installing or replacing the module
• Do not expose the module to extreme temperatures, moisture, or corrosive gases
• Only ABB-certified personnel are authorized to perform maintenance or repairs
• Regular inspection (every 6 months) is recommended to ensure optimal performance
• Unauthorized modification of module parameters may cause equipment malfunction
