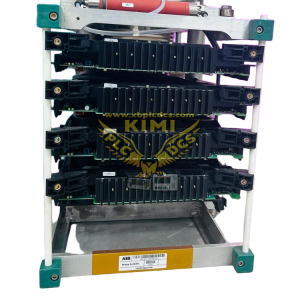

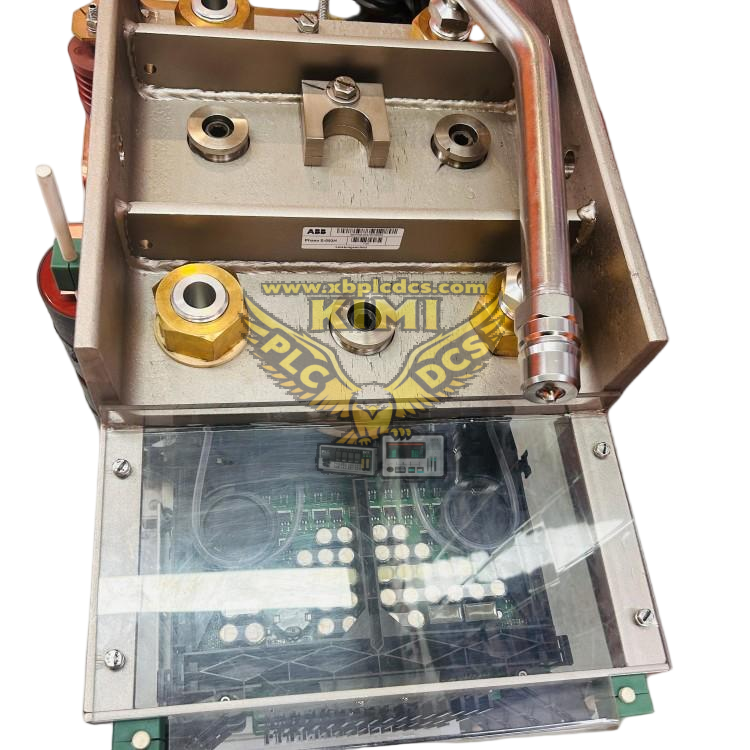

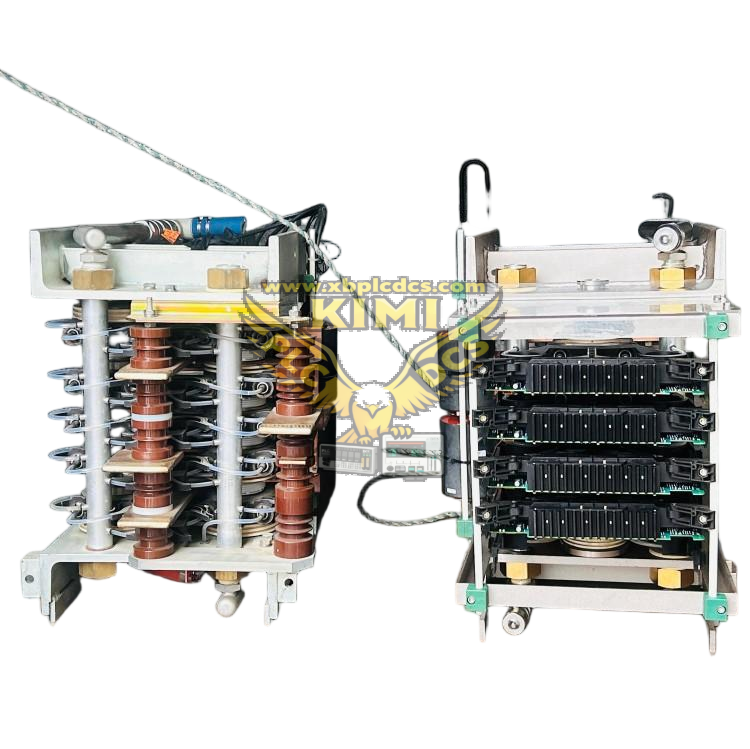

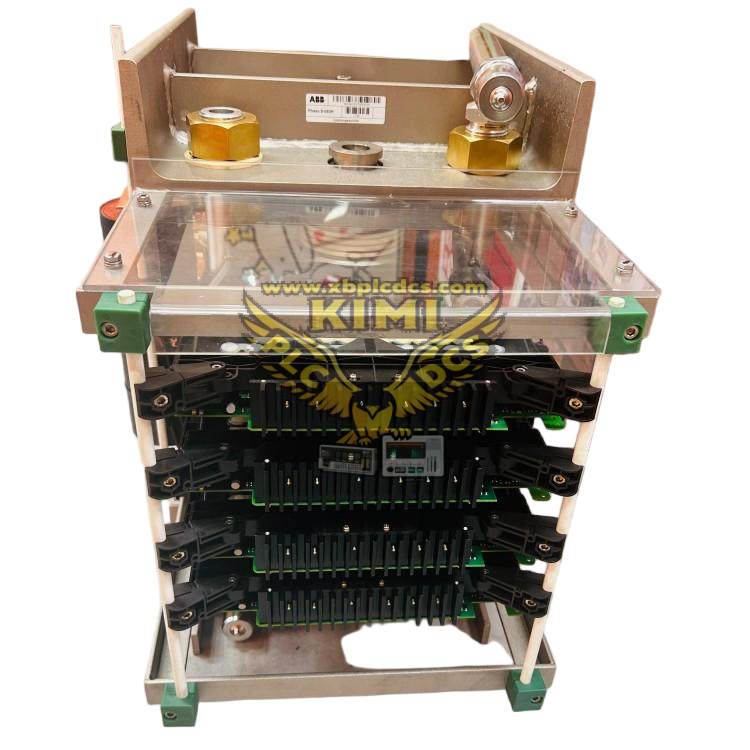

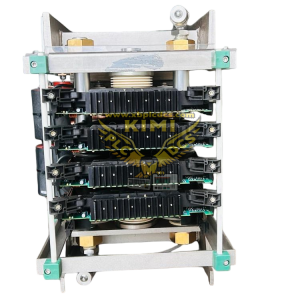

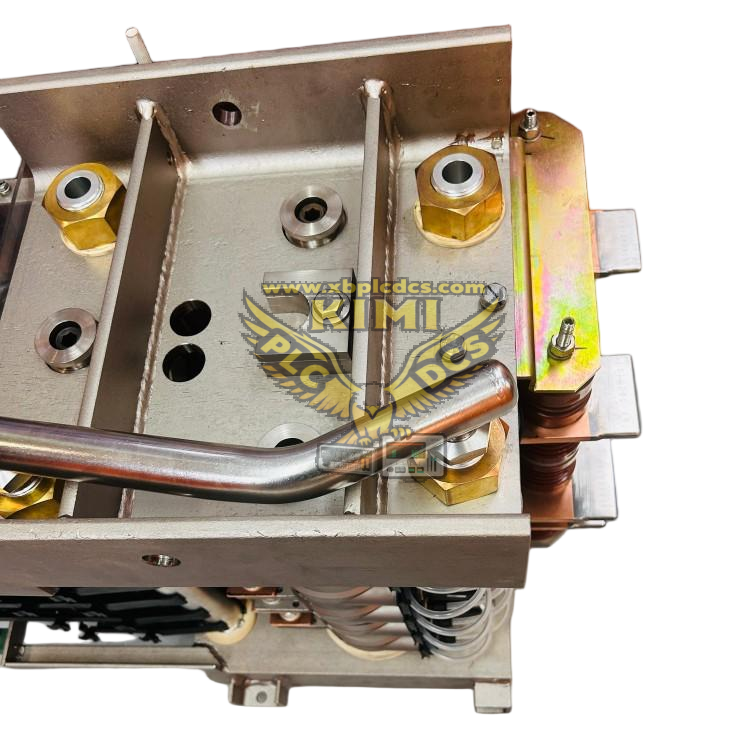

ABB ACS6000 S-093H 3BHB009885R0004 9 MV High-Impulse Phase Module

Product Description

The ABB S-093H 3BHB009885R0004 is a 9 MV high-impulse Phase Module tailored for the ACS6000 medium-voltage (MV) drive series, built on Modular Multilevel Converter (MMC) technology and IGCT semiconductors for efficient, low-harmonic power conversion. It integrates precision gate drivers, real-time thermal monitoring, and redundant cooling interfaces (forced air/liquid) to excel in harsh industrial settings. Featuring a modular hot-swap design for maintenance without full drive shutdown, it complies with IEC 61800-5-1 safety standards, operates at -10°C to +40°C ambient temperatures, and offers IP20 front-panel protection, ensuring long-term stability in mission-critical motor control applications.

Key Functions

The S-093H 3BHB009885R0004 delivers core 9 MV high-impulse drive phase control capabilities: High-precision phase voltage/current regulation via MMC technology for smooth motor speed/torque control and IEEE 519 grid harmonic compliance; 9 MV high-impulse operation to handle dynamic heavy-industry loads; Hot-swap functionality enabling module replacement without system downtime; Real-time thermal/overcurrent/overvoltage protection to safeguard IGCT semiconductors; Seamless integration with ACS6000 controllers for centralized diagnostics and monitoring; Redundant cooling compatibility (forced air/liquid) for flexible deployment; Comprehensive fault detection with alarm signaling and time-stamped event logging for predictive maintenance; Modular scalability to support drive system capacity expansion.

Application Scenarios

The S-093H 3BHB009885R0004 excels in 9 MV high-impulse motor control across mission-critical industrial sectors: Metallurgy (rolling mill main drives for precise speed synchronization and quality control); Power generation (boiler feed pumps, induced draft fans, turbine auxiliary drives); Mining (large conveyor belts and hoist motor systems for enhanced energy efficiency and uptime); Petrochemical refining (high-power compressors and pumps in distillation/cracking units); Pulp & paper (paper machine main drives and pulp mill process pumps); Marine (ship propulsion and thruster motor drives demanding dynamic load handling).

Technical Specifications
