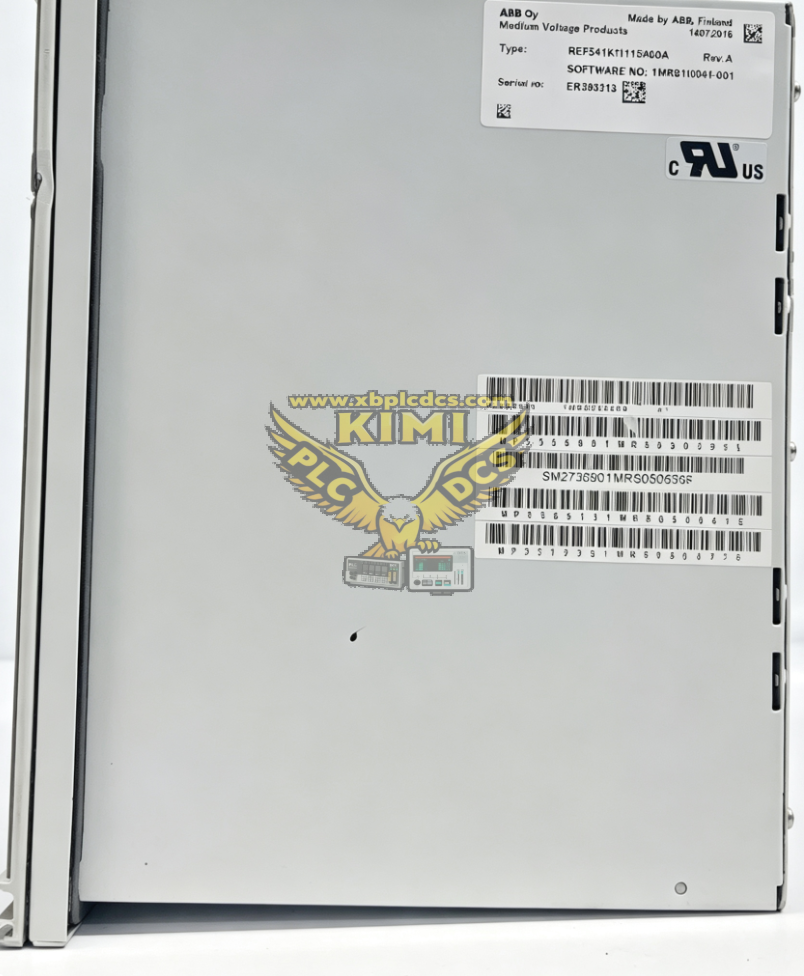

ABB REF541KM115AAAA Numerical Feeder Terminal

Product Description

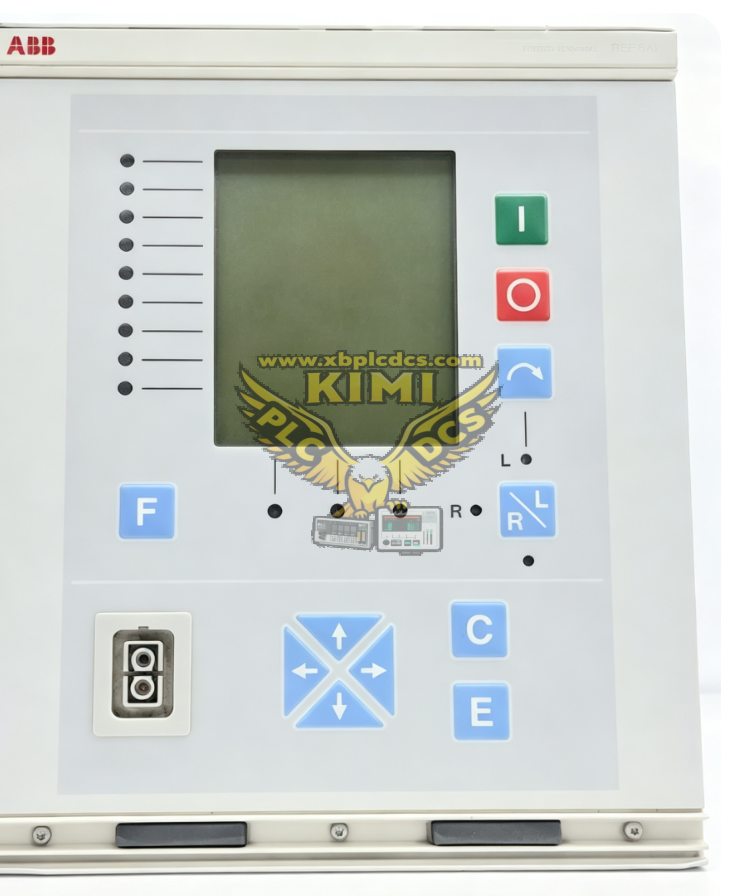

REF541KM115AAAA belongs to ABB REF541 series numerical feeder protection terminal, it is an integrated bay‑level protection, control, measurement and monitoring device for medium‑voltage switchgear. Equipped with graphic local HMI, it supports 15 binary inputs and 12 relay outputs, works with conventional CT/VT transformers. This legacy protection unit supports multiple neutral‑grounded network types, integrates built‑in PLC logic function, and provides rich communication interfaces for substation automation systems. Widely used in power plant and industrial distribution substation, it is a discontinued legacy product for maintenance‑oriented spare‑part replacement scenarios.

Product Functions

• Multi‑stage non‑directional / directional overcurrent and earth‑fault protection for medium‑voltage feeders.
• Over‑voltage, under‑voltage, residual‑voltage protection, thermal overload protection, auto‑reclosing and CBFP circuit‑breaker failure protection function.
• Accurate measurement of phase current, phase‑phase / phase‑neutral voltage, frequency, active/reactive power, energy and harmonic distortion THD data.
• Local and remote bay control, synchro‑check function, circuit‑breaker disconnector interlock and status monitoring.
• Built‑in programmable PLC logic to realize customized bay‑level sequence interlock logic without extra auxiliary relay.
• Fault locator function for short‑circuit fault distance calculation, timestamped event and disturbance record storage.
• Multiple communication protocols: SPA‑Bus, LON, IEC‑60870‑5‑103, DNP3.0; IEC‑61850 available via external SPA‑ZC400 adapter.
• Circuit‑breaker condition monitoring, trip‑circuit supervision and complete device self‑diagnosis function.

Application Scenarios

• Medium‑voltage feeder protection and bay control for utility substation single‑busbar and double‑busbar switchgear.
• Motor protection and shunt capacitor‑bank protection in industrial power distribution system.
• Power‑plant auxiliary medium‑voltage cabinet protection, control and measurement application.
• Retrofit, overhaul and spare‑part replacement of existing ABB REF541 legacy protection installations.
• Distribution automation bay‑level device for isolated‑neutral, resonant‑grounded and resistance‑grounded MV power networks.

Common Problems & Troubleshooting

• Device no power, HMI screen dark: Check auxiliary AC/DC power‑supply input voltage, terminal wiring and fuse; verify rated auxiliary power range matches REF541KM115AAAA variant setting.
• Protection false tripping or nuisance operation: Re‑check protection setting parameters; inspect CT secondary circuit short‑circuit / open‑circuit risk; filter transient interference, verify earth‑fault pickup threshold setting for local network type.
• Measurement value abnormal or offset: Check CT / VT secondary wiring polarity and connection; run device built‑in measurement diagnostic test; inspect external transformer degradation.
• Communication link failure: Verify bus cable wiring and terminal resistance setting; confirm protocol configuration matching SCADA host; check external communication adapter SPA‑ZC status if IEC‑61850 used.
• Cannot perform local / remote control command: Check binary‑input status of interlock condition; verify remote‑local mode switch status; inspect relay output contact burnout caused by over‑current.
• Self‑diagnosis internal fault alarm: Check cabinet temperature and humidity; perform device power‑cycle reset; download complete configuration again; replace unit if hardware permanent damage occurs.
• Event log cannot save or timestamp error: Check time‑synchronization signal input; verify system clock parameter; inspect internal memory fault for legacy aging unit.
