IS220PRTDH1A | 363A4940CSP6 RTD Input I/O Pack--KIMI

Part number：IS220PRTDH1A 363A4940CSP6
Product Origin：America
HS CODE：8537109021
Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

GE IS220PRTDH1A | 363A4940CSP6 RTD Input I/O Pack (Mark VIe)

High-Precision RTD Temperature Sensing Module for GE Mark VIe Speedtronic Turbine Control

1. Product Overview

The GE IS220PRTDH1A (363A4940CSP6) is an 8-channel RTD (Resistance Temperature Detector) input I/O pack designed for seamless integration with GE Mark VIe Speedtronic turbine control systems, delivering reliable temperature signal acquisition for gas/steam turbine control and critical industrial automation applications. It supports 4-wire/3-wire/2-wire configurable RTD connections (Pt100, Pt1000, Ni120, Cu100) with ±0.1°C measurement accuracy, ensuring precise monitoring of turbine bearings, exhaust gas, and lube oil systems. The module features a 37-pin DC connector for terminal board communication, dual Ethernet ports (10/100BASE-T) for system integration, and front-panel LED indicators for power, communication, and channel faults. With 250V AC channel isolation to prevent cross-interference in harsh industrial environments, a modular design with DIN-rail mounting and pluggable terminal blocks simplifies installation and maintenance. A wide operating temperature range (-20°C to +60°C) and IP20 protection make it ideal for power generation, oil & gas, and petrochemical applications requiring robust temperature monitoring and control.

IS220PRTDH1A 363A4940CSP6.jpg

Key Specifications

• Manufacturer: GE

• Model: IS220PRTDH1A (363A4940CSP6 RTD Input I/O Pack)

• System Compatibility: GE Mark VIe Speedtronic Turbine Control System

• RTD Channels: 8 Configurable Channels (4/3/2-Wire)

• RTD Compatibility: Pt100, Pt1000, Ni120, Cu100 (IEC 60751 Compliant)

• Accuracy: ±0.1°C (at 0°C), ±0.2°C (Full Range: -200°C to +850°C)

• Isolation: 250V AC Channel-to-Channel, 500V AC Channel-to-Ground

• Communication: Dual 10/100BASE-T Ethernet, 37-Pin DC Terminal Board Connector

• LED Indicators: Power (PWR), Communication (COM), Channel Fault (CH1-CH8)

• Power Input: 24V DC (±10%),<10W Power Consumption

• Mounting: DIN-Rail (IP20 Protection), Dimensions: 167×145×85mm, Weight: ~0.8kg

• Operating Temperature: -20°C to +60°C, 5%–95% RH (non-condensing)

• Certifications: UL 508, IEC 61010-1, CE

IS220PRTDH1A 363A4940CSP6 -2.jpg

2. Core Features

• 8-Channel RTD Input: Configurable 4/3/2-wire connection for versatile temperature measurement in turbine systems.

• High Accuracy: ±0.1°C precision ensures reliable temperature monitoring for critical turbine components.

• Channel Isolation: 250V AC isolation prevents signal interference in high-noise industrial environments.

• Dual Ethernet: Two 10/100BASE-T ports for seamless integration with Mark VIe controllers.

• Status Monitoring: Front-panel LEDs for power, communication, and channel faults enable quick troubleshooting.

• Plug-and-Play Design: Pluggable terminal blocks and 37-pin connector simplify installation and maintenance.

• Robust Construction: DIN-rail mounting (IP20), wide temperature range, and industrial-grade components for durability.

IS220PRTDH1A 363A4940CSP6 -3.jpg

YMGK Purchase Information

This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.

One-Stop Global Industrial Product Procurement

Sales Manager: KI MI

WeChat: 18059884790

WHATSAPP: +86 18059884790 (Click to add)

Email: plc66@qq.com

Global Inventory: 121 shared inventories worldwide, enabling '
direct procurement from overseas warehouses for faster delivery.
Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage: Serving clients across United States, Germany, Japan,
South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia,
Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality: All items are brand new and original.
Spare parts include a 1-year warranty, and all products are tested and certified.
Discounts: Contact us for bulk-order discounts.
We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.

For additional inquiries, reach out to us at any time.

All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders.

3. Typical Applications

• Turbine Control: Temperature monitoring of bearings, exhaust gas, lube oil, and combustion chambers in gas/steam turbines.

• Power Generation: Boiler tube temperature, generator winding temperature, and feedwater heater control in thermal/hydropower plants.

• Oil & Gas: Pipeline temperature monitoring, compressor bearing temperature, and separator temperature control in refineries.

• Petrochemical: Reactor temperature, catalyst bed temperature, and heat exchanger temperature control in chemical plants.

• Manufacturing: Furnace temperature monitoring, mold temperature control, and annealing process temperature in metalworking.

• System Retrofits: Replacement of aging RTD input modules in Mark VIe systems to maintain temperature control reliability.

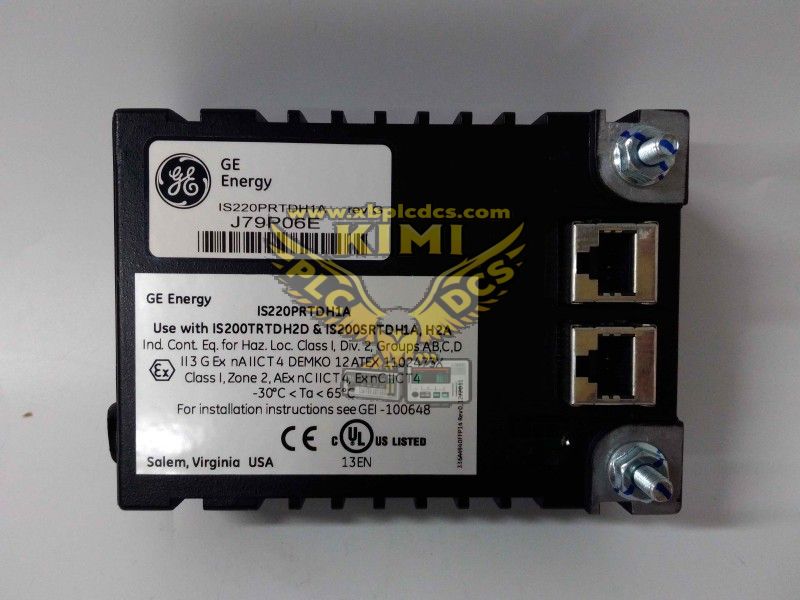

IS220PRTDH1A 363A4940CSP6 -1.jpg

4. Installation & Maintenance

Installation: Mount on standard DIN-rail; connect 24V DC power. Wire RTD sensors to pluggable terminals (follow 4/3/2-wire configuration). Connect 37-pin DC connector to terminal board; verify LED status (steady green for normal operation).

Maintenance: Perform quarterly checks of LED status and terminal integrity. Use Mark VIe diagnostic tools for RTD channel testing. Replace pluggable terminals if damaged; clean connectors to prevent signal degradation.

Fault Diagnosis: Flashing red LED indicates channel fault or communication loss; retrieve error codes via Mark VIe HMI. Check RTD wiring (open/short circuit), terminal connections, and Ethernet network settings.

Technical Document | GE IS220PRTDH1A (363A4940CSP6) | RTD Input I/O Pack for Mark VIe Speedtronic
