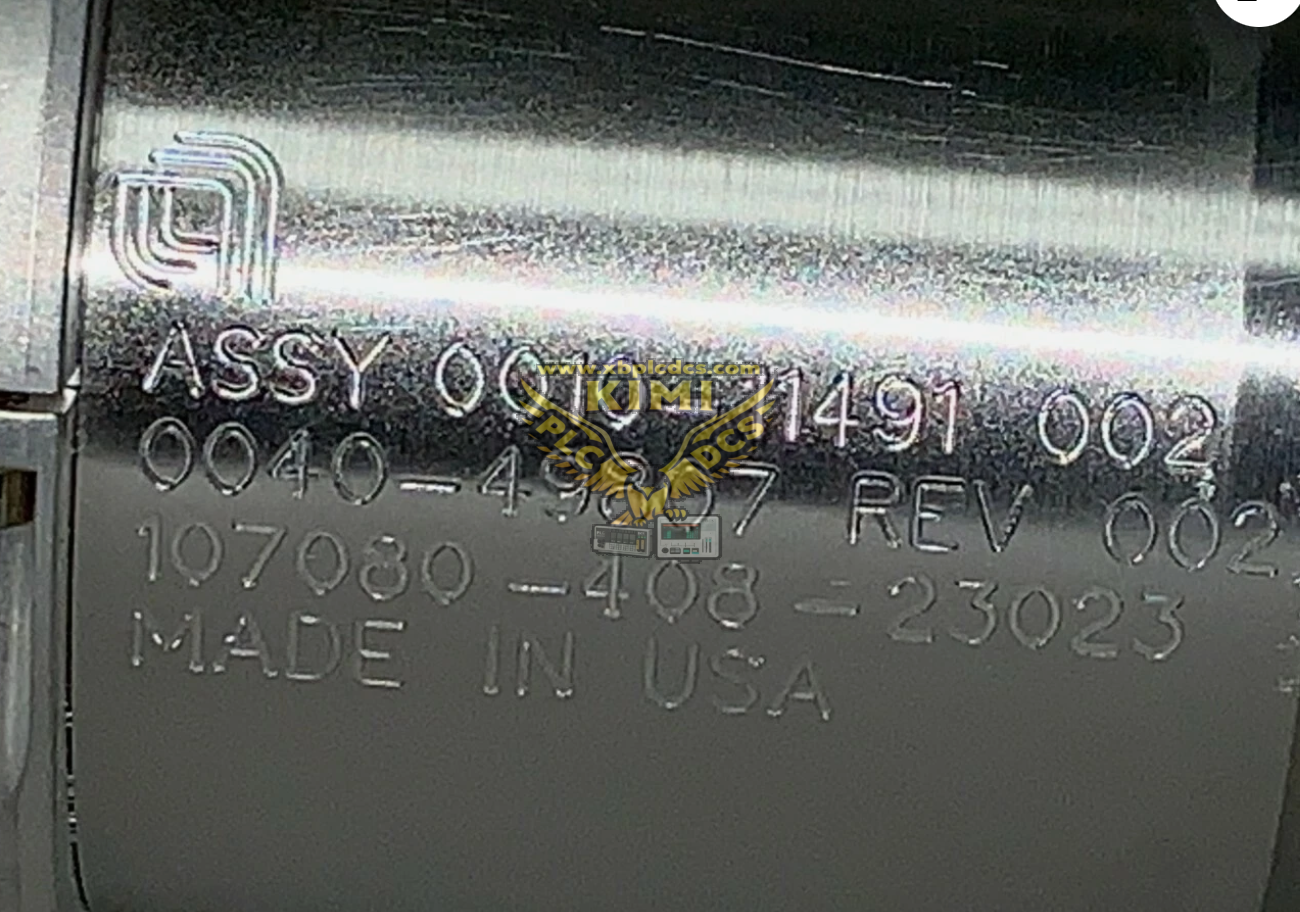

Applied Materials 0010‑56222 Dual‑Zone Ceramic Heater Assembly

Product Description

0010‑56222 is a dual‑zone ceramic heater chuck assembly manufactured by Applied Materials for 300mm semiconductor wafer processing chambers. Constructed from high‑purity ceramic material, it integrates two independent heating zones and embedded RTD temperature sensors, providing precise, uniform wafer temperature control for etch and deposition vacuum process chambers. It is a critical consumable‑grade core component inside AMAT semiconductor process tools, operating under high‑vacuum, high‑temperature plasma environment.

Product Functions

• Dual‑zone independent heating control to achieve excellent across‑wafer temperature uniformity for 300‑mm silicon wafers.
• Embedded RTD thermal sensors for real‑time temperature feedback to chamber thermal controller.
• Ceramic chuck body provides electrostatic clamping function to hold wafer firmly during vacuum processing.
• Supports high‑temperature stable operation under plasma and high‑vacuum chamber conditions.
• Isolate process plasma from underlying hardware, resist chemical corrosion by process gases.
• Transfer precise thermal set‑point from system controller to wafer surface for consistent etch or thin‑film deposition performance.
• Deliver temperature‑related fault signals for chamber interlock protection upon heater or sensor failure.

Application Scenarios

• Applied Materials semiconductor etch processing chambers for 300mm silicon wafer manufacturing line.
• Thin‑film deposition vacuum chambers requiring dual‑zone temperature tuning for wafer‑to‑wafer repeatability.
• Front‑end fab production for logic chip and memory‑device mass production equipment.
• Semiconductor equipment preventive maintenance, heater replacement and chamber PM overhaul projects.
• Spare‑part stocking and retrofit for existing AMAT process tool installations.

Common Problems & Troubleshooting

• Chamber reports heater zone open‑circuit fault: Inspect heater internal heating element burnout; check vacuum feed‑through connector pin integrity; replace complete heater assembly if ceramic internal circuit damaged.
• Poor wafer temperature uniformity, process drift: Verify dual‑zone PID parameter tuning; inspect ceramic surface contamination, coating erosion or micro‑cracks caused by plasma bombardment.
• RTD temperature reading abnormal or stuck value: Check sensor feed‑through wiring; confirm internal RTD element degradation inside ceramic heater body.
• Electrostatic chuck cannot hold wafer: Inspect ceramic surface dielectric layer wear; verify ESC bias voltage supply and leakage current.
• Intermittent temperature fluctuation during plasma processing: Check vacuum feed‑through connector thermal expansion loose contact; eliminate cable vibration inside chamber cabinet.
• Ceramic surface crack or particle generation: Stop equipment operation immediately; physical damage to ceramic heater will generate heavy particle contamination to wafer, full replacement is required.
• Heater over‑temperature interlock triggered: Check cooling gas back‑side pressure and flow loop; verify thermal control unit configuration parameters.
