Triconex 8120X Main Chassis for Tricon CX TMR Safety Instrumented System

Product Description

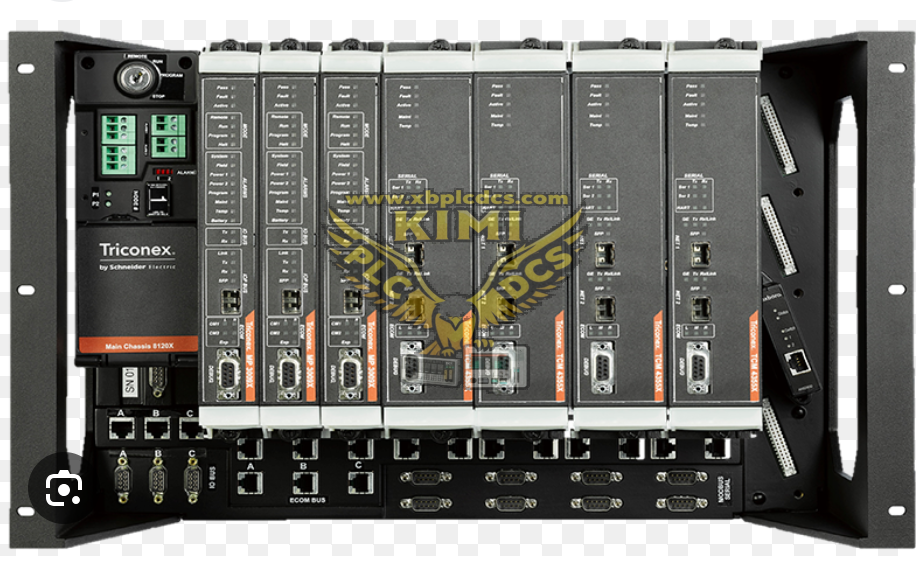

8120X is the main rack chassis of Schneider Tricon‑CX triple‑modular‑redundant (TMR) safety instrumented system (SIS). It provides backplane bus, mechanical slot positions and inter‑chassis communication interfaces for three 3009X main processor modules and up to four communication modules configured as two redundant pairs. It connects to 8131X expansion I/O chassis via triplicated RS‑485 links and supports Foxboro DCS time‑sync interface for DCS integration. This 19‑inch industrial rack requires external redundant 24 VDC power supply, designed for SIL3 safety‑critical process applications with wide operating temperature range and robust anti‑vibration mechanical construction.

Product Features

• TMR‑compliant main chassis supporting triple 3009X processor modules and 4 communication slots for dual‑redundant communication groups
• Triplicated RS‑485 inter‑chassis ports for connection to 8131X I/O expansion chassis, maintaining triple‑path fault‑tolerant data transmission
• Backplane bus implements hardware voting signal routing for Tricon CX safety logic execution
• Foxboro DCS time‑synchronization interface for time‑stamped event logging across plant control system
• Hot‑swap capable slot design allows online replacement of processor and communication modules without system shutdown
• Built‑in chassis‑level diagnostic circuit reporting slot mismatch, missing module and backplane communication faults
• 19‑inch standard rack‑mount form‑factor for control cabinet installation; wide operating temperature‑40 °C ~ +70 °C
• Requires redundant external 24 VDC power input; backplane distributes power to all plugged‑in modules
• Compliant with SIL3 safety integrity level for process safety protection applications
• Optimized ventilation layout for heat dissipation under fully‑populated high‑density module configuration

Application Scenarios

• Safety instrumented system main chassis for petrochemical and refinery emergency shutdown (ESD) systems
• High‑availability burner management system (BMS) for power‑plant boiler and gas‑turbine units
• Oil & gas on‑shore and offshore platform process safety control requiring SIL3 fault‑tolerant architecture
• Chemical plant critical process interlock and safety protection control cabinet
• Integration with DCS systems for large‑scale distributed process safety management
• Critical safety control where online module maintenance and zero single‑point‑of‑failure are mandatory

Common Problems & Troubleshooting

• System reports chassis / backplane fault: Check all modules are fully seated and locked into slots; inspect for bent backplane pins; verify chassis configuration matches application project hardware layout.
• Cannot communicate with 8131X expansion chassis: Inspect triplicated RS‑485 inter‑chassis cable wiring; confirm no reversed cable pairs; check termination status; replace faulty inter‑chassis cable assembly.
• Processor module cannot boot after insertion: Confirm three 3009X processor modules are correctly installed; verify redundant 24 VDC input voltage and terminal tightness; clean slot gold‑finger contacts.
• Configuration mismatch alarm: Compare actual inserted module types against TriStation project hardware configuration; remove unexpected modules from unused slots; download correct system configuration.
• Intermittent communication between main chassis and expansion racks: Check cabinet vibration‑caused loose connectors; separate inter‑chassis cables from high‑power motor wiring; inspect grounding and EMC shielding condition.
• Over‑temperature warning: Check cabinet air‑inlet and outlet ventilation; avoid blocking chassis ventilation openings; reduce ambient cabinet temperature; inspect cabinet cooling fan performance.
• Time‑synchronization failure to DCS: Verify Foxboro time‑sync interface wiring; check DCS time‑master configuration; confirm protocol parameter matching between chassis and DCS controller.
