Triconex 8131X I/O Expansion Chassis for Tricon‑CX TMR Safety System

Product Description

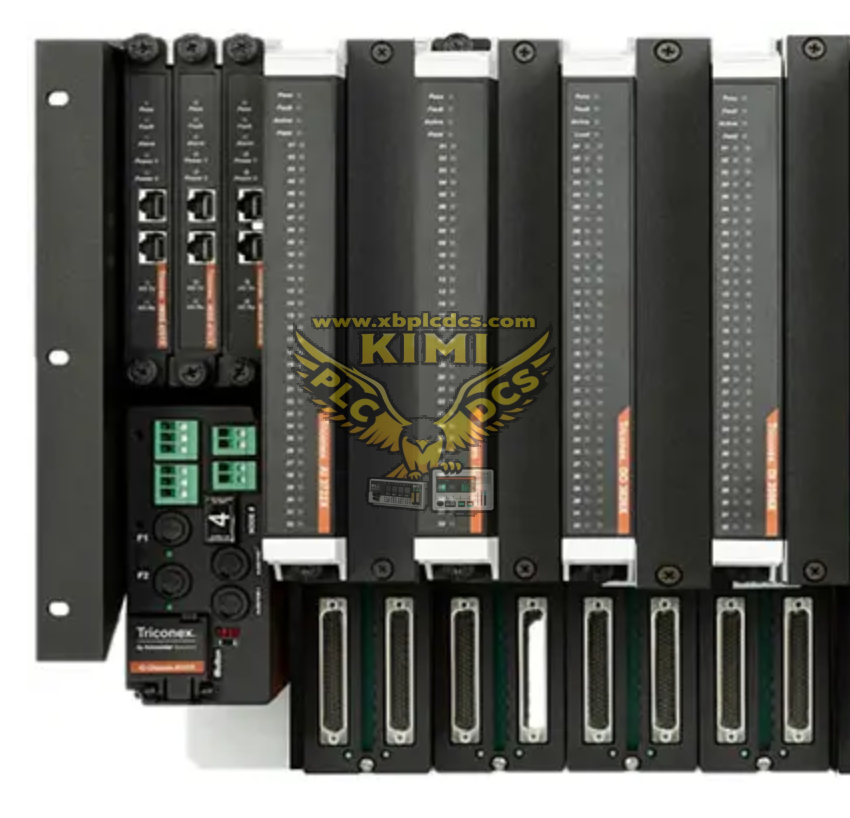

8131X is the I/O expansion rack for Schneider Tricon‑CX triple modular redundant (TMR) safety‑instrumented‑system (SIS). It connects to the 8120X main chassis via triplicated RS‑485 inter‑chassis links, providing physical slots for up to six Tricon‑CX series I/O modules. The backplane implements triple‑path signal transmission to maintain SIL‑3 fault‑tolerant performance. It requires redundant external 24 VDC power supply, supports hot‑swap I/O modules, and provides chassis‑level self‑diagnosis. This 19‑inch rack‑mount unit extends system I/O capacity for large‑scale safety interlock applications in process plants.

Product Features

• Expansion chassis holding maximum six Tricon‑CX I/O modules for digital / analog field signal acquisition and output
• Triplicated RS‑485 inter‑chassis bus interfaces, fully TMR‑compliant with three independent communication channels
• Hot‑swap I/O slot design, allows online replacement of I/O cards without system shutdown or safety trip
• Backplane with built‑in hardware diagnostics for slot fault, module missing, communication error and power monitoring
• Inter‑chassis daisy‑chain supported; one 8120X main chassis can drive multiple 8131X expansion racks
• Redundant 24 VDC external power input; backplane distributes power to all installed I/O modules
• LED indicators for chassis health status, power status and bus communication fault alarm
• 19‑inch standard cabinet rack‑mount, wide operating temperature ‑40 °C ~ +70 °C, robust anti‑vibration mechanical design
• SIL3 safety integrity level certified, suitable for ESD, BMS and safety interlock applications
• Supports HART‑capable I/O modules, millisecond‑level SOE sequence‑of‑event time‑stamp function

Application Scenarios

• I/O capacity expansion for Emergency Shutdown (ESD) safety systems in refinery and petrochemical plants
• Burner Management System (BMS) I/O rack for power‑plant gas turbine and boiler protection
• Off‑shore and on‑shore oil‑gas platform safety instrumented system field signal collection
• Chemical plant safety interlock cabinet for large quantity digital and analog process signals
• Distributed I/O expansion when main chassis 8120X internal slots are insufficient for project point count
• SIL‑3 fault‑tolerant safety control for coal‑chemical, natural‑gas processing and energy industries

Common Problems & Troubleshooting

• Expansion chassis offline, main chassis cannot recognize 8131X: Check triplicated A/B/C RS‑485 inter‑chassis cable connections; verify cable polarity and terminal termination; inspect connector damage or loose locking.
• Chassis power‑on alarm active: Inspect dual redundant 24 VDC power input voltage and terminal tightening; confirm no over‑load caused by excessive I/O modules.
• Individual I/O module fault after insertion: Ensure module fully seated and locked; clean gold‑finger contacts; verify TriStation project hardware configuration matches actual I/O card type.
• Intermittent loss of communication between main chassis and 8131X: Separate inter‑chassis cables from high‑current power wiring; check cabinet vibration‑induced connector loosening; verify EMC shielding and grounding quality.
• Configuration mismatch alarm: Compare project hardware layout with actual installed modules; remove unknown or unsupported card types; download updated system configuration to SIS.
• Over‑temperature warning: Clear blockages at chassis ventilation openings; check cabinet air circulation; reduce surrounding ambient operating temperature.
• Some field channels abnormal while chassis runs normally: Isolate fault to specific I/O module; perform channel loop test; replace faulty hot‑swap I/O card online according to maintenance procedure.
