Brief Product Description

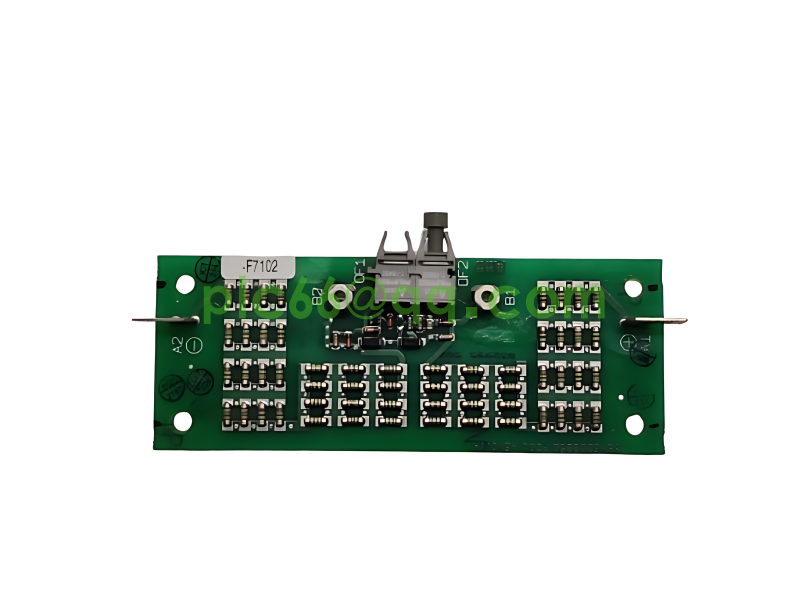

ABB 3BHE009017R0102 XVC724BE102, also known as XVC724BE, is a high-performance exciter control module designed for ABB generator excitation and power plant control systems. This industrial module handles excitation signal acquisition, conditioning and closed-loop regulation for synchronous generators, maintaining stable generator voltage and reactive power output. Equipped with built-in hardware self-diagnosis, electrical isolation and robust EMC protection, it delivers reliable performance under severe power plant electromagnetic and temperature conditions. It supports continuous 24/7 operation and seamless integration with ABB power control cabinets. Fully tested surplus and refurbished ABB XVC724BE 3BHE009017R0102 modules are available for legacy excitation system maintenance, module replacement and retrofit projects.

ABB model name: VLSCD-BOARD XV C724 BE102

CN8:85049099

Place of Origin:

China

Thailand

Customs Tariff Number: 85049090

Shape and Size: Spare Parts

Gross Weight: 0.1 kg

Net Weight of Product: 0.05 kg

Replacement Product ID (OLD):

3BHB003054R0104

3BHE009017R0101

3BHB003054R0101

3BHB003054R0102

3BHB003054R0103

HE009017R0101

HE009017R0102

3BHE009017R0001

HE009017R0001

3BHB003054R0001

HB003054R0103

3BHB003054R0003

3BHB003054R0002

Core Product Functions

• Precision signal sampling and processing for generator excitation control loops
• Closed-loop regulation of generator terminal voltage and reactive power output
• Excitation current and voltage monitoring, over-limit alarm and protection interlock logic
• Signal isolation and noise filtering to suppress interference in high-voltage power plant environments
• Real-time hardware self-diagnosis to detect circuit faults, signal loss and connection anomalies
• Data communication with upper DCS and excitation controller for remote monitoring
• Supports generator startup, grid synchronization and stable load operation control
• Industrial wide temperature design and high vibration resistance for power station cabinet installation
• Standard rack-mounted design compatible with ABB generator excitation control systems

Application Scenarios

• ABB synchronous generator excitation control systems in thermal power plants
• Hydroelectric power station generator voltage and reactive power regulation
• Combined cycle power unit excitation cabinet signal control and processing
• Power plant generator protection and monitoring auxiliary control loops
• Industrial self-contained power station generator excitation automation systems
• Legacy ABB excitation system troubleshooting, module replacement and retrofits

FAQ (Frequently Asked Questions)

• Q: Generator voltage fluctuation after installing XVC724BE102?
  A: Check voltage and current sensor wiring, verify shielding grounding, inspect backplane connector contact, and recalibrate excitation loop parameters.
• Q: Does ABB XVC724BE support hot-swap replacement?
  A: Hot swap is not permitted. Perform generator de-excitation and power cut-off with lockout-tagout procedures before replacement to avoid unstable generator output.
• Q: What is the main application of 3BHE009017R0102?
  A: It is an excitation control module used for signal processing and closed-loop control of synchronous generator excitation systems.
• Q: Which systems is XVC724BE compatible with?
  A: It is designed for ABB legacy generator excitation control platforms for thermal and hydro power generators.

• Q: Is ABB 3BHE009017R0102 available for new power plant projects?
  A: This legacy exciter control module is end-of-life for new installations. Only fully tested surplus and refurbished units are supplied for existing excitation system maintenance and retrofits.

XVC724BE102 3BHE009017R0102.pdf
