ABB ACS550-01-180A-4 General Purpose Low Voltage AC Drive Document

1. Product Description

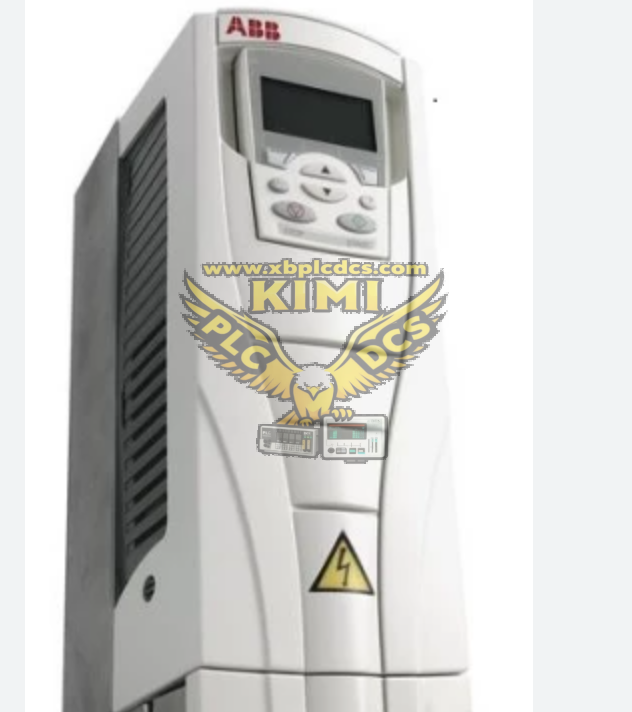

ACS550-01-180A-4 is a wall-mounted general-purpose three-phase AC variable frequency drive under ABB ACS550 series, frame size R6, IP21 (NEMA Type 1) enclosure rating. Model coding breakdown: 01 = Standard wall-mounted unit, 180A = 180A continuous rated output current, 4 = 380–480 VAC three-phase input power supply. Nominal power rating: 90kW light overload / 75kW heavy-duty overload, 180A normal continuous output, 156A heavy-duty output current. Equipped with built-in swinging DC choke for harmonic suppression and integrated Category C2 EMC filter to meet electromagnetic compatibility standards. The unit adopts tropicalized coated circuit boards for anti-corrosion and dust resistance, supports sensorless vector control algorithm, and comes with detachable assistant control panel for local parameter configuration. It has standard I/O terminals: 6 digital inputs, 2 analog inputs, 2 analog outputs, 3 relay outputs, built-in RS485 Modbus RTU communication interface, compliant with CE, UL, cUL, RoHS, ISO 9001 and IEC low voltage directives, operating ambient temperature range -10°C ~ +50°C with derating above 40°C.

2. Core Product Functions

• Sensorless vector motor control: Delivers high-precision torque and speed regulation from zero speed without motor encoder, compatible with standard asynchronous induction motors.
• Wide overload protection logic: Dual rating support for light overload (pump/fan) and heavy constant torque overload (conveyors/mixers), automatic current limiting to avoid drive tripping during motor startup.
• Built-in power quality optimization: Swinging choke reduces input current THD; integrated EMC filter suppresses radiated and conducted electromagnetic interference to avoid disturbance to nearby sensors and control equipment.
• Comprehensive multi-layer protection: Overcurrent, overvoltage, undervoltage, ground fault, overheat, motor thermal overload, input phase loss, output short-circuit and stall protection with fault code recording.
• Flexible multi-channel I/O control: Configurable digital/analog I/O terminals for remote start/stop, speed setpoint, fault feedback, and external interlock signal access.
• Standard Modbus RTU communication: RS485 bus realizes real-time data exchange with PLC, DCS and SCADA systems for remote speed adjustment, fault monitoring and energy statistics upload.
• Energy saving & monitoring functions: Built-in kWh energy counter, automatic sleep mode for low-load pumps/fans to cut idle power consumption, real-time power factor monitoring up to 0.98.
• User-friendly commissioning tools: Assistant control panel with guided startup wizard, FlashDrop parameter copying tool for fast batch drive configuration without repeated manual setup.
• Flexible auxiliary expansion: Supports plug-in fieldbus adapters (Profibus, DeviceNet), output du/dt filters and brake chopper modules for high-demand industrial loads.

3. Typical Application Scenarios

• Water treatment & municipal engineering: Large water supply pumps, sewage drainage pumps, cooling tower fans and blower units with variable flow demand.
• HVAC central air conditioning systems: Factory workshop exhaust fans, building chilled water pumps, boiler induced draft and forced draft fans.
• Mining & cement manufacturing: Heavy-duty belt conveyors, raw material mixers, kiln exhaust fans and crushing machine auxiliary drives.
• Oil & gas refinery auxiliary equipment: Process circulation pumps, ventilation fans and light-duty compressor auxiliary motors.
• Metallurgical processing plants: Cooling water pumps, furnace exhaust blowers and roller table low-speed transport drives.
• Food & pharmaceutical factories: Material mixing agitators, packaging conveyor lines and clean-room ventilation fans.
• Power plant auxiliary systems: Boiler feed water pumps, air preheater fans and ash conveying equipment variable speed control.

4. Common Faults & Troubleshooting Issues

4.1 A2009 Device Overtemp (Drive Heatsink Overheat)

Symptom: Drive triggers overtemperature alarm, automatic speed reduction or shutdown. Root causes: Blocked cooling fan, dust accumulated on heat sink, cabinet ventilation blocked, ambient temperature exceeds 50°C, long-term full-load continuous operation. Solution: Clean heat sink dust, replace damaged cooling fan, improve cabinet air circulation, reduce continuous load duty cycle, install external cooling fans.

4.2 A2002 Supply Phase Loss (Input Power Phase Missing)

Symptom: Alarm flashes, drive runs unstable with severe vibration, large current fluctuation. Root causes: Blown input three-phase fuse, loose main power terminal wiring, damaged upstream circuit breaker contact, unbalanced grid three-phase voltage. Solution: Inspect each input phase continuity, retighten power cable terminals, replace blown fuses, balance three-phase grid voltage.

4.3 A2005 IO Comm / Fieldbus Communication Timeout

Symptom: PLC/DCS cannot send speed commands or receive drive status data, intermittent communication disconnection. Root causes: Mismatched Modbus baud rate/address/parity, reversed RS485 A/B wiring, missing 120Ω bus termination resistor, signal cable routed alongside high-power cables with heavy EMI interference. Solution: Unify communication parameters between host and drive, swap bus signal lines, install termination resistors at bus endpoints, separate communication cables from power wiring.

4.4 Ground Fault Output Short Circuit Alarm

Symptom: Drive trips immediately upon startup, ground fault fault code displayed. Root causes: Damaged motor insulation, cracked motor power cable with core short to ground, water intrusion inside motor terminal box, internal power module short circuit. Solution: Disconnect motor cable to test drive separately, perform motor insulation resistance test, replace damaged power cables, dry out damp motor terminal box.

4.5 A2010 Motor Over Temperature Alarm

Symptom: Motor overheating alarm, drive limits output torque automatically. Root causes: Motor long-term overload, blocked motor cooling fan, incorrect motor thermal protection parameter setting, damaged PT100 temperature sensor wiring. Solution: Reduce mechanical load on motor, clean motor cooling airways, recalibrate motor thermal protection parameters, inspect and rewire temperature detection circuit.

4.6 A2008 Panel Loss (Control Panel Disconnection)

Symptom: Local control panel screen goes blank, unable to operate drive locally. Root causes: Loose panel communication cable, damaged panel RJ45 connector, faulty panel hardware, misconfigured panel communication fault parameters. Solution: Reconnect panel data cable firmly, inspect connector pins for bending, reset panel communication fault parameters, replace spare assistant control panel for verification.
