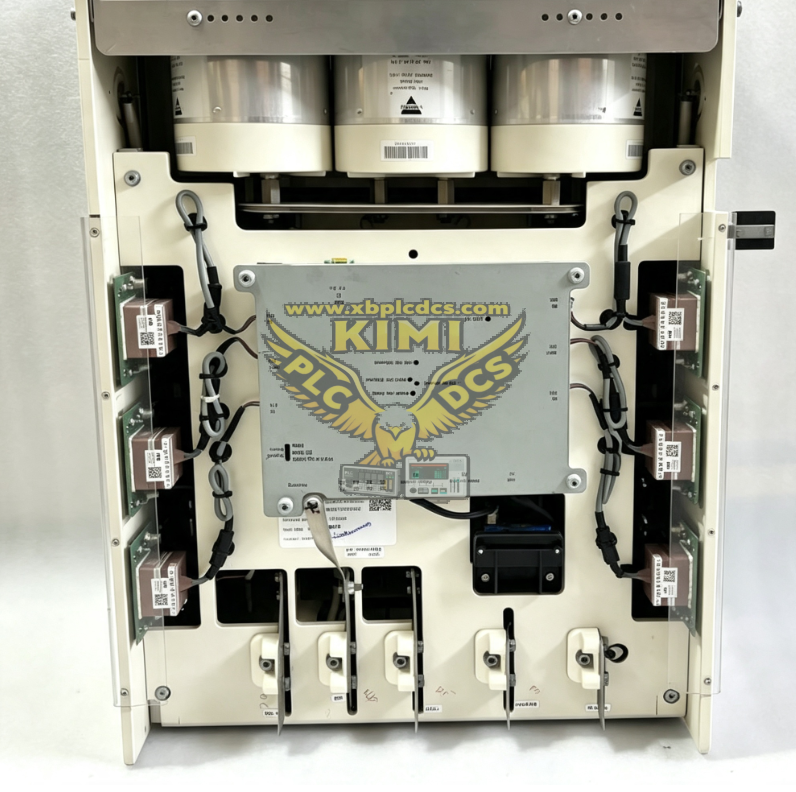

ABB PBAE10A01 (6K100 / 2UBA001210R0010) ACS2000 Medium Voltage Drive Phase Module Document

1. Product Description

PBAE10A01 (full designation PBA E10 A01 6K100, factory part number 2UBA001210R0010) is a complete phase power module exclusively for ABB ACS2000 1MVA medium voltage variable frequency drive series, the replacement spare part code is 3BHB024711R0020. This drawer-type integrated power unit integrates power semiconductor IGCT stacks, DC-link film capacitors, snubber circuits, current/voltage sampling sensors, cooling heat sink and drive trigger signal interface board. It adopts three-phase modular design, each ACS2000 medium voltage inverter cabinet needs three sets of PBAE10A01 to form a complete three-phase power conversion loop. Electrical specifications: Rated power matching 1MVA ACS2000 drive, medium voltage input 6kV, built-in high-speed current sampling circuit, isolated trigger fiber interface, forced air cooling design. Compliance with IEC 61800, CE industrial power equipment certification, operating ambient temperature range -10℃ ~ +45℃, derating required above 40℃, IP20 cabinet protection grade.

2. Core Product Functions

• Medium voltage AC-DC-AC power conversion core: Realize single-phase power rectification and inverter output through IGCT power devices, convert fixed medium voltage power to variable frequency variable voltage drive output for medium voltage motors.
• Integrated DC-link energy storage: Built-in high-capacity film capacitor group, stabilize DC bus voltage, buffer instantaneous power fluctuation during motor acceleration/deceleration.
• High-precision electrical signal sampling: Onboard Hall current sensor and bus voltage divider circuit, feed real-time phase current and DC voltage signals back to the ACS2000 control board for closed-loop vector control.
• Fiber optic isolated trigger reception: Receive PWM trigger optical signals sent by the upper PPD control board, isolate strong power circuit and weak control circuit to eliminate EMI interference.
• Multi-level hardware protection logic: Integrated overcurrent, overvoltage, IGCT overheating, capacitor over-temperature, DC-link short-circuit hardware interlock protection, immediately block trigger pulses when fault occurs to avoid power device breakdown.
• Drawer pluggable maintenance design: Drawer-type overall structure, supports single-phase module independent pull-out replacement without disassembling the whole drive cabinet, greatly shorten equipment maintenance downtime.
• Built-in temperature monitoring: Multiple NTC temperature sensors monitor IGCT chip and capacitor temperature in real time, upload temperature data to drive controller for thermal load derating control.
• Snubber absorption circuit: Suppress high-frequency voltage spike generated during IGCT switching, protect power semiconductors from breakdown caused by dv/dt impact.

3. Typical Application Scenarios

• Thermal power plants: Medium voltage boiler induced draft fan, forced draft fan, circulating water pump main motor speed regulation.
• Mining industry: Underground medium voltage belt conveyors, large mine ventilation fans, ore crushing main drive motors.
• Cement manufacturing plants: Kiln main drive, raw material vertical mill, large exhaust fan medium voltage variable speed control.
• Oil & gas refineries: Large process centrifugal compressors, medium voltage pipeline delivery pumps.
• Metallurgical factories: Rolling mill medium voltage main drive, furnace cooling water pump, flue gas fan drive.
• Water conservancy & hydropower stations: Large water supply pump, flood drainage pump medium voltage speed regulation system.

4. Common Faults & Troubleshooting Issues

4.1 Drive Reports Phase Module Missing / Fiber Communication Fault

Symptom: Control cabinet fault code flashes, inverter refuses to start, no trigger signal received by PBAE10A01. Root causes: Loose fiber optic connector, damaged optical fiber line, broken onboard optical receiving board, drawer locking mechanism not fully engaged. Solution: Re-plug fiber optic heads and clean end faces, replace damaged optical fiber, fully lock drawer latches, swap spare phase module to verify optical board hardware failure.

4.2 DC Bus Overvoltage / Capacitor Overheat Alarm

Symptom: Drive trips during motor braking, capacitor temperature alarm triggered. Root causes: Aging DC-link capacitors with capacity attenuation, blocked drawer cooling air duct, cooling fan failure, mismatched braking resistance parameter. Solution: Clean heat sink and capacitor dust, replace faulty cooling fan, test capacitance of capacitor group, recalibrate braking unit parameters, replace whole PBAE10A01 module if capacitor aging is severe.

4.3 Phase Overcurrent & Instant Trip on Startup

Symptom: Drive immediately trips after closing main power, overcurrent fault recorded. Root causes: Internal IGCT device breakdown short circuit, snubber circuit burnout, motor cable insulation breakdown to ground, current sampling Hall sensor damage. Solution: Disconnect motor cable to isolate drive side fault, perform IGCT insulation test, check Hall sensor signal output, replace damaged phase module if power device short-circuited.

4.4 Module Over Temperature Alarm, Automatic Output Derating

Symptom: Motor output power limited, module surface high temperature, temperature fault code logged. Root causes: Dust blockage on heat sink fins, cabinet ventilation fan damaged, long-term full-load continuous operation, ambient temperature exceeds 45℃. Solution: Disassemble drawer to clean heat sink dust deposits, replace invalid cooling fans, optimize cabinet air circulation, reduce long-term continuous load rate.

4.5 Drawer Pull-out Maintenance Triggers System Interlock Trip

Symptom: Whole drive protection shutdown occurs during single-phase module replacement. Root causes: Drawer interlock safety switch damage, improper pull-out operation sequence, residual voltage on DC bus not discharged. Solution: Strictly follow ABB ACS2000 maintenance procedure, wait DC bus complete discharge before pulling drawer, inspect and replace damaged drawer safety interlock switch.

4.6 Unstable Motor Output Torque, Current Waveform Distortion

Symptom: Motor vibration increases, three-phase current unbalanced, floating current sampling value. Root causes: Loose current Hall sensor fixing, aging sampling circuit, poor contact between drawer power copper bar and cabinet busbar. Solution: Tighten drawer power terminal copper bar bolts, re-fix Hall sensor assembly, replace faulty PBAE10A01 phase module if sampling circuit damaged.
