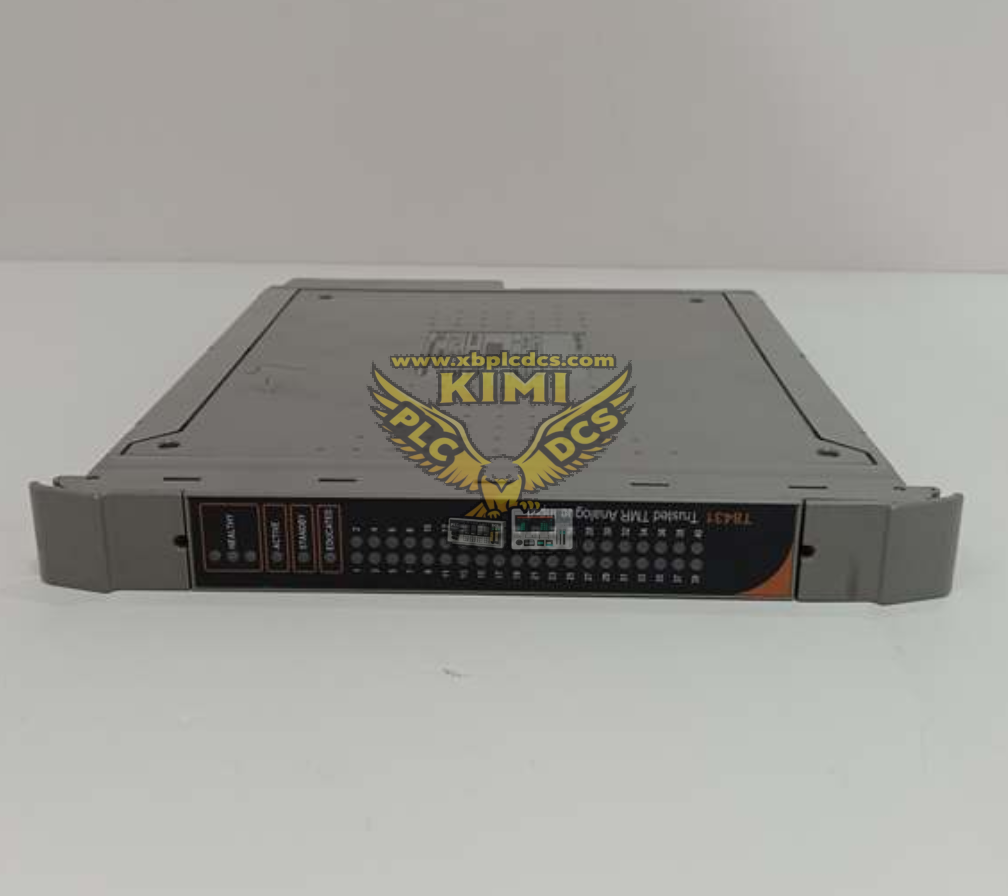

ICS Triplex T8431C 40-Channel TMR Analog Input Module

1. Product Description

T8431C is a SIL 3 certified triple modular redundant (TMR) analog input module under ICS Triplex Trusted Series C, owned by Rockwell Automation. It is the conformal coated ruggedized version of T8431, designed for harsh industrial safety instrumented systems (SIS). This rack-mounted single-slot module provides 40 fully triplicated analog input channels, divided into 5 independent groups of 8 channels each. It accepts 4–20mA current and 0–6VDC voltage transmitter signals, with 2500V DC galvanic isolation between field circuits and backplane bus to eliminate ground loops and EMI interference. The module adopts 2oo3 voting architecture; every channel has three separate signal measurement paths, masking single-path faults without disrupting process monitoring. It supports hot-swap maintenance, operates on 20–32VDC rack power, and features full PCB conformal coating for anti-corrosion, dust and humidity resistance in offshore and chemical environments, complying with CE and IEC 61508 SIL3 safety standards.

2. Core Product Functions

• 40 triplicated analog input channels, configurable for 4–20mA transmitters, RTD and thermocouple sensors for temperature, pressure, flow and level measurement
• 2oo3 hardware voting logic: three independent signal paths per channel to validate accurate readings, continue operation if one measurement channel fails
• High precision 16-bit signal conversion, ±0.02% full-scale accuracy, 0.5ms fast sampling rate and configurable 50/60Hz digital noise filtering
• Comprehensive loop self-diagnosis (99% coverage): detect open circuit, short circuit, sensor drift, internal path failure and backplane communication loss
• 1ms high-resolution Sequence of Events (SOE) time-stamping for precise fault root cause analysis during safety trips
• 2500V DC channel-to-backplane isolation to suppress high-frequency electromagnetic interference from turbines and high-voltage equipment
• Hot-swap compatible, replace module online without full Trusted rack shutdown to maximize system uptime

• Transmit validated digital process data to Trusted TMR processor via Inter-Module Bus (IMB) for safety interlock and ESD logic execution

3. Application Scenarios

• Oil & gas upstream/downstream ESD (Emergency Shutdown) systems, fire & gas safety monitoring on FPSO and offshore drilling platforms
• Thermal power, hydroelectric and nuclear plant SIL3 safety instrumented systems, turbine protection and boiler safety interlock
• Chemical, petrochemical and pharmaceutical plant process safety control, toxic/flammable medium pressure & temperature monitoring
• Refinery and LNG storage tank level, pressure and temperature redundant measurement systems
• Heavy industry metallurgical furnace safety monitoring and critical rotating machinery protection

4. Common Troubles & Issues

• TMR Channel Voting Mismatch Alarm

  Cause: Uneven signal drift among three triplicated paths, damaged field sensor cable, inconsistent channel calibration parameters. Solution: Recalibrate all three paths, inspect shielded wiring, replace faulty transmitter probe.

• Continuous Sensor Open Circuit Fault

  Cause: Loose terminal block wiring, broken field cable, burnout of internal channel isolation circuit. Solution: Check cable continuity, re-tighten field terminals and test channel isolation resistance.

• Unstable Fluctuating Analog Readings

  Cause: Unshielded signal cables, poor cabinet protective grounding, nearby high-power motor EMI interference. Solution: Install shielded twisted-pair cables and connect cable shields to chassis ground.

• Module Not Recognized by Trusted Processor

  Cause: Dirty backplane golden fingers, abnormal rack 24VDC power supply, incompatible system firmware version. Solution: Clean PCB contact fingers, verify rack power voltage and upgrade matching Trusted firmware.

• Intermittent SOE Timestamp Loss Under Vibration

  Cause: Loose module locking latches, loose wiring terminals, aging internal solder joints. Solution: Secure module fixing screws, lock all field terminals and inspect PCB soldering points.

• Module Overheating & Automatic Reset

  Cause: Cabinet ventilation blockage, dust accumulation on conformal coated PCB, long-term full-load channel operation. Solution: Clean module surface dust and restore cabinet cooling airflow.
