HIRSCHMANN MAR1040-4 c4c4c4c9999sm9hphh09. 0.14 is HIRSCHMANN company produces a gigabit Ethernet switch, belong to the MACH1040 series,

the series switches designed for industrial automation, high reliability and flexibility. Here is its detailed introduction:

Basic information

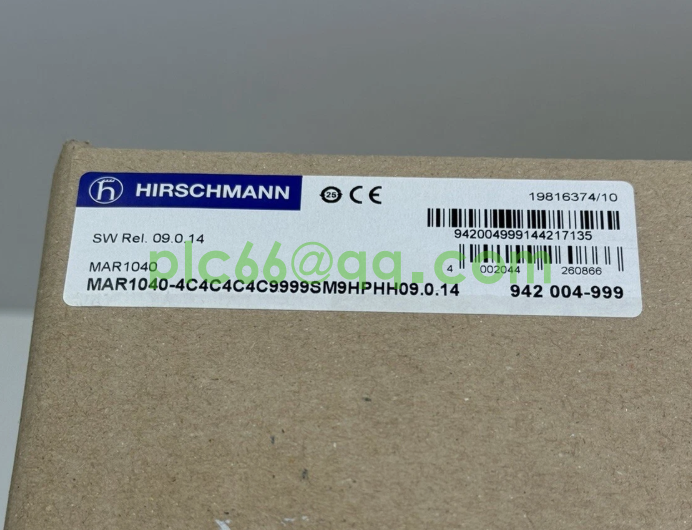

Model: MAR1040-4 c4c4c4c9999sm9hphh09. 0.14

Product type: Managed industrial Ethernet switch

Installation method: 19-inch rack mounting

Power supply: Supports power input of 110/250VDC and 110/230VAC

Operating temperature: 0°C to + 60°C

Protection grade: IP30

Weight: 4.4kg

Port specification

Number of ports: It has 16 combination ports (10/100/1000Base TX RJ45 ports and related FE/GE-SFP slots), and can provide a variety of copper cable/fiber optic port combinations.

Product features

Fanless design: Through an optimized fanless design and efficient components, heat generation is minimized, providing an extremely high mean time between failures (MTBF).

Quick startup: The startup time is less than 10 seconds, allowing for rapid use.

Precise Time Protocol: All ports support the Precise Time Protocol in accordance with the IEEE 1588 v2 standard, with an accuracy of up to 30ns.

Redundancy function: Supports multiple redundancy methods, such as Fast Hiper Ring, MRP (IEC ring function), link aggregation, MSTP and RSTP, etc., to improve the availability and reliability of the network.

Software functions

Software version: Layer 2 Professional or Layer 3 software may be adopted, providing rich Layer 2 or Layer 3 functions, such as static and dynamic routing, multicast routing, router redundancy, etc.
