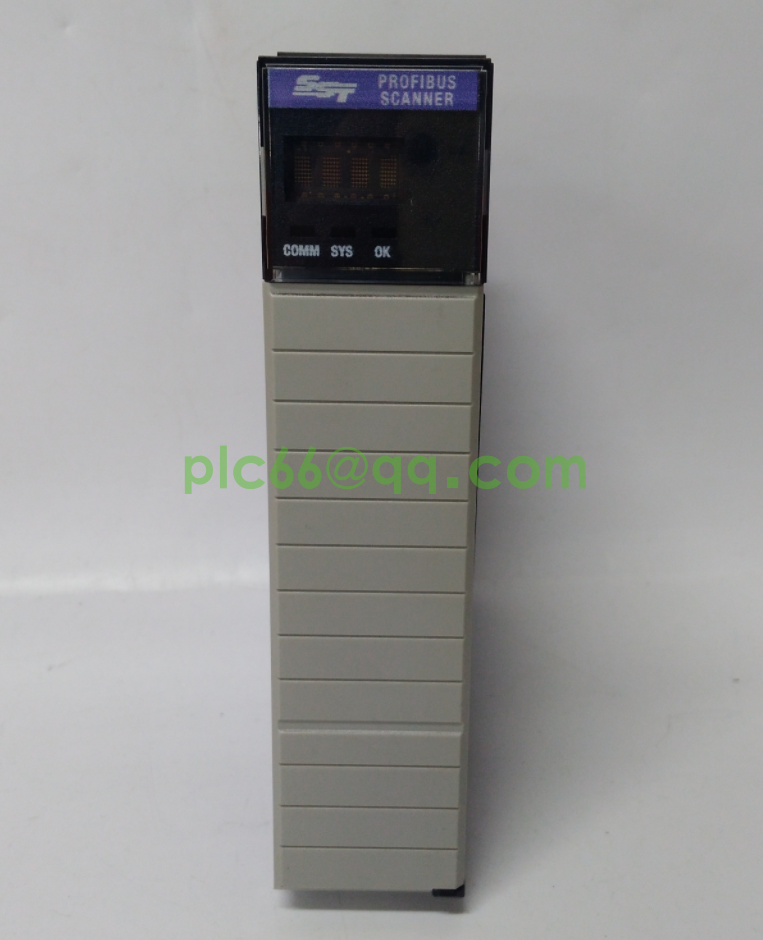

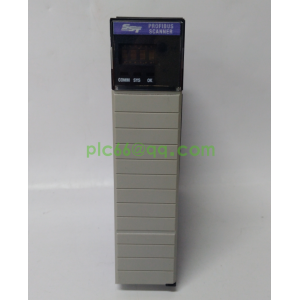

SST-PB3-CLX-RLL PROFIBUS Communication Module
The SST-PB3-CLX-RLL is a high-performance PROFIBUS DP V1 communication module designed for seamless integration with Allen-Bradley ControlLogix PLC systems, enabling reliable and high-speed data exchange between ControlLogix controllers and PROFIBUS field devices in industrial automation environments. Engineered by Woodhead/SST (now part of Molex), this module serves as a critical communication gateway, supporting both master and slave operation modes to facilitate bidirectional data transfer for process control, discrete manufacturing, and motion control applications. It features advanced diagnostic capabilities, automatic baud rate detection (9.6 kbps to 12 Mbps), and robust error-handling mechanisms to ensure continuous communication even in harsh industrial environments with electromagnetic interference (EMI) and signal noise. The SST-PB3-CLX-RLL is compatible with Rockwell RSLogix 5000 software, offering intuitive configuration and programming interfaces that simplify system setup and maintenance. With its rugged industrial design, hot-swappable functionality, and compliance with PROFIBUS EN 50170 standards, this module is ideal for deployment in automotive manufacturing, food and beverage processing, packaging machinery, and chemical processing plants, ensuring seamless interoperability between ControlLogix systems and PROFIBUS-based field devices such as sensors, actuators, drives, and HMIs.
| Specification Item | Details |
|---|---|
| Product Model | SST-PB3-CLX-RLL |
| Product Type | PROFIBUS DP V1 Communication Module for ControlLogix |
| Compatibility | Allen-Bradley ControlLogix Chassis (1756); RSLogix 5000 v16+ |
| PROFIBUS Compliance | PROFIBUS DP V1, EN 50170, IEC 61158-2 |
| Communication Modes | PROFIBUS DP Master / Slave (Configurable) |
| Baud Rate | 9.6 kbps – 12 Mbps (Auto-Detection & Manual Configuration) |
| Data Transfer Capacity | Up to 244 Bytes Input / 244 Bytes Output per Node |
| Number of Nodes | Up to 125 PROFIBUS DP Slaves (Master Mode) |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F); Storage: -40°C ~ +85°C |
| Mounting Type | Allen-Bradley ControlLogix Chassis Slot Mount; Hot-Swappable |
| Application Scenarios | Automotive Manufacturing, Food & Beverage Processing, Packaging Machinery, Chemical Processing, Industrial Automation Systems |
Important Note: The SST-PB3-CLX-RLL module must be configured using Rockwell RSLogix 5000 software (v16 or higher) to ensure full compatibility with ControlLogix PLC systems and PROFIBUS field devices. Installation should be performed by qualified personnel with expertise in Allen-Bradley ControlLogix systems and PROFIBUS networking. Proper termination of the PROFIBUS bus (120Ω resistor) at both ends of the network is critical to prevent signal reflections and ensure reliable communication. Before deployment, verify that the module firmware is up-to-date and compatible with the target ControlLogix chassis firmware version. For detailed configuration guides, PROFIBUS network design best practices, and troubleshooting steps, please refer to the official Molex/SST product documentation or contact authorized technical support.
