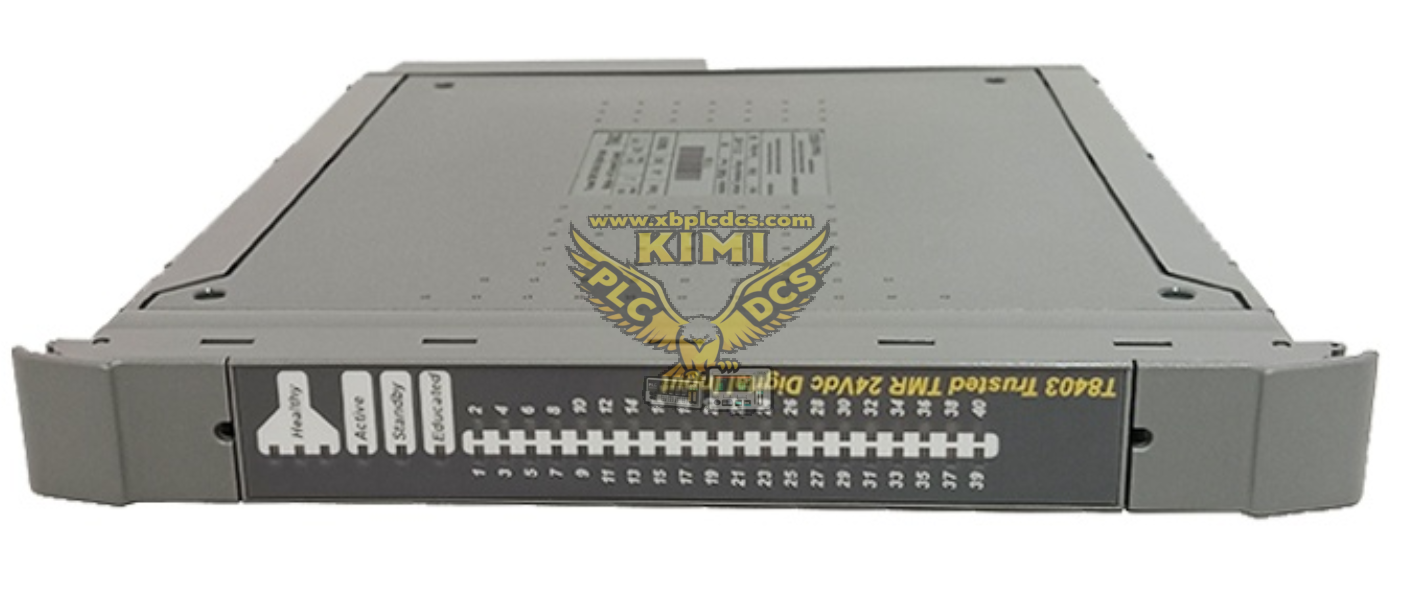

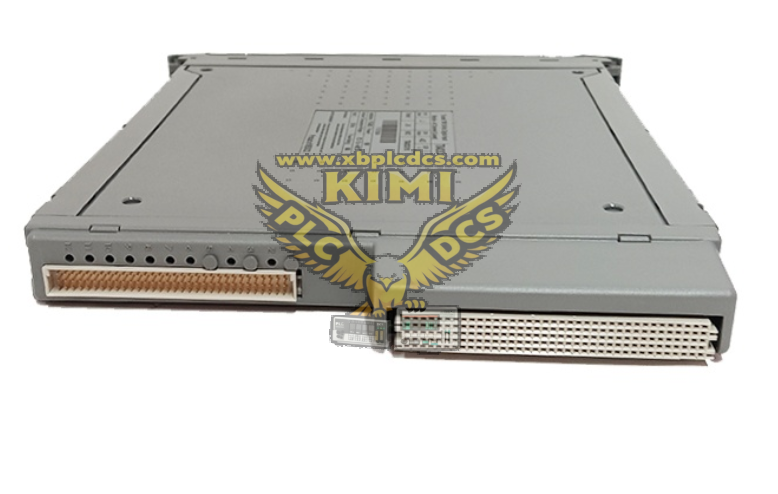

ICS Triplex T8403C 40-Channel TMR Digital Input Module

1. Product Description

T8403C is a conformal coated ruggedized 40-channel TMR digital input module under ICS Triplex Trusted SIL3 safety system series, owned by Rockwell Automation. It is the harsh-environment enhanced variant of standard T8403, coated with protective conformal lacquer for offshore, chemical and high-humidity industrial sites. The single-slot rack card supports 24VDC field digital switch inputs, all 40 channels fully triplicated with independent 2oo3 voting circuits to meet IEC 61508 SIL3 safety integrity level. Equipped with 2500Vdc galvanic isolation between field wiring and backplane bus to eliminate ground loops and EMI interference. It adopts hot-swap plug-in design for Trusted rack, powered by 20–32VDC rack backplane supply, with front panel LED status indicators for module health, bus communication and channel fault alerts. All circuits feature continuous self-test diagnostics and 1ms high-precision SOE timestamp logging for safety trip event tracing.

2. Core Product Functions

• 40 fully triplicated 24VDC digital input channels for collecting limit switches, valve feedback, pressure/trip contact, fire & gas detector status signals
• 2-out-of-3 hardware voting architecture: three independent signal acquisition paths per channel, masking single-path faults without interrupting safety logic operation
• 2500V channel-to-backplane isolation barrier to suppress high-frequency electromagnetic noise from turbines, transformers and high-voltage equipment
• Comprehensive loop diagnostics: automatically detect open circuit, short circuit, wiring failure and internal channel circuit damage, upload fault codes to Trusted main processor
• 1ms resolution Sequence of Events (SOE) time stamping to record precise timing of safety interlock trigger events for post-failure root analysis
• Conformal coated PCB circuit to resist salt mist, chemical vapor, dust and humidity in marine and corrosive industrial environments
• Hot-swap maintenance, supports online module replacement without full SIS rack shutdown to maximize process uptime

• Transmit validated digital status data to Trusted TMR CPU via high-speed IMB inter-module bus for ESD and safety interlock logic execution




3. Application Scenarios

• Offshore FPSO, drilling platform ESD emergency shutdown and fire & gas safety monitoring systems
• Refinery, petrochemical and LNG plant SIL3 safety instrumented systems for hazardous process interlock
• Thermal, hydro and nuclear power plant turbine, boiler and generator safety protection control racks
• Chemical pharmaceutical plant toxic medium overpressure, over-temperature safety trip signal collection
• Mining heavy equipment, metallurgical furnace critical safety switch and interlock signal acquisition
• Marine vessel propulsion safety interlock and cargo tank safety monitoring system

4. Common Troubles & Issues

• TMR Channel Voting Discrepancy Alarm

  Cause: Uneven signal attenuation on three triplicated paths, damaged field switch cable, inconsistent channel threshold configuration. Solution: Recalibrate input threshold parameters, inspect shielded wiring continuity, replace faulty field contact switches.

• Persistent Channel Open Circuit Fault Alert

  Cause: Loose FTA terminal wiring, broken field signal cable, burnout of internal opto-isolator circuit. Solution: Re-tighten all field terminals, test cable continuity and replace damaged isolation channels.

• Random False Digital Status Fluctuations

  Cause: Unshielded twisted pair cables, poor cabinet protective grounding, strong EMI interference from nearby high-power motors. Solution: Upgrade to shielded signal cables and connect cable shields to chassis ground.

• Module Unrecognized by Trusted Main Controller

  Cause: Dirty backplane golden finger contacts, abnormal rack 24VDC bus power, incompatible system firmware version. Solution: Clean PCB gold fingers with anti-static cloth, verify rack power supply voltage and match rack firmware version.

• Loss of SOE Event Timestamp Records

  Cause: Loose module locking latches, loose terminal blocks, aging internal PCB solder joints under equipment vibration. Solution: Fasten module fixing screws, lock all wiring terminals and inspect internal circuit soldering points.

• Module Overheating & Spontaneous Reset

  Cause: Cabinet ventilation blockage, dust and chemical residue accumulation on conformal coated PCB, long-term full-load channel operation. Solution: Clean module surface dust deposits and restore cabinet cooling airflow circulation.
