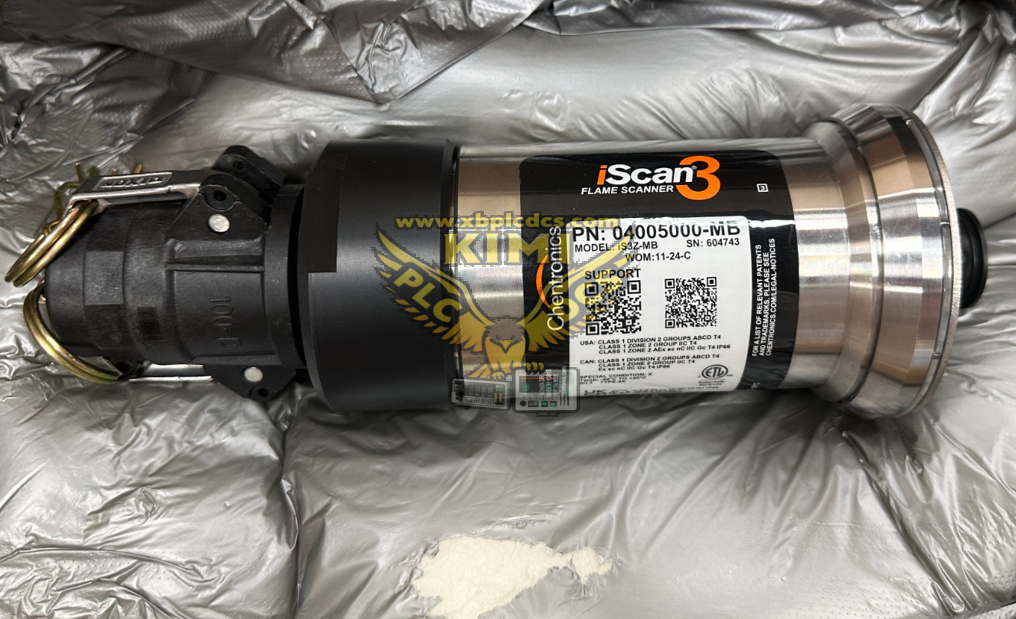

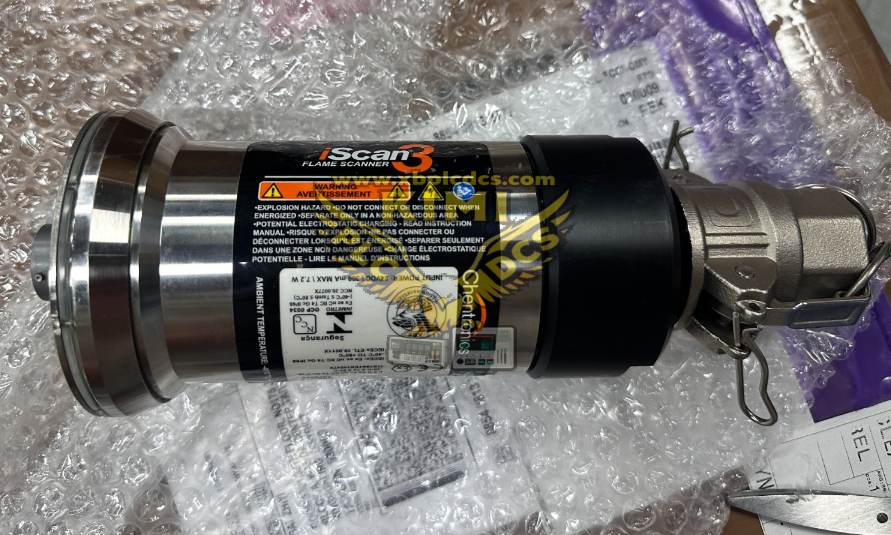

The CHENTRONICS IS3Z-MB (part number 04005000-MB) belongs to the industrial iScan3 flame scanner series manufactured by Chentronics, a professional supplier of combustion safety monitoring equipment. This multi-burner (MB) model integrates UV and infrared dual-spectrum flame sensing technology, supporting Modbus RTU RS485 communication for digital data upload to PLC, DCS and SIS safety systems. It is certified ATEX Zone 2, Class I Division II hazardous area compliance and meets IEC 61508 SIL3 functional safety standards for combustion safety interlock loops. Powered by 24VDC, the unit features stainless steel explosion-proof housing, built-in continuous self-test circuits, dual redundant dry-contact flame relays, dual 4-20mA analog outputs and a multi-color Ring of Light LED status indicator. The MB variant supports configurable flame discrimination logic to distinguish target pilot/main burner flames from background radiant heat or adjacent burner interference, making it ideal for multi-burner boilers, gas turbines and process furnaces in high-risk industrial sites. Its wide operating temperature range of -40°C to +80°C enables stable operation in high-temperature, dusty cabinet environments of power plants and petrochemical facilities.

• Dual UV + IR spectrum simultaneous detection to accurately identify valid combustion flames and filter out false signals from hot refractory, sunlight or electrical arcs
• Multi-burner configurable discrimination algorithm, adjustable gain and flame threshold to isolate target flame signals in multi-burner furnace layouts
• RS485 Modbus RTU communication interface to transmit flame intensity, internal temperature, fault codes and operating status to upper control systems digitally
• Dual independent voltage-free flame relays (primary + configurable fault relay) for hardwired burner safety shutdown interlock logic
• Dual isolated 4–20mA analog output channels: one for real-time flame intensity, the second for scanner internal temperature or signal gain value
• Continuous automatic hardware self-diagnosis to detect sensor failure, internal circuit damage, over-temperature and communication loss with dedicated fault state output
• Adjustable flame failure response time (1–6 seconds) to match different burner startup and safety protection requirements
• Multi-color Ring of Light LED indicator for intuitive on-site visual feedback of flame presence, temperature warning and hardware fault conditions
• ATEX / Class I Div II explosion-proof construction for direct installation inside hazardous combustion zones without extra protective enclosures

• Full parameter configuration, real-time data recording and historical fault log export via official iScan PC configuration software

• Thermal & Combined Cycle Power Plants: Gas turbine and boiler Burner Management System (BMS) flame safety monitoring for main burners and pilot flames
• Petrochemical & Refinery Facilities: Process furnace, reformer and heater flame detection for emergency shutdown (ESD) safety interlock systems
• Oil & Gas Production Platforms: Hazardous area burner monitoring for natural gas process heaters and waste gas incinerators
• Metallurgical Industry: High-temperature reheating furnaces, annealing furnaces and smelting burner flame supervision
• Chemical & Fertilizer Plants: Hydrogen, ammonia and sulfur recovery unit furnace flame safety protection
• Waste-to-Energy & Incineration Plants: Multi-chamber waste incinerator stable flame detection and flame-out protection

• Industrial System Retrofit: Drop-in replacement flame scanner for outdated single-spectrum detectors during BMS safety system upgrades

• Q: Why does the scanner trigger a false flame loss alarm even when the burner is burning normally?
  A: Common causes include misconfigured flame gain/threshold, strong background IR radiation from adjacent hot furnaces, blocked optical lens, or improper discrimination parameter settings for multi-burner layouts.
• Q: The Modbus RS485 communication cannot read data from IS3Z-MB 04005000-MB, how to troubleshoot?
  A: Verify correct Modbus station address, baud rate and 8N1 data format; check RS485 A/B wiring polarity; enable the terminal resistor on the last scanner of the bus; confirm no bus short-circuit in field cables.
• Q: What happens when the scanner exceeds its maximum operating temperature of +80°C?
  A: The unit enters temperature fault mode, flame relays open to trigger burner shutdown interlock, and the 4-20mA analog output drops to fixed 2mA fault signal with red LED warning ring light.
• Q: Can this MB model work for single-burner furnace applications?

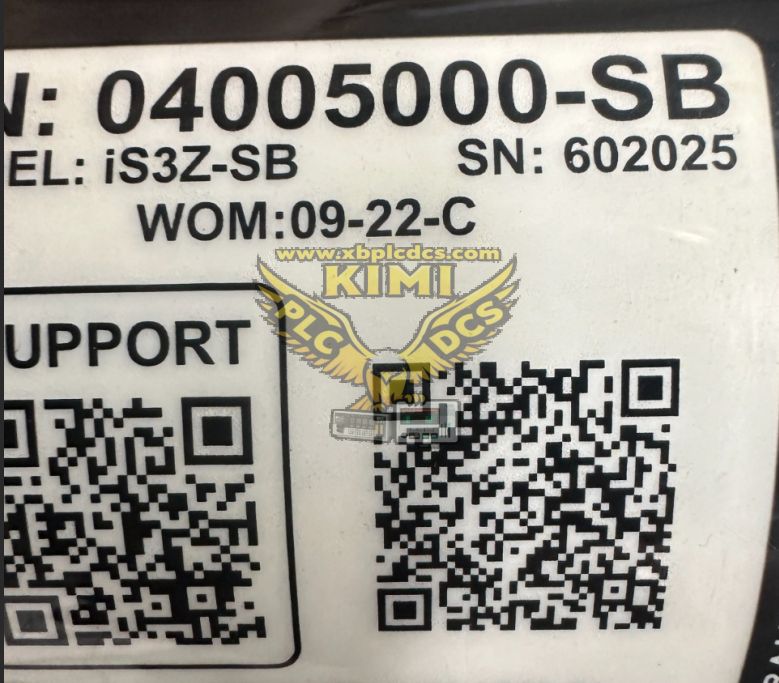

  A: Yes, the multi-burner model supports single-burner operation by adjusting discrimination parameters to ignore external interference signals, while the SB single-burner variant is a more cost-effective choice for standalone burners.
• Q: Does the flame scanner maintain SIL3 safety performance after Modbus communication failure?
  A: Yes. Hardwired relay and 4-20mA analog output circuits operate independently of Modbus communication; safety interlock functions remain fully SIL3 compliant even with digital communication disconnection.
• Q: How to clean the optical sensing lens without damaging the scanner hardware?
  A: Power off the unit completely, wipe the lens surface with soft lint-free cloth and isopropyl alcohol; avoid abrasive cleaners or hard tools that scratch the UV/IR optical coating.
