ABB MB810 HPC800 Module Mounting Base
Dual-Slot Mounting Base for HC800 Controllers & CP800 I/O Modules (Symphony Plus S+SD)
1. Core Overview

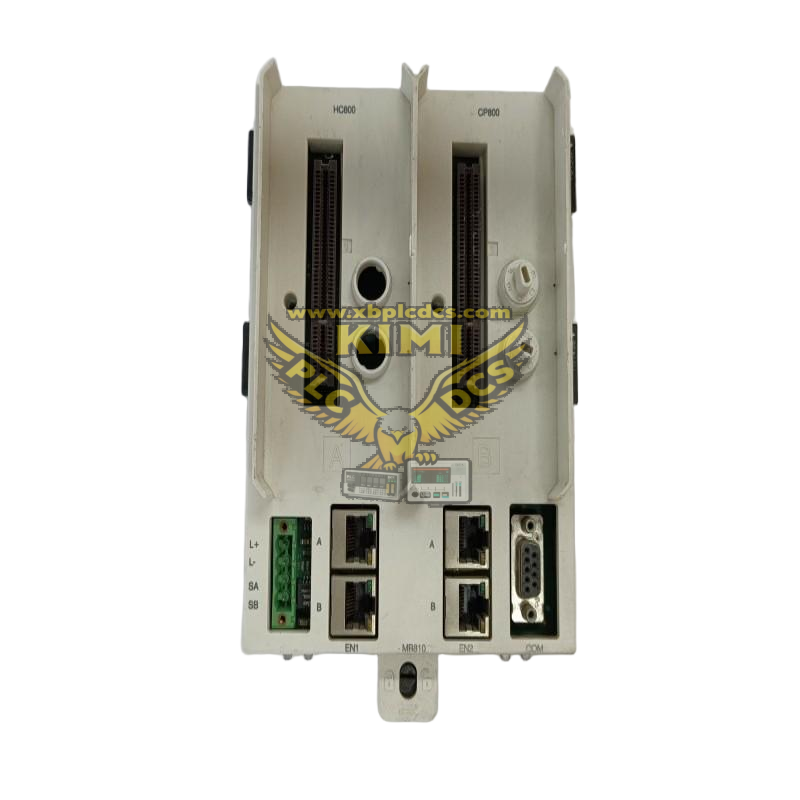

The ABB MB810 is a dual - slot module mounting base engineered for ABB Symphony Plus S+SD HPC800 control systems, serving as a reliable mechanical and electrical interface for HC800 controllers (Slot A) and CP800 I/O modules (Slot B){insert\_element\_0\_}. It offers stable E - Bus connectivity, address configuration, and industrial - grade terminal connections, ensuring seamless integration and maintenance in power generation, petrochemical, and heavy - duty industrial automation applications.
• Core Role: Dual - slot mounting & termination base for HC800 (A - slot) and CP800 (B - slot) modules{insert\_element\_1\_}
• Key Specs: 243.84 mm×170.18 mm×73.66 mm; 1.43 kg; double - layer terminal blocks (36 terminals per side){insert\_element\_2\_}
• System Fit: Symphony Plus S+SD HPC800 control system; E - Bus address configuration via jumpers{insert\_element\_3\_}
2. Mechanical Design & Connection Capabilities
The MB810 features a robust metal chassis with a dual - slot layout (A for HC800, B for CP800) and a secure latching mechanism for tool - free module insertion/removal. It is equipped with double - layer terminal blocks (36 terminals per side) for easy field wiring, E - Bus interface for module communication, and address jumpers to set network addresses for seamless system integration. Its industrial - grade construction ensures stable performance in harsh environments, and it supports conformal - coated HC800/CP800 modules for enhanced corrosion resistance.
• Mechanical: Metal chassis; latching mechanism for quick maintenance; conformal coating compatibility
• Connections: E - Bus interface; double - layer terminal blocks; address configuration jumpers
• Wiring: 36 terminals per side; clear labeling for field I/O and power connections
