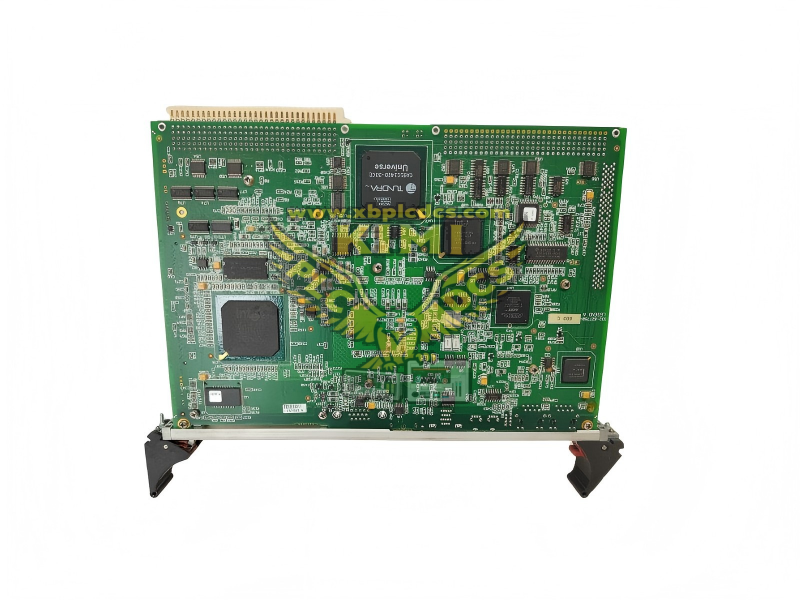

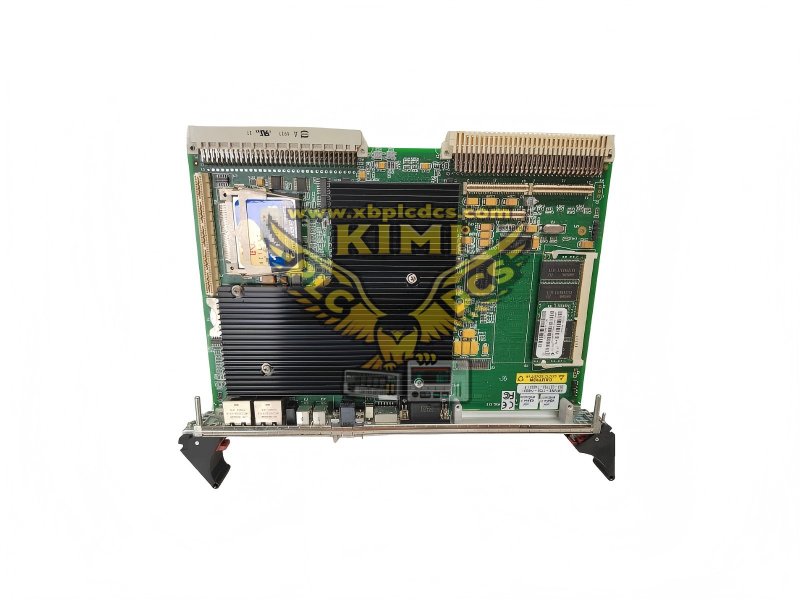

VMIVME-7750 | 6U VME Single Board Computer (SBC)
Pentium III-Powered Embedded Controller for Industrial Automation & Real-Time Processing
1. Product Overview
The VMIVME-7750 is a high-performance 6U VME single board computer (SBC) originally by VMIC (now part of Abaco Systems, formerly GE Fanuc Embedded Systems), engineered for VMEbus-based embedded systems, industrial automation, and real-time control applications. It features an Intel Pentium III processor (up to 1.26 GHz) with 512 KB advanced transfer cache, 512 MB PC133 SDRAM, and up to 1 GB CompactFlash storage for reliable data processing and program execution. The SBC integrates dual 10/100 Ethernet ports, 2x RS‑232 serial, USB 1.1, IDE, VGA, and a PMC expansion slot for custom I/O. Its Tundra Universe II PCI‑to‑VME bridge enables transparent A32/A24 addressing and D64/D32 data transfers, supporting system controller or peripheral CPU roles in multi‑CPU setups. Built for harsh industrial environments, it operates at -40°C to +85°C with passive cooling and VME64 compliance, ideal for power generation, aerospace, and process control.
Key Specifications
• Model: VMIVME-7750 | Brand: VMIC/GE/Abaco Systems | Form Factor: 6U VME Single Board Computer (SBC)
• Processor: Intel Pentium III (800 MHz–1.26 GHz); Cache: 512 KB Advanced Transfer Cache
• Memory: Up to 512 MB PC133 SDRAM; Storage: Up to 1 GB CompactFlash, IDE, Floppy
• Bus: VME64 (Rev. C.1); Bridge: Tundra Universe II PCI‑to‑VME; Address/Data: A32/A24, D64/D32/D16
• Communication: Dual 10/100 Ethernet (RJ45); 2x RS‑232 Serial; USB 1.1; VGA (1200×600 max)
• Expansion: 1x PMC Slot (IEEE 1386, 5V); I/O: GPIO, Parallel Port, IDE, CompactFlash
• Power: +5V, ±12V (VMEbus); Power Consumption<25 W; Passive Cooling
• Environmental: Operating -40°C to +85°C; Storage -40°C to +85°C; Humidity 5–95% (non‑condensing)
• Certifications: VME64 Compliant; CE; RoHS; Industrial‑Grade Rugged Design
2. Core Features
• High‑Performance Processing: Pentium III up to 1.26 GHz for complex algorithms and real‑time control
• Transparent VME Integration: Tundra Universe II bridge enables seamless CPU/peripheral operation in multi‑CPU systems
• Flexible Expansion: PMC slot supports custom I/O (Ethernet, serial, I/O) for system scalability
• Dual Ethernet: Redundant network connectivity for critical data transfer and remote monitoring
• Rugged Passive Cooling: No fans, reliable operation in harsh industrial/aerospace environments (-40°C to +85°C)
• Watchdog Timer: Programmable for system reset/NMI/SYSFAIL to enhance fault tolerance
• Multi‑OS Support: VxWorks, Windows XP Embedded, Linux for diverse embedded applications
YMGK Purchase Information
This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.
One-Stop Global Industrial Product Procurement
Sales Manager: KI MI
WeChat: 18059884790
- Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
- Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
- Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
- Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
- Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.
For additional inquiries, reach out to us at any time.
All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders
3. Typical Applications
• Industrial Automation: System controller for process control, data acquisition, and motion control
• Power Generation: Turbine control, grid monitoring, and SCADA integration in power plants
• Aerospace & Defense: Avionics, radar processing, and embedded computing in harsh environments
• Transportation: Railway signaling, train control, and vehicle monitoring (EN 50155 compliant)
• Test & Measurement: Data logging, instrument control, and real‑time signal processing
4. Installation & Maintenance
Installation: Single‑slot 6U VME chassis mount; connect VME P1/P2; wire dual Ethernet, serial, USB, VGA; apply VMEbus power (+5V, ±12V); verify front‑panel LEDs (Power, VME Activity, Ethernet Link/Act).
Maintenance: Weekly: Check LEDs and network links; Monthly: Verify memory/CompactFlash health; Annual: Inspect cooling, test watchdog, and update firmware.
Safety Notes: Use shielded cables for Ethernet/serial; Follow VME64 grounding guidelines; Isolate power/signal wiring; Ensure passive cooling airflow.
Technical Document | VMIVME-7750 | 6U VME Single Board Computer for Industrial & Embedded Systems
