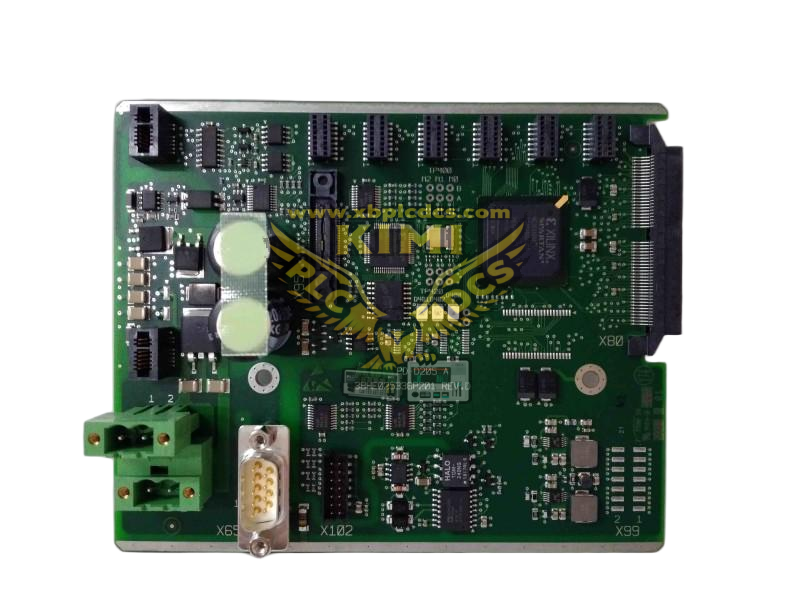

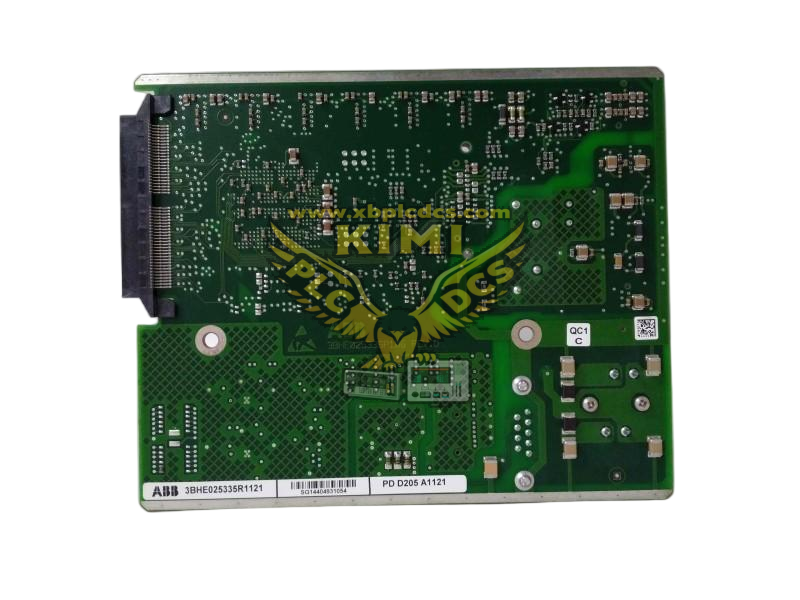

PDD205A1121 3BHE025335R1121 Power Distribution Module--KIMI
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
ABB PDD205A1121 3BHE025335R1121 Power Distribution Module (AC 800PEC Series)
Redundant Power Management & Protection for Industrial Control & Excitation Systems
1. Product Overview
The ABB PDD205A1121 (3BHE025335R1121) is a high-reliability power distribution module engineered for ABB’s AC 800PEC industrial control systems and UNITROL excitation systems, serving as a centralized power hub for distributing stable, isolated power to control modules, I/O units, and communication devices. It features dual-redundant input channels, intelligent load balancing, and integrated overcurrent/overvoltage/short-circuit protection, ensuring uninterrupted power supply even during single-input failure. With channel-to-channel isolation (2500 VAC), conformal coating, and a wide operating temperature range (-25°C to +70°C), this module delivers robust performance in harsh industrial environments with high electromagnetic interference (EMI), vibration, and humidity. Designed for DIN-rail mounting and hot-swap compatibility, it minimizes maintenance downtime and simplifies system expansion, making it ideal for power generation, petrochemical, metallurgical, and heavy manufacturing applications.
2. Key Technical Specifications
• Brand & Model: ABB PDD205A1121 3BHE025335R1121
• Product Type: Redundant Power Distribution Module (AC 800PEC Series)
• Core Function: Power Distribution, Redundancy Management, Overload/Short-Circuit Protection
• Input Voltage: 2 x 24 VDC (Redundant; Input Range: 18 VDC - 32 VDC)
• Output Channels: 8 Isolated Outputs (24 VDC, 2 A Per Channel; 16 A Total)
• Isolation Rating: 2500 VAC (Input-to-Output; Channel-to-Channel)
• Protection Features: Overcurrent, Overvoltage, Short-Circuit, Reverse Polarity Protection
• Load Balancing: Intelligent Automatic Load Sharing Between Redundant Inputs
• Operating Temperature: -25°C to +70°C; Storage Temperature: -40°C to +85°C
• Mounting Type: TS35 DIN-Rail Mountable
• Physical Dimensions: 120 mm × 150 mm × 60 mm; Weight: 0.8 kg
• Environmental Protection: Conformal Coating (IP20 Ingress Protection)
• Certifications: CE, UL 508, IEC 61010-1, RoHS Compliant
3. Core Features
• Dual-Redundant Inputs: Automatic switchover between two 24 VDC inputs for uninterrupted power supply.
• 8 Isolated Outputs: Channel-to-channel isolation prevents cross-talk and fault propagation between loads.
• Integrated Protection: Multi-layer protection against overcurrent, overvoltage, short-circuits, and reverse polarity.
• Intelligent Load Balancing: Optimizes power distribution between redundant inputs to extend component lifespan.
• Hot-Swap Compatibility: Supports module replacement without system shutdown or power interruption.
• Rugged Industrial Design: Conformal coating and wide temperature range for harsh environment resilience.
• Status Monitoring: LED indicators for input power, output status, and fault alerts for quick diagnostics.
4. Typical Applications
• Power Generation: UNITROL Excitation Systems, Turbine Control Units, Generator Monitoring Systems.
• Petrochemical Industry: Refinery Process Control, Pipeline Monitoring, Compressor Control Systems.
• Metallurgical Processing: Steel Mill Furnace Control, Rolling Mill Automation, Material Handling Systems.
• Industrial Automation: AC 800PEC Control Systems, DCS I/O Module Power Supply, PLC Redundancy Units.
• Renewable Energy: Wind Turbine Converter Control, Solar Inverter Monitoring, Battery Energy Storage Systems.
5. Installation & Maintenance
Installation Steps
• Mounting: Secure module to TS35 DIN-rail in control cabinet; ensure 50 mm clearance for ventilation.
• Input Wiring: Connect dual 24 VDC power sources to redundant input terminals; verify polarity.
• Output Wiring: Connect field devices to 8 isolated output channels; use shielded cables for EMI-sensitive loads.
• Testing: Power on module; check LED indicators for normal operation; verify output voltage with multimeter.
Maintenance Tips
• Daily: Inspect LED status (Power, Fault, Output Active); monitor system logs for power anomalies.
• Weekly: Tighten input/output terminal screws; check for loose connections or corrosion.
• Monthly: Test redundant input switchover by disconnecting one input; verify load continuity.
• Quarterly: Measure output voltage stability; check isolation resistance with a megohmmeter.
• Annual: Replace aging capacitors; clean module surface with dry compressed air.
Technical Document | ABB PDD205A1121 3BHE025335R1121 | Power Distribution Module | AC 800PEC Series
