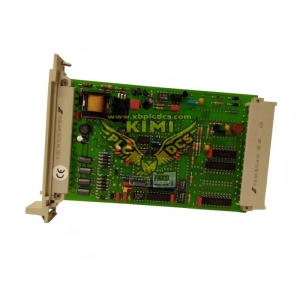

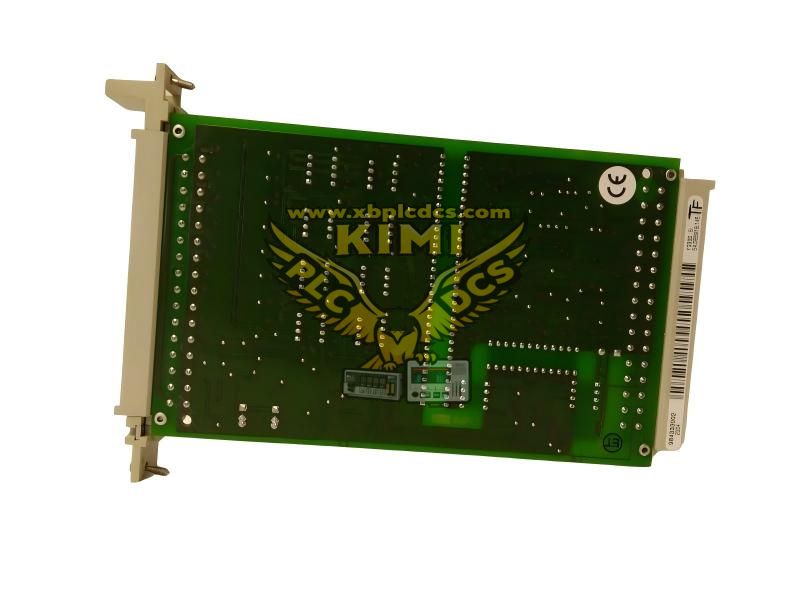

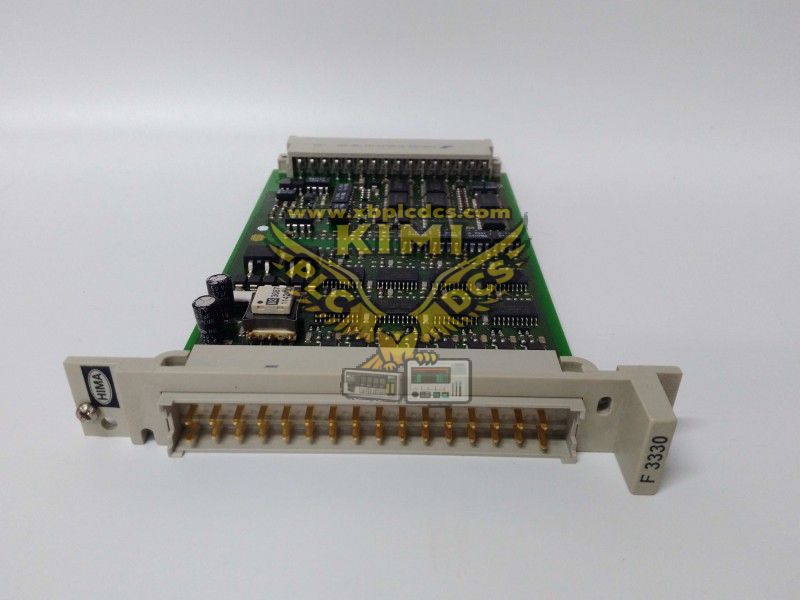

HIMA F3330 8‑Channel Safety Digital Output Module--KIMI
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
HIMA F3330 8‑Channel Safety Digital Output Module
Safety‑Related Digital Output Module for HIMatrix F3 Series SIS, SIL3 Certified for Critical Actuator Control
1. Product Overview
The HIMA F3330 is an 8‑channel safety digital output module belonging to HIMA's HIMatrix F3 series, specifically designed for safety‑critical industrial applications. It is certified to TÜV AK6/SIL3 (compliant with IEC 61508 and IEC 61511) and features integrated safety shutdown, safe channel‑to‑channel isolation, and short‑circuit protection. This module drives resistive/inductive loads up to 500 mA (12 W) and lamp loads up to 4 W, making it ideal for controlling valves, relays, and other actuators in emergency shutdown (ESD), safety interlock, and process protection systems.
2. Key Technical Specifications
• Product Type: 8‑Channel Safety Digital Output Module (Safety‑Related)
• Brand & Model: HIMA F3330 (HIMatrix F3 Series)
• Output Channels: 8 Independent Safety Digital Output Channels
• Load Capacity: 500 mA (12 W) per Channel (Resistive/Inductive), 4 W (Lamp Load)
• Output Voltage: 24 V DC (L‑ Supply Dependent)
• Internal Voltage Drop: Max. 2 V at 500 mA Load
• Short Circuit Protection: Short‑Circuit Proof (0.75‑1.5 A Short Circuit Current)
• Safety Isolation: Class AK 1‑6 (TÜV Compliant)
• Undervoltage Tripping: ≤16 V (L‑ Supply Break Triggers Safety Shutdown)
• Leakage Current: Max. 350 µA (Output Reset State)
• Power Supply: 5 V DC (100 mA), 24 V DC (200 mA)
• Operating Temperature: -20°C to +60°C (-4°F to +158°F)
• Protection Class: IP20 (Indoor Cabinet Mount)
• Space Requirement: 4 TE (DIN Rail Mount)
• Weight: 0.15 kg (0.33 lbs)
• Certification: TÜV AK6/SIL3, IEC 61508, IEC 61511
3. Core Features
• SIL3 Safety Compliance: TÜV AK6/SIL3 certified for safety‑critical applications.
• Integrated Safety Shutdown: Automatically Shuts Down Outputs on L‑ Supply Break or Faults.
• Safe Isolation: Channel‑to‑Channel & Power Isolation Prevents Cross‑Interference.
• Short‑Circuit Proof: Protects Module & Loads from Short‑Circuit Damage.
• Hot‑Swappable: Replaceable Without System Shutdown (Redundant Configurations).
• Built‑in Diagnostics: Real‑Time Monitoring of Load Status, Voltage, and Channel Health.
• Parallel Connection: Supports Parallel Outputs Without External Diodes.
4. Typical Applications
• Oil & Gas: Emergency Shutdown (ESD) Valves, Wellhead Safety Control, Pipeline Isolation.
• Chemical Industry: Reactor Safety Shutdown, Pressure Relief Valve Control, Hazardous Material Isolation.
• Power Generation: Boiler Protection Valves, Turbine Emergency Stop, Flue Gas Damper Control.
• Pharmaceutical: Production Line Safety Interlock, Cleanroom Access Control.
• Water & Wastewater: Sewage Treatment Plant Chemical Dosing Control, Pump Safety Shutdown.
5. Installation & Maintenance
• Mounting: 4 TE DIN Rail Mount in HIMatrix I/O Racks (Max. 10 Modules per Rack).
• Wiring: Use Shielded Cables; Ensure L‑ Supply Integrity for Safety Shutdown Function.
• Configuration: Use HIMA HIMatrix Engineering Studio to Set Load Type & Safety Parameters.
• Maintenance: Hot‑Swappable (Redundant Configurations); Diagnostic Logs for Fault Tracing.
• Lamp Load Setup: For 4‑10 W Lamp Loads, Use External 4.7 Ω/1 W Resistor (Part No. 010685479).
Technical Document | HIMA F3330 | 8‑Channel Safety Digital Output Module | SIL3 Safety Certification
