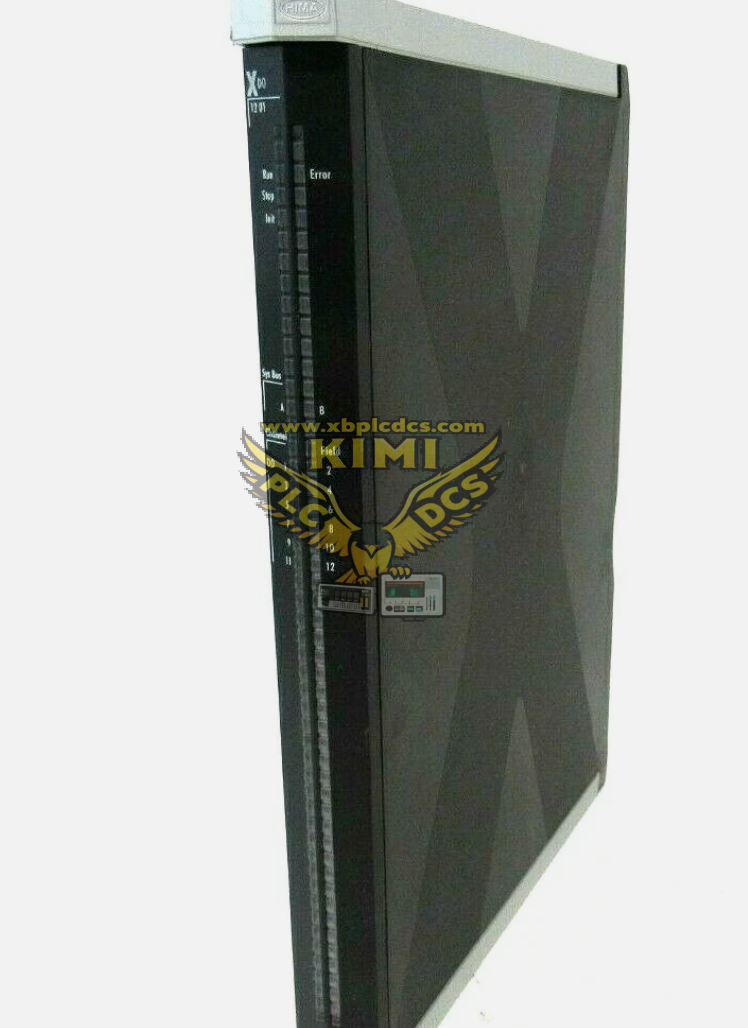

HIMA X-DO 32 01 32-Channel Safety Digital Output Module

Product Brief Description

The HIMA X-DO 32 01 is a high-performance 32-channel safety digital output module purpose-built for the HIMA HIMax and HIQuad X series safety control system platforms. Manufactured by the world-renowned German industrial functional safety specialist HIMA (also known as "Black Horse"), it has obtained full TÜV SIL 3 safety certification in compliance with IEC 61508, ISO 13849 PL e and Cat. 4 safety standards. As the core execution output unit of the safety instrumented system (SIS), it accurately outputs safety control commands to on-site actuators such as solenoid valves, safety relays and contactors, delivering ultra-high reliability performance for critical safety protection scenarios across heavy industrial industries.

Core Technical Specifications

• Channel Configuration: 32 independent galvanically isolated safety digital output channels, supporting PNP/NPN transistor output configurable on demand
• Electrical Specifications: 24V DC ±10%~15% wide voltage supply, maximum 2A per channel, total module output current up to 16A, built-in independent channel short-circuit protection
• Safety Performance: MTTFD (Mean Time To Dangerous Failure) > 100 years, FIT (Failure In Time) < 1 time/10⁹ hours, critical fault diagnostic coverage ≥ 99%
• Response Performance: Output action delay < 1ms, fully meeting the fast interlock response requirements of emergency safety protection scenarios
• Communication Capability: Equipped with dual redundant 100Mbps SafeEthernet ports and PROFIBUS-DP redundant interface, supporting daisy-chain expansion up to 16 modules
• Environmental Adaptation: Operating temperature range -25°C to +70°C, storage temperature -40°C to +85°C, maximum 95% non-condensing relative humidity, IP20 protection rating
• Physical Parameters: Dimensions 310mm × 29mm × 230mm, net weight about 1.0-1.2kg, standard 19-inch industrial rack mounting design

Key Product Features

• High-density 32-channel integrated design, which can save more than 50% of control cabinet space compared with traditional 16-channel DO modules, effectively reducing system construction cost and wiring workload
• Adopts dual hardware redundant (dual CPU + dual power supply) architecture, channel automatic switchover time < 20ms, no interruption of safety output even if main channel fails
• Full-channel independent real-time monitoring function, automatically detecting load disconnection, overcurrent, short-circuit and other abnormal states, accurately locating faulty channels and uploading diagnostic information to the system in time
• Supports hot-swap online maintenance, allowing maintenance personnel to replace faulty modules without shutting down the running safety system, and will not affect the normal operation of other output channels and safety logic
• Channels are fully isolated at 500V AC level, effectively preventing fault crosstalk between different field devices and avoiding single-point fault from spreading to the entire system
• Seamlessly compatible with HIMA X-FTA series field terminal assemblies, no extra signal conversion accessories are needed, and the standardized wiring process greatly simplifies engineering commissioning difficulty

Common Application Scenarios

• Emergency Shutdown (ESD) systems in petrochemical and refining facilities: driving safety solenoid valves to shut down process pipelines and cut off fuel supply when abnormal conditions are detected
• Boiler MFT protection systems in thermal power plants and nuclear power stations: outputting trip signals to protect boiler safety when operating parameters exceed safety limits
• HIPPS high integrity pressure protection systems for natural gas long-distance transmission pipelines: rapidly closing shutoff valves to prevent overpressure damage to downstream equipment
• Fire & Gas (F&G) monitoring systems in hazardous chemical workshops: triggering exhaust fans, fire doors, audible and visual alarms and other linkage safety actions
• Safety interlock control units for high-risk production links in metallurgy, pharmaceutical manufacturing, rail transit signal control and other industries

Installation and Configuration Guidelines

• This module must be installed in the dedicated slot of HIMA HIMax/HIQuad X series redundant baseplate, and it is strictly forbidden to use it in non-matching old HIMA system platforms without configuration verification
• Before on-site wiring, confirm that the actual load current of each channel does not exceed the rated maximum current, and it is recommended to configure independent channel fuses for large-current loads for auxiliary protection
• Complete safety logic configuration and channel fault-safe state setting through HIMA Safety Suite engineering software, and perform full-channel point-by-point action verification after configuration is completed
• Signal cables from the FTA terminal board to on-site actuators should be routed separately from high-power power cables, and the single-end shielding of cables should be reliably connected to the cabinet ground to avoid electromagnetic interference
