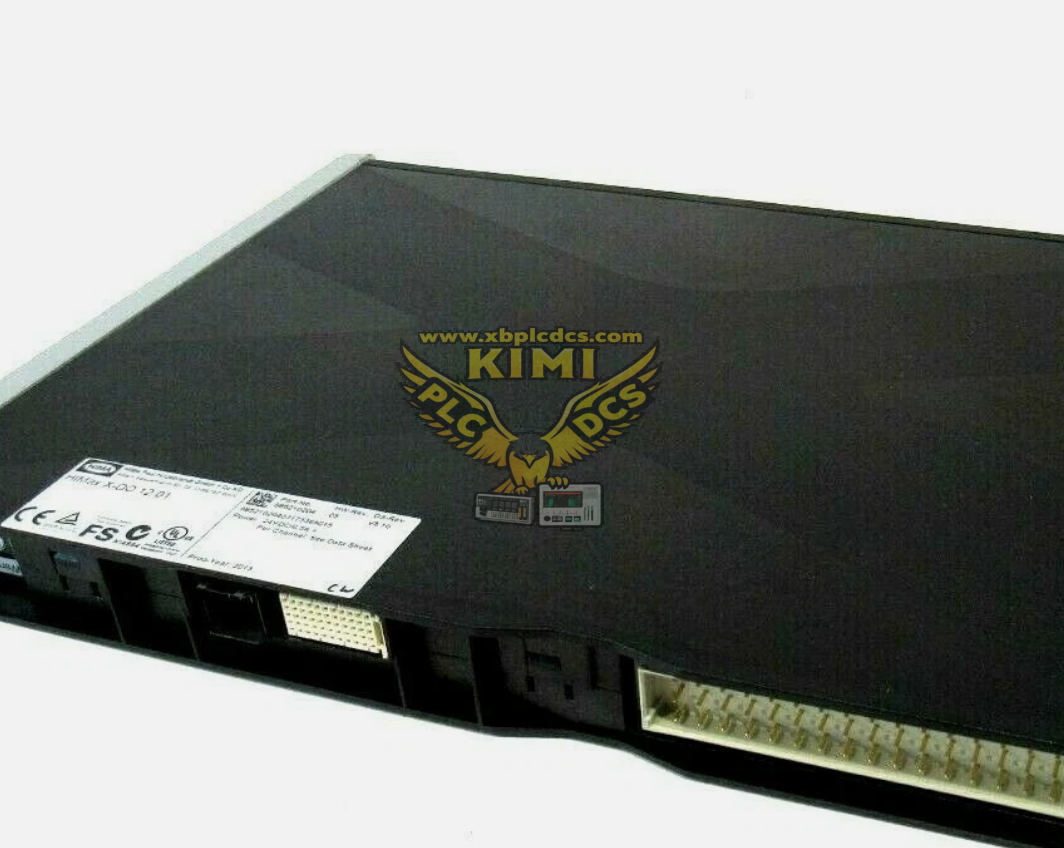

HIMA X-DO 32 51 32-Channel Safety Digital Output Module

Product Brief Description

The HIMA X-DO 32 51 is a high-density 32-channel safety digital output module purpose-built for the HIMA HIMax series safety control system platform. Manufactured by the world-renowned German functional safety specialist HIMA, it is fully certified to IEC 61508 SIL 3 and ISO 13849 PL e safety standards. It is the core execution output unit of the safety instrumented system, responsible for driving on-site safety actuators such as solenoid valves, contactors and safety relays, and has been widely used in critical safety protection scenarios across global heavy industrial industries.

Core Technical Specifications

• Channel Configuration: 32 independent galvanically isolated digital output channels, supporting high-density centralized output of multiple safety control signals
• Rated Output Specification: Each channel supports 24V DC driving voltage, with a maximum single-channel load current of 0.5A, suitable for most on-site safety solenoid valves and relay loads
• Safety Response Performance: Full-channel safety response delay ≤ 10ms, meeting the fast action requirements of emergency safety interlock logic
• Operating Environment: Operating temperature range -20°C to +60°C, storage temperature range -40°C to +85°C, IP20 protection rating
• Physical Parameters: Dimensions 230mm × 29.2mm × 310mm, net weight about 1.4kg, standard 19-inch rack mounting design
• Safety Architecture: Adopts 2oo3 fault-tolerant voting design, with fault self-diagnostic coverage exceeding 99%

Key Product Features

• Industry-leading 32-channel high-density design, which can save more than 50% of cabinet space compared with traditional 16-channel DO modules, effectively reducing system construction cost and engineering wiring workload
• Every output channel is equipped with independent load monitoring function, which can real-time detect load disconnection, short circuit and coil abnormal fault, automatically upload diagnostic information and help maintenance personnel quickly locate hidden dangers
• Built-in overcurrent and overvoltage protection mechanism, automatically cuts off the output when the load is abnormal to prevent field device damage, and automatically returns to normal operation after the fault is eliminated
• Supports hot-swap online replacement, allowing on-site maintenance personnel to replace faulty modules without shutting down the running safety system, which will not affect the normal execution of other safety output logic
• All channels achieve 1500V AC electrical isolation performance, effectively preventing the fault of a single field device from spreading to the system side and affecting the normal operation of other channels
• Seamlessly compatible with HIMA X-FTA002 supporting field terminal assembly, directly realizing fast and standardized wiring between the system side and field equipment, and greatly simplifying the engineering commissioning process

Common Application Scenarios

• Emergency shutdown (ESD) system in petrochemical and refining facilities: driving safety solenoid valves for process pipeline shutoff, emergency fuel cut-off and other actions
• Boiler MFT protection system in thermal power plants: outputting trip signals to shut down the fuel supply, air supply and other units of the boiler to avoid major safety accidents
• HIPPS high integrity pressure protection system for natural gas long-distance transmission pipelines: rapidly closing the pipeline shutoff valves when the pressure is abnormal to prevent overpressure damage to downstream equipment
• F&G fire and gas monitoring system in hazardous chemical workshops: outputting alarm and interlock signals to trigger exhaust fan start, fire door closing and emergency shutdown actions
• Safety interlock execution units for high-risk production links in metallurgy, pharmaceutical manufacturing and rail transit safety control systems

Installation and Configuration Guidelines

• This module must be installed in the dedicated slot of HIMA HIMax series redundant baseplate, and used in conjunction with X-series CPU modules and matching FTA terminal boards
• Before on-site wiring, confirm that the load parameters of each channel do not exceed the maximum 0.5A current limit, and configure independent circuit fuses for high-power loads as auxiliary protection
• Use HIMA Safety Suite engineering software for configuration, set the fault safe state of each channel according to the safety design requirements, and verify the output response action of each channel point by point after configuration
• The signal cables between the FTA and the field actuator should be arranged separately from the high-power power cables, and the cable shielding layer should be reliably grounded at the single end of the control cabinet to avoid electromagnetic interference
