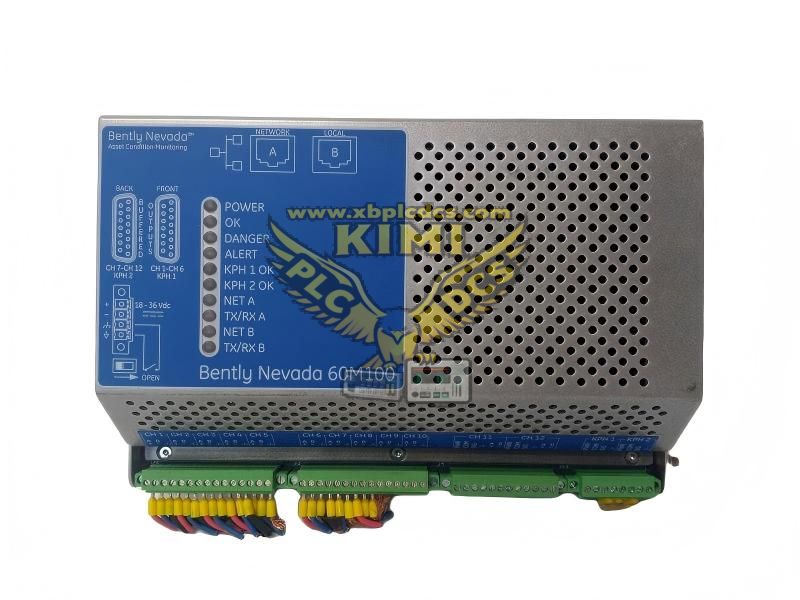

Bently Nevada 60M100-00 Wind Turbine Condition Monitoring System
Product Description
The Bently Nevada 60M100-00 is a purpose-built, high-reliability condition monitoring system engineered exclusively for continuous, permanent protection of wind turbine generator machine trains, including tower sway, main bearings, gearboxes, generator components, and debris monitoring. Developed by Bently Nevada (a Baker Hughes business), this modular monitoring unit integrates 24-bit Sigma-Delta A/D conversion, 12 dynamic signal inputs, 2 Keyphasor inputs, and dual redundant Ethernet ports to deliver 110 dB dynamic range, 0–40 kHz bandwidth, and real-time fault detection—critical for maximizing turbine uptime, reducing maintenance costs, and ensuring compliance with wind farm reliability standards.
Key Functions
The 60M100-00 provides comprehensive, real-time monitoring and predictive diagnostics for wind turbine drivetrains, with the following core capabilities: 12 dynamic signal inputs (for vibration, strain, temperature) and 2 Keyphasor inputs (for speed/phase reference); 24-bit Sigma-Delta A/D conversion with 102.4 ksps sampling rate, 110 dB dynamic range, and 0–40 kHz bandwidth; dual independent Ethernet ports (Net A: DHCP, Net B: static IP) for secure data transfer to SCADA/condition monitoring platforms; buffered signal outputs (two 15-pin DSUB connectors, 550 ohm impedance) for secondary monitoring/analysis; built-in health diagnostics, alarm thresholds, and fault waveform capture; and compliance with IEC 61400 wind turbine standards and ISO 10816 vibration severity guidelines.
Application Scenarios
The 60M100-00 is optimized for utility-scale wind farms, offshore wind installations, and industrial wind power systems, where continuous monitoring of turbine drivetrains is mandatory. It is deployed to monitor tower sway (structural health), main bearings (wear/fatigue), main rotor (imbalance/misalignment), gearboxes (gear mesh damage, bearing failure), generator bearings (vibration/overheating), and debris in lubrication systems. By providing early fault detection, predictive maintenance triggers, and compliance reporting, the system minimizes unplanned downtime, extends component lifespan, and ensures grid code complia
nce for wind farm operators.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Wind Turbine Condition Monitoring System (Modular Monitoring Unit) |
| Manufacturer | Bently Nevada (Baker Hughes Business) |
| Model/Part Number | 60M100-00 |
| Input Power | 18–36 VDC; Max Current 1.7 A; Inrush Current 2.7 A (≤5 ms) |
| Input Channels | 12 Dynamic Signal Inputs (for Vibration/Strain/Temperature); 2 Keyphasor Inputs (Speed/Phase Reference) |
| Signal Processing | 24-bit Sigma-Delta A/D Conversion; 102.4 ksps Sampling Rate; 110 dB Dynamic Range; 0–40 kHz Bandwidth |
| Communication Interfaces | Dual 10/100 BaseT Ethernet Ports: Net A (DHCP Network Port), Net B (Static IP Local Port); Buffered Signal Outputs (2x 15-pin DSUB, 550 Ω Impedance) |
| Operating Environment | Temperature: -40°C to +70°C (-40°F to +158°F); Humidity: 5–95% RH (Non-Condensing); Vibration: Compliant with IEC 61400-1 |
| Certifications & Standards | IEC 61400 (Wind Turbines); ISO 10816 (Vibration Severity); CE; UL; ATEX/IECEx (Hazardous Locations) |
| Mechanical Features | Modular Rack-Mount Design; Front-Panel Status LEDs; 2x 15-pin DSUB Buffered Output Connectors; IP20 Protection (Indoor Use) |
| Key Diagnostics | Tower Sway, Bearing Wear, Gear Mesh Damage, Rotor Imbalance, Debris Monitoring, Generator Grounding Integrity |
