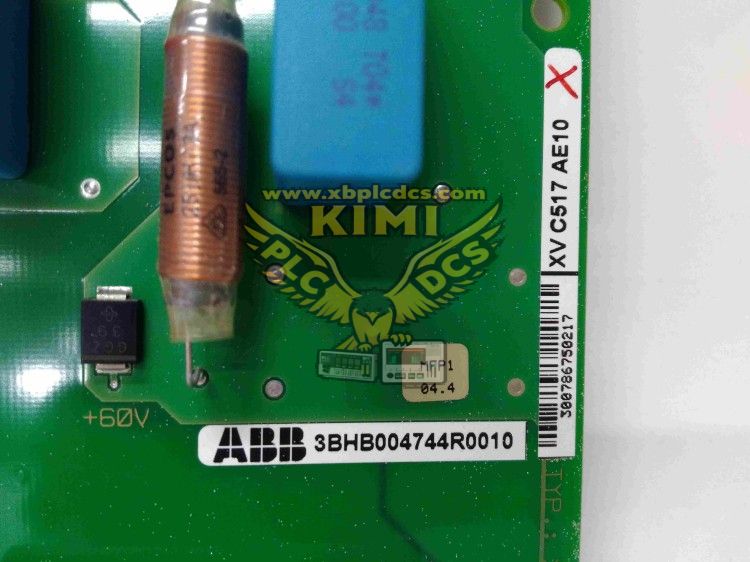

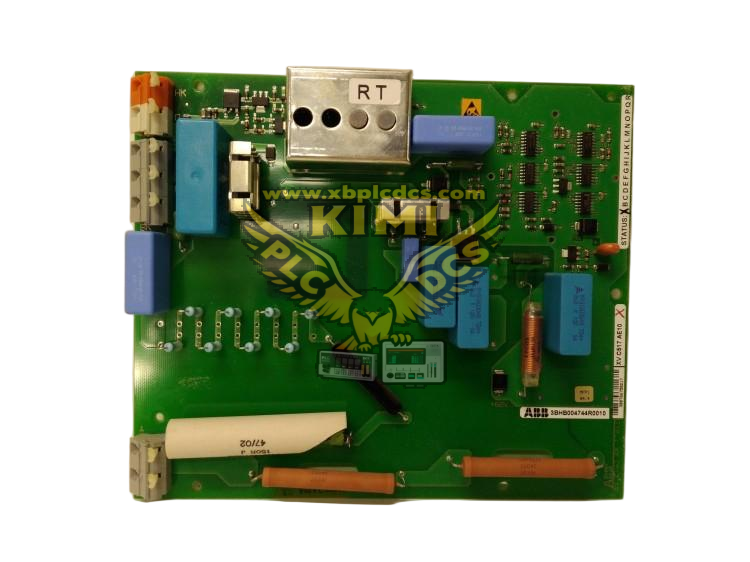

ABB XVC517AE10 (3BHB004744R0010) Excitation Control Module
The ABB XVC517AE10 (order code: 3BHB004744R0010) is a high-performance excitation control module specifically engineered for industrial power systems, focusing on synchronous generator excitation regulation. As a core component in power generation infrastructure, it delivers precise control of generator field current, ensuring stable voltage output, optimal energy conversion efficiency, and reliable operation of power plants and industrial power networks.
General Information
Model Number: XVC517AE10
Order Code: 3BHB004744R0010
Product Category: Industrial Generator Excitation Control Module
Brand Series: ABB Industrial Power Control Product Line
Physical Specifications
- Frame Size: Standard 19-inch rack-mount design, compatible with industrial control cabinets
- Dimensions (H x W x D): Approx. 177 mm x 448 mm x 300 mm (7.0 in x 17.6 in x 11.8 in)
- Net Weight: Approximately 5.8 kg (12.8 lbs), facilitating easy installation and maintenance
Mounting Type: Rail-mounted or rack-mounted, adaptable to different cabinet layouts
Core Features
High-Speed Switching Capability
Boasts microsecond-level switching response for real-time adjustment of generator field current, adapting quickly to load fluctuations and grid voltage changes to maintain system stability.
Low Power Consumption
Optimized circuit design reduces self-power consumption to a maximum of 35 W under full load, cutting energy costs for long-term industrial operation and reducing heat generation.
Comprehensive Protection Mechanisms
Integrates overcurrent, overvoltage, undervoltage, and overtemperature protection; automatically triggers fault isolation to prevent damage to the module and generator, ensuring system safety.
Compact and Lightweight Design
Space-saving form factor fits in dense control cabinets, reducing installation footprint; lightweight construction simplifies on-site assembly, disassembly, and maintenance work.
Precise Excitation Regulation
Adopts advanced PID control algorithm with voltage regulation accuracy of ±0.5%, ensuring stable generator output voltage and improving power quality for grid connection.
Application Scope
Power Electronics
Used in power conversion systems, grid-connected inverters, and power quality control devices to regulate excitation signals and enhance energy conversion efficiency.
Renewable Energy Systems
Integrated into wind power, solar power, and hydroelectric generation systems to control generator excitation, optimizing power output and grid compatibility.
Motor Drives
Applied in large synchronous motor drives for industrial machinery (e.g., pumps, fans, compressors) to adjust motor excitation, improving starting performance and operational efficiency.
Industrial Automation
Integrated into industrial power system automation platforms, enabling remote monitoring and control of excitation parameters to support intelligent operation of power plants.
Technical Parameters
| Parameter | Specification |
|---|---|
| Input Voltage | 24 VDC ±10% (power supply); 100-240 VAC (auxiliary power, optional) |
| Output Current Range | 0-10 A DC (continuous); 20 A DC (peak, 10s) |
| Voltage Regulation Accuracy | ±0.5% (steady state) |
| Operating Temperature | -25°C to +70°C (-13°F to 158°F) |
| Communication Interface | RS-485, Ethernet; Supports Modbus TCP, IEC 61850 |
| Humidity Resistance | 5% to 95% (non-condensing) |
Quality Assurance and Service
Warranty Period: 24 months from the date of delivery, covering manufacturing defects and component failures under normal operating conditions.
After-Sales Support: ABB provides global technical consulting, on-site maintenance, and spare parts supply; Online troubleshooting and firmware update services are available 24/7.
Compliance Certifications: Meets IEC 61010, UL 61010, and CE safety standards, ensuring compliance with industrial power system regulations worldwide.
Note: For detailed integration guidelines, firmware versions, and customized technical support, refer to ABB’s official documentation or contact ABB Industrial Power Systems technical services. Specifications are subject to change without prior notice.
