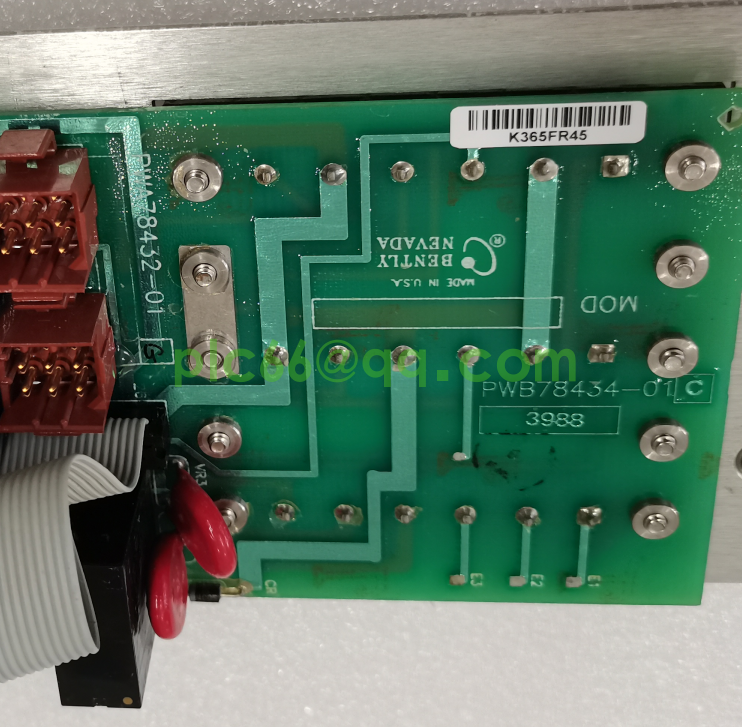

Bently Nevada PWB78434-01 & PWA78432-01 for 3500/40M 4-Channel Proximitor Monitor--KIMI
- Part number：PWB78434-01
- Product Origin：America
- HS CODE：8708299000
- Warehouse: Spot
- Warranty： 365 days
- Quality: Original module
- Condition： New
- Shipping method: Courier delivery
- Contact person: LI MING
- Contact number: +86 18059884790
- WeChat：18059884790
- E-mail: plc66@qq.com
Product Description
Bently Nevada PWB78434-01 & PWA78432-01 for 3500/40M 4-Channel Proximitor Monitor
Core Signal Processing & Power Input PCB Set for Machinery Protection & Vibration/Displacement Monitoring
1. Product Overview
The Bently Nevada PWB78434-01 and PWA78432-01 form a matched PCB set for the 3500/40M 4-Channel Proximitor Monitor, a critical part of the 3500 machinery protection system. PWB78434-01 acts as the core signal processing board, handling 4-channel proximity sensor input, data calculation, and alarm comparison. PWA78432-01 serves as the power input board, providing stable power conversion and distribution to the signal processing circuitry via the 3500 rack backplane. Together, they enable real-time monitoring of shaft displacement, vibration, and position for turbines, compressors, motors, and other rotating machinery in power generation, oil & gas, and heavy manufacturing. Both boards are designed for hot-swappable integration with 3500 racks and support independent channel configuration through 3500 software.
2. Key Technical Specifications
PWB78434-01 (Signal Processing PCB for 3500/40M)
• Brand & Model: Bently Nevada PWB78434-01
• Type: Core Signal Processing PCB for 3500/40M 4-Channel Proximitor Monitor
• Channels: 4 Independent Channels (3300 XL/3300 Series Proximity Sensor Input)
• Core Function: Signal Processing, Displacement/Vibration Measurement, Alarm Logic
• Configuration: Via 3500 Rack Configuration Software (Sensitivity, Range, Alarms)
• Power: 3500 Rack Backplane (Supplied by PWA78432-01)
• Power Consumption: 3.5W (Typical)
• Certifications: CE, CSA/NRTL/C (Class 1, Div 2), ATEX/IECEx (Zone 2)
• Operating Temp: -40°C to +70°C (-40°F to +158°F)
PWA78432-01 (Power Input PCB for 3500/40M)
• Brand & Model: Bently Nevada PWA78432-01
• Type: Power Input & Distribution PCB for 3500/40M Module
• Core Function: Power Conversion, Backplane Power Regulation, Circuit Protection
• Input Power: 3500 Rack Backplane Power
• Output Power: Regulated Power for PWB78434-01 & Module Circuits
• Protection: Overvoltage, Overcurrent, Reverse Polarity Protection
• Compatibility: 3500/40M Module, 3500 System Rack
• Operating Temp: -40°C to +70°C (-40°F to +158°F)
• Form Factor: PCB Board for 3500/40M Module (Full-Height)
3. Core Features
Shared Features
• 3500 System Integration: Hot-Swappable with 3500 Racks for Easy Maintenance
• Industrial Hardened Design: Resistant to Shock, Vibration, & Temperature Extremes
• Hazardous Location Certified: Safe for Class I, Div 2 / Zone 2 Hazardous Areas
• Module Compatibility: Exclusively for 3500/40M 4-Channel Proximitor Monitor
PWB78434-01 Exclusive Features
• 4 Independent Channels: Separate Configuration for Sensitivity, Range, & Alarms
• Real-Time Processing: High-Speed Data Acquisition & Measurement Calculation
• LED Status Indicators: Channel Health & Alarm Trigger Visualization
PWA78432-01 Exclusive Features
• Stable Power Delivery: Regulated Output for Consistent Signal Processing
• Multi-Protection Mechanisms: Safeguards Against Power Anomalies
• Backplane Compatibility: Seamless Power Communication with 3500 Rack
4. Typical Applications
• Power Generation: Turbine/Generator Shaft Displacement & Vibration Protection
• Oil & Gas: Compressor/Pump Rotor Position Monitoring in Hazardous Areas
• Petrochemical: Reactor Agitator Vibration Measurement & Alarm Management
• Heavy Manufacturing: Motor/Gearbox Shaft Health Monitoring & Troubleshooting
• Marine Propulsion: Main Engine Shaft Position Protection (Shipboard Use)
• Mining: Crusher/Conveyor Rotor Displacement Monitoring (Multi-Channel Protection)
5. Installation & Maintenance
Installation Steps
• Mounting: Install both PCBs into 3500/40M Module Housing (Secure Backplane Connection)
• Wiring: Connect PWA78432-01 to 3500 Rack Power; PWB78434-01 to Proximity Sensors
• Configuration: Set Channel Parameters via 3500 Software (Sensitivity, Alarms)
• Testing: Verify Power Stability, Signal Reception, & Alarm Trigger Accuracy
Maintenance Tips
• Daily: Check Module LEDs for Power & Channel Status
• Weekly: Inspect PCB Connectors for Loose/Faulty Connections
• Monthly: Validate Power Output (PWA78432-01) & Signal Processing (PWB78434-01)
• Quarterly: Test Hot-Swap Functionality & Backplane Power Compatibility
• Annual: Calibrate Channels & Update Firmware (Per Bently Nevada Guidelines)
Technical Document | Bently Nevada PWB78434-01 & PWA78432-01 | 3500/40M Proximitor Monitor PCBs | Machinery Protection Systems
