The Bently Nevada 3500/22M with the I/O Module 146031-01 is a critical component of the Bently Nevada 3500 Machinery Protection System.

This is not a safety system like Triconex, but a condition monitoring and protection system for rotating machinery.

Here's a breakdown of what the part numbers signify:

• 3500/22M: This is the Transient Data Interface (TDI) module itself. It's a "data gateway" for the 3500 monitoring system.

• Its primary role is to act as the interface between the 3500 rack and Bently Nevada's System 1® machinery management software.

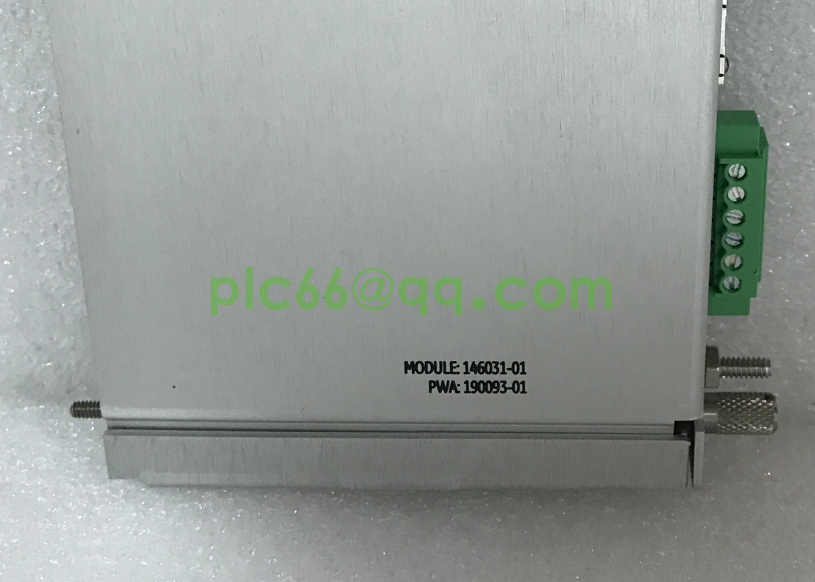

• 146031-01: This is the specific I/O Module that works with the 3500/22M. It provides the physical connectivity and communication capabilities for the TDI.

• In this case, the "-01" suffix indicates it's a 10Base-T/100Base-TX Ethernet I/O module, which uses standard Ethernet cables (RJ-45 connectors) for communication.

Key Functions and Features

The 3500/22M with the 146031-01 I/O module serves several important functions:

• Data Collection: It continuously collects both steady-state (e.g., overall vibration, shaft position) and transient dynamic (waveform) data from the various monitor modules within the 3500 rack.

• Communication Interface: It sends this collected data via the Ethernet link to a host computer running condition monitoring software like System 1.

• This allows for detailed analysis of machine health, including vibration analysis, diagnostics, and long-term trend monitoring.

• Rack Interface Module (RIM) Functionality: The TDI combines the function of the older 3500/20 Rack Interface Module (RIM) with the data collection capability of a separate communication processor.

• This integration makes the system more efficient and simplifies the rack configuration.

• Configuration and Diagnostics: The module also provides a USB port on the front panel for local configuration and troubleshooting of the 3500 rack.

• It also has LEDs to indicate the health and communication status of the module and the entire rack.

• Non-Critical Path: It's important to note that the TDI is not part of the critical monitoring path. It does not affect the proper, normal operation of the machinery protection functions (like alarm generation or machine trips).

• Its purpose is solely for data communication and system management.

• Triple Modular Redundancy (TMR) Support: A special TMR version of the TDI is available for systems configured with TMR.

• In a TMR system, the TDI performs "monitor channel comparison" to ensure that the redundant monitor modules are providing consistent and accurate data.
