The Bentley 3500/54M overspeed detection system is a redundant tachometer system from Bently Nevada, specifically designed as part of an overspeed protection system. It can be combined to form a redundant dual-channel or three-channel (recommended) voting system.

The Bentley 3500/54M overspeed detection system is a redundant tachometer system from Bently Nevada, specifically designed as part of an overspeed protection system. It can be combined to form a redundant dual-channel or three-channel (recommended) voting system. The 3500/54M module overspeed detection system requires the use of a 3500/05 frame with redundant power supplies. The 3500/54 monitor is only applicable to non-SIL application scenarios and is only suitable for applications that do not involve the overall process or machine safety life cycle design. 3701/55ADAPT ESD is recommended for all SIL application scenarios or mechanical command safety component application scenarios.

Each overspeed detection module can receive a single sensor signal from Bentley 3300XL eddy current sensor or magnetoresistance sensor. The sensor power supply is -24Vdc. The 3500 overspeed detection module supports 1 to 255 teeth, with a maximum full-scale range of 99,999 revolutions and a maximum input frequency of 20kHz.

Bentley Overspeed detection system 3500/54-AXX-BXX option, such as 3500/54-03-00

A: Channel option: 02 Dual-channel system; 03 Three-channel system

B: Institutional approval option: 00 None

Bentley 3500/54M spare parts part number and description

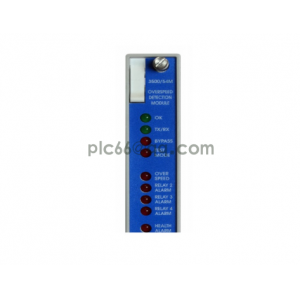

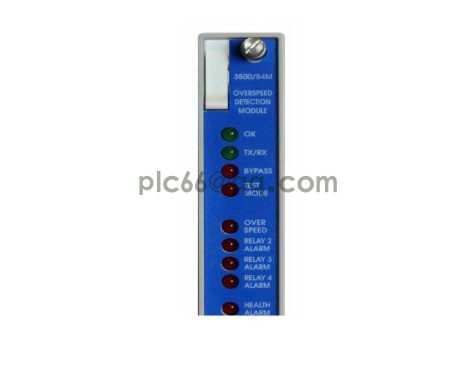

3500/54M(288062-01) 3500/54M Overspeed detection module front panel

Back panel of 3500/54M(133396-01) overspeed detection I/O module

The Bently Nevada 3500/54M Overspeed Detection Module is a vital safety component within the Bently Nevada 3500 Series Machinery Protection System. Its primary role is to provide highly reliable and rapid-response overspeed protection for critical rotating machinery.

What the 3500/54M Does

The 3500/54M is specifically designed to:

• Detect Overspeed Conditions: It continuously monitors the rotational speed of a machine using input from proximity probes or magnetic pickups.
• Provide Fast, Redundant Protection: When the machine's speed exceeds user-programmable setpoints, the module generates alarms and initiates trip actions through the 3500 system's relay modules. The "M" in 54M signifies an enhanced or newer version, often with improved diagnostic capabilities and potentially stricter compliance with standards like API 670 and API 612 for overspeed protection.
• Support Voting Logic: For critical applications, multiple 3500/54M modules can be configured in a 2-out-of-2 (2oo2) or 2-out-of-3 (2oo3) voting system. This redundancy ensures that a single sensor or module failure doesn't cause a false trip (nuisance trip) and that a genuine overspeed event reliably triggers a shutdown. This voting logic is essential for achieving the high levels of safety integrity required in process industries.
• Offer Comprehensive Speed Monitoring: Beyond simple overspeed, these modules can also be configured to monitor other speed-related parameters, such as rotor acceleration, reverse rotation, and zero speed.

Key Features and Benefits

• High Reliability: Designed with robust hardware and sophisticated algorithms to minimize the risk of both false trips and missed trips.
• Fast Response Time: Crucial for overspeed protection, as rapid shutdown can prevent catastrophic damage to machinery.
• Redundancy Options: Supports configurations (2oo2, 2oo3 voting) that meet stringent safety standards for critical turbomachinery.
• Flexible Input Compatibility: Accepts signals from common speed transducers like proximity probes (e.g., Bently Nevada 3300, 7200 Series) and magnetic pickups.
• Programmable Setpoints: Allows users to define multiple speed setpoints for different alarm and trip levels.
• Diagnostic Capabilities: Often includes features for monitoring the health of the speed input signal and the module itself.
• Integration with 3500 System: Seamlessly integrates with the rest of the 3500 rack, leveraging its power supplies, communications, and relay outputs.
• Meets Industry Standards: Designed to comply with key industry standards for turbomachinery protection, such as those from the American Petroleum Institute (API).

Typical Applications

The 3500/54M is indispensable for any critical rotating machinery where overspeed is a significant safety and operational concern. Its applications span various heavy industries:

• Steam Turbines: Protecting against overspeed conditions that could lead to blade failure or generator damage.
• Gas Turbines: Essential for ensuring safe operation, particularly during startup, shutdown, and load rejection.
• Compressors: Preventing dangerous overspeed that could damage impellers or cause structural failure.
• Generators: Protecting the generator and prime mover from overspeed events that exceed their design limits.
• Expanders: Critical in processes where gas expansion drives a turbine, requiring precise speed control and overspeed protection.
• Large Pumps and Fans: Although less common than on turbines and compressors, some high-speed or critical pumps and fans also utilize overspeed protection.

The 3500/54M module provides an essential layer of safety, ensuring that high-value assets are protected from damaging overspeed conditions, thereby minimizing risk, extending equipment life, and preventing costly unplanned downtime.
