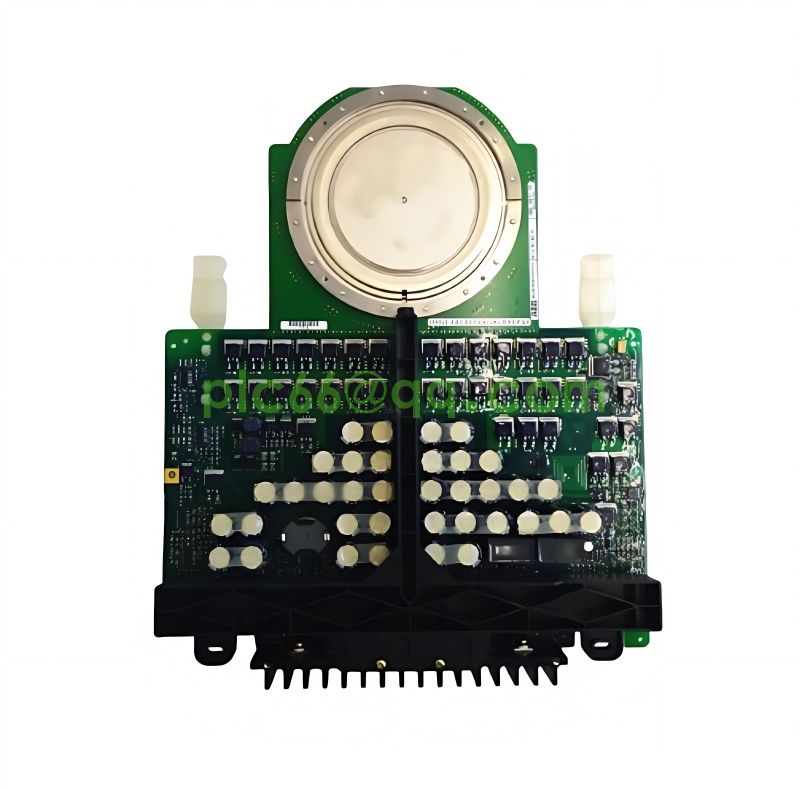

Product Model: ABB 5SHY3545L0009 (3BHB013085R0001) IGCT MODULE
1. Product Description
5SHY3545L0009 with part number 3BHB013085R0001 is an integrated gate-commutated thyristor (IGCT) power module manufactured by ABB for high-voltage and high-power industrial converters. This compact integrated power unit integrates IGCT chip, anti-parallel freewheeling diode and gate drive interface inside a sealed insulated metal package. It features ultra-low switching loss, high surge current withstand capability, reliable high voltage isolation and optimized thermal dissipation design. The module meets strict industrial power electronic standards and is built for long-term stable operation under heavy-load continuous working conditions.
Product ID: 3BHB013085R0001
ABB model name: 5SHY 3545L0009
Catalog description: 5SHY 3545L0009; IGCT MODULE
Origin: Switzerland
Product: IGCT MODULE
Net weight of the product: 3.4 kg
Replacement product ID (OLD): HL000986P3105
HB013085R0001
Replacement product ID (new): 3BHB030310R0001
2. Core Product Functions
- Control high-power AC-DC and DC-AC power conversion in medium voltage converter systems
- Fast bidirectional current switching with high-speed gate signal commutation
- Carry large rated load current and withstand short-time overload surge current
- Realize voltage inversion, frequency modulation and power flow regulation for power equipment
- Built-in freewheeling diode to absorb inductive reverse electromotive force
- Cooperate with gate driver unit to receive turn-on and turn-off control pulses
Transfer internal heat to external cooling system via base plate heat conduction
3. Application Scenarios
- Medium voltage variable frequency drives for large industrial motors
- Wind turbine full power converters and photovoltaic energy storage inverters
- High voltage static var compensator (SVC) and static synchronous compensator (STATCOM)
- Metallurgical medium voltage rolling mill main drive converter cabinets
- Hydropower and thermal power unit excitation control power cabinets
- Rail transit traction power supply and industrial high-power rectifier equipment
4. Common Problems & Troubleshooting
Q1: Converter reports module over-temperature fault during full-load operation
A: Clean cooling water channel or heat sink scale and dust; check cooling fan or water circulation flow rate; reapply thermal conductive grease between module base and cooling plate.
Q2: IGCT module breakdown and short circuit after startup
A: Detect abnormal overvoltage impact from grid fluctuation; check gate drive signal distortion or missing pulses; inspect insulation aging of module terminal busbar.
Q3: Unstable output current and severe waveform distortion
A: Check loose gate drive wiring terminals; replace aging gate drive board; verify consistency of all parallel IGCT modules’ switching performance.
Q4: Gate signal loss leads to module failure to switch on/off
A: Inspect gate cable breakage and connector oxidation; test auxiliary power supply of gate driver; replace damaged internal gate interface of the IGCT module.
