PP846 3BSE042238R1 Panel 800 Operator Panel HMI-KIMI

Part number：PP846 TES3BSE042238R1
Product Origin：Sweden
HS CODE：8443919090
Warehouse: Spot
Warranty： 365 days
Quality: Original module
Condition： New
Shipping method: Courier delivery

Contact person: LI MING
Contact number: +86 18059884790
WeChat：18059884790
E-mail: plc66@qq.com

Product Description

ABB PP846 | 3BSE042238R1

Panel 800 Operator Panel HMI for Industrial Automation & Process Control

1. Product Overview

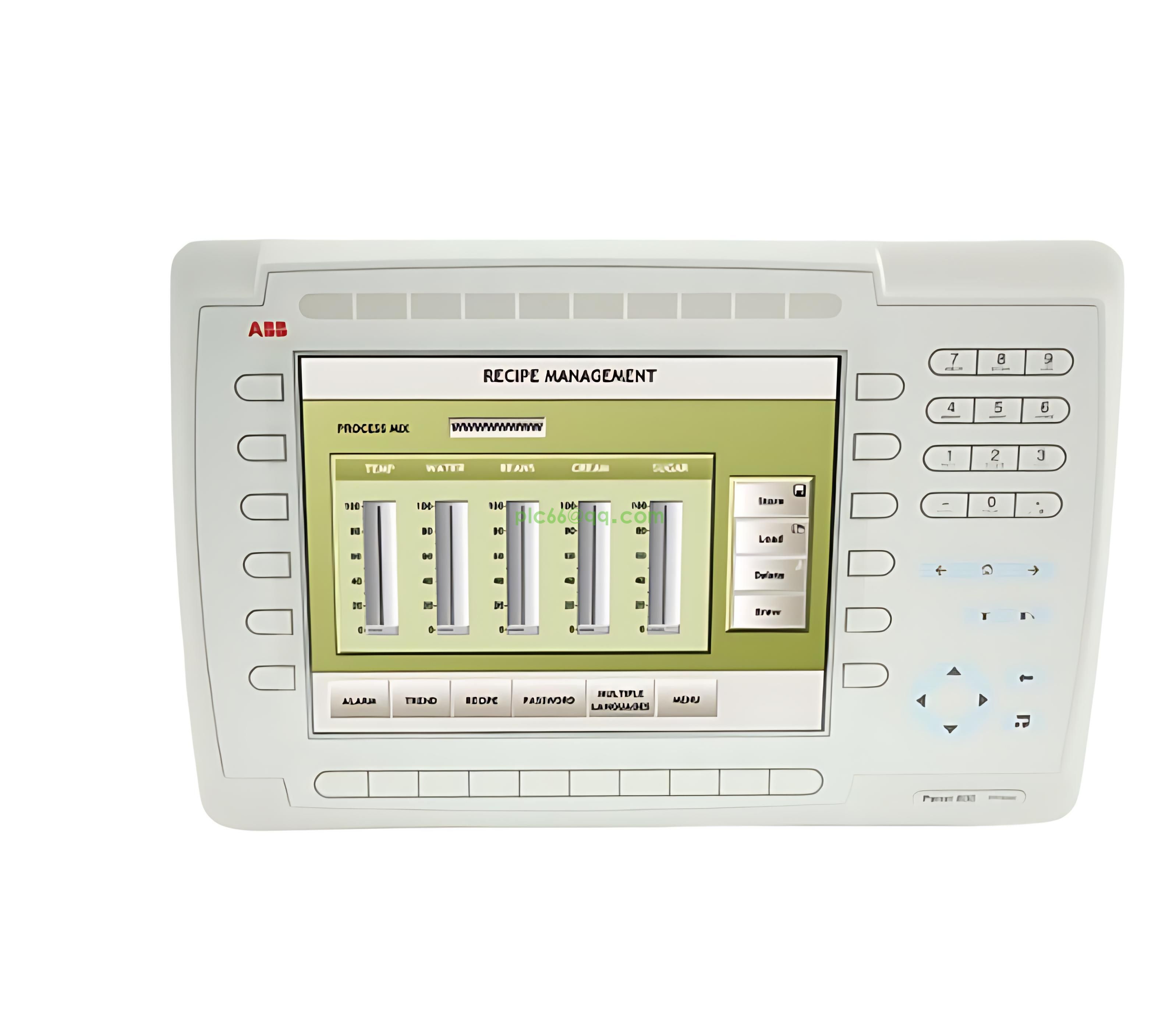

The ABB PP846 (3BSE042238R1) is a Panel 800 series operator panel HMI engineered for seamless integration with ABB AC 800M DCS, PROFIBUS DP networks, and third-party PLCs in industrial process control, manufacturing, and critical infrastructure monitoring. It features a 10.4-inch resistive touchscreen (640×480 resolution, 200 cd/m² brightness, 200:1 contrast) for reliable operation with gloves or stylus, a 266 MHz ARM9 processor, 32 MB RAM, and 32 MB flash storage for fast HMI application execution and data logging. The panel integrates 1x Ethernet (TCP/IP) and 1x PROFIBUS DP port for high-speed process data exchange, plus dual 24 Vdc redundant power inputs for uninterrupted operation. With real-time alarm management, trend visualization, and multi-language support (15+ languages), it empowers operators to monitor variables, acknowledge alarms, and execute control commands in harsh industrial environments (-20°C to +60°C) with IP65 front protection.

PP846 3BSE042238R1(1).png

Key Specifications

• Model: PP846 | Part Number: 3BSE042238R1 | Series: Panel 800 Operator Panel HMI

• Display: 10.4-inch Resistive Touchscreen; 640×480 Resolution; 200 cd/m² Brightness; 200:1 Contrast

• Processor & Memory: 266 MHz ARM9; 32 MB RAM; 32 MB Flash Storage

• Communication: 1× Ethernet (TCP/IP, Modbus TCP); 1× PROFIBUS DP (Master/Slave, 12 Mbps max)

• Power: 18–32 Vdc (24 Vdc nominal); Dual Redundant Inputs; Power Consumption<10 W

• Performance: HMI Update Rate<500 ms; Max Tags 10,000; Data Logging 100,000 Events

• Environmental: Operating -20°C to +60°C; Storage -40°C to +85°C; Humidity 5–95% (non-condensing)

• Mechanical: IP65 Front Protection; DIN-Rail or Panel Mount; 275×215×55 mm; Weight 1.8 kg

• Certifications: IEC 61131-3, CE, UL 508, RoHS Compliant

2. Core Features

• Robust Resistive Touchscreen: Operates reliably with gloves/stylus; 1 million+ touch cycles for long service life

• Fast Process Visualization: 266 MHz ARM9 processor enables<500 ms screen updates and smooth trend animations

• Flexible Connectivity: Ethernet (Modbus TCP) + PROFIBUS DP for AC 800M DCS and third-party PLC integration

• Redundant Power: Dual 24 Vdc inputs prevent downtime during single power supply failure

• Comprehensive Alarm Management: Categorizes alarms by priority; logs 100,000+ events with timestamp/operator acknowledgment

• Multi-Language Support: 15+ languages for global operator teams; customizable text/graphics for regional compliance

• IP65 Front Protection: Dust/water-resistant front panel for harsh industrial environments

PP846 3BSE042238R1(4).png

YMGK Purchase Information

This section covers key details customers care about regarding purchasing, to support your global industrial product procurement needs.

One-Stop Global Industrial Product Procurement

Sales Manager: KI MI

WeChat: 18059884790

WHATSAPP: +86 18059884790 (Click to add)

Email: plc66@qq.com

Global Inventory: 121 shared inventories worldwide, enabling direct procurement from overseas warehouses for faster delivery.
Pricing & After-Sales: Competitive prices plus reliable after-sales warranty services.
Customer Coverage: Serving clients across United States, Germany, Japan, South Korea, United Kingdom, France, Italy, Canada, Brazil, India, Australia, Russia, Spain, Netherlands, Switzerland, Sweden, Belgium, Austria, and Turkey.
Product Quality: All items are brand new and original. Spare parts include a 1-year warranty, and all products are tested and certified.
Discounts: Contact us for bulk-order discounts. We also offer further price adjustments if you receive lower quotes for identical products from other suppliers.

For additional inquiries, reach out to us at any time.

All product names, trademarks, brands, and logos on this site belong to their respective owners. Their use here is for identification only, and does not imply affiliation with or authorization from the rights holders

3. Typical Applications

• Process Industries: Oil & Gas, Petrochemical, Chemical, and Pharmaceutical plant monitoring & control

• Manufacturing: Automotive assembly lines, Food & Beverage processing, and Packaging machinery HMI

• Power Generation: Fossil fuel, Nuclear, and Renewable energy plant DCS operator interface

• Water & Wastewater: Treatment plant process visualization, pump control, and chemical dosing monitoring

• Marine & Offshore: Vessel propulsion control, FPSO process monitoring, and offshore platform automation

PP846 TES3BSE042238R1.png

4. Installation & Maintenance

Installation: Panel-mount in control room or field cabinet (IP65 front); connect dual 24 Vdc power (reverse polarity protected); wire Ethernet to AC 800M DCS/PROFIBUS DP to field network; verify LED status (Green=Power OK, Blue=Comms Active, Amber=Warning, Red=Fault).

Maintenance: Weekly: Inspect touch responsiveness and LED indicators; Monthly: Verify communication link quality and alarm logging; Annual: Update firmware, calibrate touchscreen, and backup HMI project files.

Safety Notes: Use shielded twisted-pair for PROFIBUS DP (1.5 mm² min); isolate power wiring from signal cables; follow local electrical codes for 24 Vdc installation.
