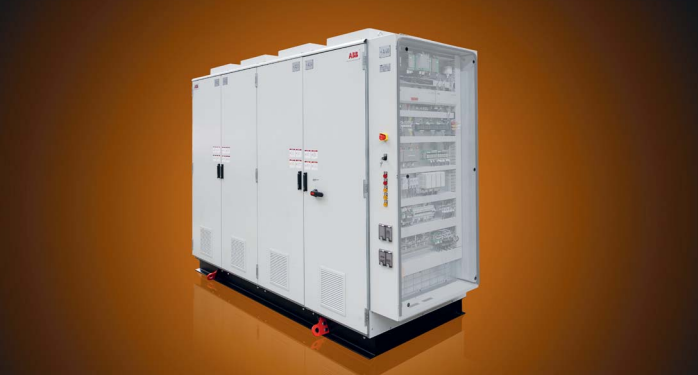

PCS6000 Medium voltage frequency converter

The PCS6000 is a medium-voltage frequency converter developed by ABB, specifically designed for offshore wind power generation and industrial applications, etc. The following is its related introduction:

Characteristics

High performance: Supports wind turbines with power up to 20MW or even higher, suitable for large offshore wind turbines of 4-12MW, with a power range of 4-120MVA and voltage levels typically ranging from 3.3kV to 66kV.

High reliability: Passed multiple international certifications such as DNV GL and UL, ensuring safety and reliability in harsh environments. It adopts water-cooled cooling method, with an efficiency as high as 98%.

Flexible design: It adopts a modular design, which is convenient for customization and expansion. The structure is compact, occupying a small area, suitable for short cabin or tower installation, and has low maintenance requirements.

Component parts

Frequency converter module: It contains IGCT or IGBT devices and is used for power conversion.

Transformer: Used for voltage transformation and isolation.

Heat exchanger: Used in the cooling system.

Control system: It includes the AC80-PLC system and the S800 I/O module for monitoring and control.

Auxiliary equipment: such as cooling fans, sensors and protective devices.

Application scenarios

Offshore wind power: Widely applied in large-scale offshore wind power generation projects, such as the Dogger Bank wind farm, it can convert the electricity generated by wind turbines into appropriate voltages and frequencies to adapt to the wind farm power grid.

Industrial automation: Applicable to fields such as intelligent manufacturing and intelligent infrastructure.

Rail transit: It can be used in railway traction power supply systems.

Other fields: It can also be used in pumped storage power stations and low-frequency, large-capacity applications such as STATCOM.

In addition, the STATCOM solution based on PCS6000 is highly flexible and can be applied in a wide range of markets such as renewable energy, railways, industry, and public utilities. It can achieve functions such as dynamic voltage stability, voltage balance for asymmetric loads, reduction of voltage flicker generated by electric arc furnaces, and active harmonic filtering

For more product information, please click to visit the official website  or consult the relevant sales staff

Sales Manager: Li Ming

WeChat: 18059884790

WHATSAPP:+86 18059884790

Email:plc66@qq.com

PCS6000    1SAM150005R0012    Motor protection circuit breaker    MS325-16A-HKF11 1Closed+1Open

PCS6000    1SBL243001R8110    CONTACTOR    CONTACTOR

PCS6000    1SBL281001R8032    CONTACTOR    A30-30-32. 230VAC

PCS6000    1SBN050200R1002    SURGE SUPPRESSOR    SURGE SUPPRESSOR

PCS6000    1SCA022399R8450    Lever for earthing-switch    OHB145J12E20

PCS6000    1SCA105365R1001    Load-break switch    Load-break switch

PCS6000    1SCA108888R1001    Load disconnector    OS32FF1214-2

PCS6000    1SFA611280R1001    Locking pushbutton    Locking pushbutton

PCS6000    1SFA611400R1003    Pilot light    ML1-100Y yellow

PCS6000    1SFA611601R1100    Holder    MCBH5-00

PCS6000    1SFA611605R1200    LAMP BLOCK WITH HOLDER    MCBH-001

PCS6000    1SFA611610R1011    CONTACT BLOCK    MCB-11

PCS6000    1SFA611920R8053    SHROUD    MA1-8053

PCS6000    1SFA616920R8120    PLATE HOLDER    KA1-8120

PCS6000    1SFA896108R1100    SOFT STARTER    PSR25-600-11

PCS6000    1SFL471001R8022    CONTACTOR    A145-30-22#230VAC

PCS6000    1SVR730884R3300    THREE-PHASE MONITORING RELAY    CM-MPS.41S

PCS6000    2CCL462110E0104    FAULT CURRENT SWITCH    FI-LS FS451M-C10/0.03

PCS6000    2CDS200922R0001    Aux. contact    S2C-S/H6R

PCS6000    2CDS200970R0002    S2C-H10           AUX. CONTACT    S2C-H10           AUX. CONTACT

PCS6000    2CDS251001R0277    Miniature Circuit Breaker    Miniature Circuit Breaker

PCS6000    2CDS251103R0105    Miniature circuit breaker    Miniature circuit breaker

PCS6000    2CDS253103R0105    Miniature Circuit Breaker    S203-B 10 NA MCB 440V AC

PCS6000    2CDS253103R0205    Miniature Circuit Breaker    S203-B 20 NA

PCS6000    2CSR255140R1105    Fault current switch    Fault current switch

PCS6000    3BHB002295P0008    Resistor    105W 270k 10%

PCS6000    3BHB002782R0001    RELAY SOCKET    90.03SMA

PCS6000    3BHB002782R8230    RELAY    60.13 11P 230VAC

PCS6000    3BHB002782R9024    60.13 24VDC       RELAY ,WITH LED-DIODE    60.13 24VDC       RELAY ,WITH LED-DIODE

PCS6000    3BHB002782R9048    RELAY    60.13.9.048 VDC WITH D

PCS6000    3BHB006516R0001    Capacitor    5uF (5%). 4.5kVmax. 70A

PCS6000    3BHB006537R0001    Module frame    Power module Classic/CRP1

PCS6000    3BHB006617R0002    DC-CAPACITOR    ESTADRY. 2X786µF. 3.1KV

PCS6000    3BHB006617R0003    DC-CAPACITOR    ESTADRY. 1580µF. 2.65KV

PCS6000    3BHB006617R0004    HV-Capacitor    3-Phase 3x80µF. 3.3kV. 48A

PCS6000    3BHB006617R0013    DC-Link Capacitor    DCMKP 2.6kV/2x1.5mF

PCS6000    3BHB006617R0014    DC-Link Capacitor    DCMKP 3.15kV/2x1.01mF

PCS6000    3BHB006621R0105    Control Board, ASE    50Hz. UA C375 AE105

PCS6000    3BHB008753R0002    FOR PCS6000    TOOLBOX

PCS6000    3BHB009763P0001    Fibre Optic Connector    HFBR 4532

PCS6000    3BHB010662R9006    RESISTOR    1000W. 6 OHM. ±10%

PCS6000    3BHB012211R0003    OUTLET FILTER RAL 7035    SK 3243.200

PCS6000    3BHB016120R0003    RC-IGCT    5SHX 1960L0006. 91mm GVC736 rew.

PCS6000    3BHB016371P0010    UPS MODUL    QUINT-DC-UPS/24DC/10

PCS6000    3BHB016371P0040    UPS MODUL    QUINT-DC-UPS/24DC/40

PCS6000    3BHB016371P2441    UPS MODUL    QUINT -DC-UPS/24DC/40-SO1

PCS6000    3BHB016372R0002    Battery    Quint -BAT/24DC/7.2Ah

PCS6000    3BHB016372R0003    Battery    Quint -BAT/24DC/3.4Ah

PCS6000    3BHB017230P2424    DC-DC-Converter    QUINT-PS-24DC/24DC/10

PCS6000    3BHB017230P3244    POWERSUPPLY    QUINT-PS-3X400-500AC/24DC/40

PCS6000    3BHB3120138R0001    Ball Valve    VM 4357 ISO-Rp 1/4

PCS6000    3BHB3120147R0001    Ball Valve    VM 4359 ISO-Rp 1/2

PCS6000    3BHE000288P0342    KEY OPERATED SWITCH    Type 704.342

PCS6000    3BHE001562R0010    TOP BLOWER    SK 3149.820. 230V 50/60HZ

PCS6000    3BHE002676R0001    Fibre Optic Connector    HFBR-4501  (grey)

PCS6000    3BHE004263P0494    INDUSTR. ETHERNET SWITCH    MOXA. EDS-308

PCS6000    3BHE006800P0004    O-ring    PCS6000 POM. O30/O21 H=3mm

PCS6000    3BHE007153R0001    FAN UNIT    SK 3243.100

PCS6000    3BHE007154R0001    THERMOSTAT    KTS01140. 250V AC

PCS6000    3BHE008528R0001    Filter Capacitor    3X 36uF 2.3 kV AC

PCS6000    3BHE010837R0010    FUSE TERMINAL    UK6-FSI/C 10A

PCS6000    3BHE010837R0015    FUSE TERMINAL    UK6-FSI/C 15A

PCS6000    3BHE010837R0025    FUSED TERMINAL    UK6-FSI/C  5A

PCS6000    3BHE012954R0016    HOSE  PROTECTOR    ID16/5.5 BK

PCS6000    3BHE012954R0025    HOSE PROTECTOR    ID25/5.5 BK

PCS6000    3BHE012954R0032    HOSE  PROTECTOR    ID32/6 BK

PCS6000    3BHE013677R0001    O-Ring    EPDM AS/BS021

PCS6000    3BHE014135R0011    AC 800PEC Combi IO    UA D149 A00-0-11:

PCS6000    3BHE014185R0001    Voltage Transducer Control Board    UU D148 AE01: U

PCS6000    3BHE014185R0002    Current Transducer Control Board    UU D148 AE02: 1A

PCS6000    3BHE015187R0039    Deaeration Valve    SS-4P-4RT ISO-R 1/4

PCS6000    3BHE015772R0001    HOSE CLAMP    Diam. 16 mm

PCS6000    3BHE015772R0002    HOSE CLAMP LIDO (32)    NO.45/2

PCS6000    3BHE015772R0005    HOSE CLAMP LIDO (25)    NO.37/2

PCS6000    3BHE016761R0004    RESISTOR    SCE70.300 750W 2R0 5%

PCS6000    3BHE016842R0101    Controller Board, AC 800PEC M    UA D144 A101

PCS6000    3BHE017827R0009    FUSE    CV4 URB 7.2KV 225A

PCS6000    3BHE017827R0011    DIODE    5SDA06D5007

PCS6000    3BHE018045R0003    FUSE    SI FORM C. 3A

PCS6000    3BHE018045R0005    FUSE    SI FORM C. 5A

PCS6000    3BHE018045R0010    FUSE    SI FORM C. 10A

PCS6000    3BHE018045R0015    FUSE    SI FORM C. 15A

PCS6000    3BHE018045R0020    Terminal    SI-FORM-C-20-A-DIN72581-YE

PCS6000    3BHE018045R0025    FUSE    SI FORM C. 25A

PCS6000    3BHE019196P1330    Precharching Transformer    30kVA. 400V. Yny0

PCS6000    3BHE020520R0001    Temp Sensor    0-100°C ISO-R 1/2

PCS6000    3BHE020520R0002    Pressure Meter Wika    0-10bar ISO-R 1/4

PCS6000    3BHE020520R0003    Automatic Deaeration Valve    Type 1.12

PCS6000    3BHE021667R0002    Resistor    FWD60-300 10kohm. K special

PCS6000    3BHE021696P0008    Reactor    DQM FN 4/L. 37µH 320A

PCS6000    3BHE021696P0009    SINGLE-PHASE REACTOR    26µH. 270A

PCS6000    3BHE022145R0001    RESISTOR    2X1R7 J / IP00

PCS6000    3BHE023151P0001    REACTOR    DRM BW11/L 45µH 500A

PCS6000    3BHE023584R2041    Controller Board: AC 800PEC    PP D113 B03-20-110110

PCS6000    3BHE023584R2341    Controller Board: AC 800PEC    PP D113 B03-23-110110

PCS6000    3BHE023584R2441    Controller Board: AC 800PEC    PP D113 B03-24-110110

PCS6000    3BHE023584R2541    Controller Board: AC 800PEC    PP D113 B03-25-110110

PCS6000    3BHE023584R2641    Controller Board: AC 800PEC    PP D113 B03-26-110110

PCS6000    3BHE023585R236D    Controller Board: AC 800PEC    PP D113 B13-23-661711

PCS6000    3BHE023752R0002    Relay    2961312. REL-MR-24DC/21HC

PCS6000    3BHE024672R0100    Fuse    1A. 5x20mm. slow-blow

PCS6000    3BHE024672R0160    Fuse    1.6A. 5x20mm. slow-blow

PCS6000    3BHE024672R0200    Fuse    2A. 5x20mm. slow-blow

PCS6000    3BHE024672R0500    Fuse    5A. 5x20mm. slow-blow

PCS6000    3BHE024672R1000    Fuse    10A. 5x20mm. Slow-blow

PCS6000    3BHE028915R0101    Controller Board: PEC80-INTM Box    PC D237 A101

PCS6000    3BHE029110R0111    Controller Board: AC 800PEC Combi IO Box    UA D155 A0111

PCS6000    3BHE030848R0001    Terminal block    ST-2.5-QUATTRO-DIO/L-R-GR

PCS6000    3BHE030864R0001    VARIOFACE    UMK- 4 RM 24DCMSTBV

PCS6000    3BHE031065R0001    Power Supply 3-Phase    QUINT-PS/3AC/24DC/40

PCS6000    3BHE031270R0001    VARIOFACE    UMK- 8 RM 48DCMSTBV

PCS6000    3BHE031272R0001    Miniature relay    48V DC. 1 change over

PCS6000    3BHE031275R0001    PLC-INTERFACE    230VAC. 2W. 6A

PCS6000    3BHE031276R0001    Optocoupler IN    48-60VDC OUT: 8-48VDC/10

PCS6000    3BHE031278R0001    ETHERNET SWITCH 5 PORT UNMANAGED    FL SWITCH SFN 5TX. 2891152

PCS6000    3BHE031283R0001    Heating with blower    230V AC. 250 W

PCS6000    3BHE031283R0500    Door Fan & Heater    230V AC. 500 W

PCS6000    3BHE031284R0001    Thermostat    TH-H

PCS6000    3BHE031286R0001    Thermostat    TH-K

PCS6000    3BHE031436R3090    Tyristor Controller    TPY3-415-90L-2A. 3AC. 400V. 90A

PCS6000    3BHE031443R0001    Fuse holder    SI 85-36x250

PCS6000    3BHE031443R0120    Fuse    5.5kV AC/ 12A/ gLB/ 36x250

PCS6000    3BHE031464R0001    Mechanical Hygrostat    HY/WE

PCS6000    3BHE031465R0002    Temperature sensor with alu cover    PT100. 4..20mA

PCS6000    3BHE031467R0001    Humidity Temperature Sensor    HLK

PCS6000    3BHE031860R0001    Door interlock    PCS6000 Door lock and handle

PCS6000    3BHE032560R0001    Pump Mechanical Seal    3a1-L1K-22-aeEF3

PCS6000    3BHE033046R0001    Braking resistor    2x 1R7 J / IP00

PCS6000    3BHE033124R0001    ETHERNET SWITCH 5 PORT    FL SWITCH LM 5TX (No: 2989527)

PCS6000    3BHE033836R0011    Voltage Divider Set    WAGO. 8-CH

PCS6000    3BHE034024P0001    Air inlet filter    RO/SE GV600 323x323

PCS6000    3BHE034815R0001    BRM Braking Resistor Module    3R0

PCS6000    3BHE034863R0002    Control Board: ASE2B Box    UD C920 BE102

PCS6000    3BHE034911R0001    Filter Reactor Module    FRM70

PCS6000    3BHE034913R0001    Generator Breaker Module    GBM30

PCS6000    3BHE034914R0001    Generator Breaker Module    GBM50

PCS6000    3BHE034983R0001    Code star    3040588

PCS6000    3BHE035377R0150    Roof Fan    PTF61.000 230V 750m3/h IP54

PCS6000    3BHE035531R0260    Blower    QK12A-4EM.48.EK 230V 1400m3/h

PCS6000    3BHE035762R0001    Resistor for DC-Link Discharge    R. SRS/TS 30.265 82K

PCS6000    3BHE036379R0001    Relay terminal    PLC-RSP-24VDC/21-21

PCS6000    3BHE037134R0001    Reactor, Air Core    175uH 153A

PCS6000    3BHE037940R0001    Pump with Motor    525l/min 3AC400V 7.5kW

PCS6000    3BHE037941R0001    Pressure Transmitter    0-10bar ISO-G 1/2

PCS6000    3BHE037942R0001    Regulation Valve    TL65-3VBC-S.12

PCS6000    3BHE038551R0001    Pump    300min/l 3x400V 50Hz 5.5kW

PCS6000    3BHE038552R0001    Valve Motor    TR1000-D220-SF2.12

PCS6000    3BHE039648R0001    Base Beam Lifting Jack    FOR PCS6000

PCS6000    3BHE039651R0001    Reactor Replacement Kit FIU    FOR PCS6000

PCS6000    3BHE039724R2341    AC 800PEC CONTROLLER    PP D513 A23-110110

PCS6000    3BHE040929R0001    Filter Reactor Module    FRM80

PCS6000    3BHE041744R0001    Pump Bearings    5900002

PCS6000    3BHE041988R0001    SERVICEKIT FOR SW-SHS40200    Art no 129040

PCS6000    3BHE041994R0001    Pump Shaft seal&O-Ring PCS6000 Classi    HILGE 40/200. no 129050

PCS6000    3BHE042088R0001    BEARING    6208-2Z/C3 D-end Art no 1290024

PCS6000    3BHE042089R0001    BEARING    6206-2Z/C3 N-end Art  no 129002

PCS6000    3BHE042095R0001    Filtermats    Door Filter Fan Mats. AM 735P

PCS6000    3BHE043293R0001    Small Spareparts Electrical    PCS6000 Wind

PCS6000    3BHE043294R0001    Small Spareparts Mechanical    PCS6000 Wind

PCS6000    3BHE043463R0001    Industrial PC    UNO-2184G-32GBSSD-4GBRAM

PCS6000    3BHE043536R0001    EARTH ISOLATOR    6KV9 WITH LOCKING FEEDBACK

PCS6000    3BHE043661R0001    Pressure Relief Valve    SS-4CPA2-RT 3bar

PCS6000    3BHE043663R0001    Expansion Vessel    PWD AT8380-50 50L

PCS6000    3BHE043667R0001    Cut-off valve    VM 6542 ISO-Rp2 1/2

PCS6000    3BHE043668R0001    Butterfly Valve    VM 3001 DN65

PCS6000    3BHE043671R0001    Conductivity Meter    TYPE 8222 (SW-6110058)

PCS6000    3BHE043673R0001    Pump    WCU72. 525l/min 3x400V. 60Hz 7.5kW

PCS6000    3BHE043676R0001    Blocking Magnet    Y1 24V   GCE9478103P0101

PCS6000    3BHE043677R0001    Shunt Release OFF    Y2 24V GCE7004590P0111

PCS6000    3BHE043678R0001    Shunt Release ON    Y3 24V  GCE7004590P0101

PCS6000    3BHE043679R0001    Magnet Support complete    GCE7000880R0121

PCS6000    3BHE043680R0001    Auxiliary Switch S2    GCE7003022P0101

PCS6000    3BHE043681R0001    Auxiliary Switch    S1/S4

PCS6000    3BHE043682R0001    Auxiliary Switch    S3

PCS6000    3BHE043683R0001    Gear Motor    220-240V   GCE0940084P0136

PCS6000    3BHE043698R0001    Filtermats    Roof Filter mats. 18611600039

PCS6000    3BHE044922R0001    Generator/Grid Disconnector Module    GDM80

PCS6000    3BHE045341R0001    AIR INLET FILTER    FF12U

PCS6000    3BHE045452R0001    Pressure Transmitter 0-10bar    MBS1250

PCS6000    3BHE045457R0001    Conductivity Transmitter Display    D50

PCS6000    3BHE045462R0001    Expansion Vessel 80L    8321CR80

PCS6000    3BHE045464R0001    Pressure Relief Val.  5bar    AT 4592

PCS6000    3BHE045465R0001    FLOW METER    VEK-4E-AD

PCS6000    3BHE045466R0001    Regulation Valve    TL65-3VBC-S.12

PCS6000    3BHE045467R0001    Motor Actuator    TR1000-D220-SF2.12

PCS6000    3BHE045468R0001    Cooling pump    Wilo Pump

PCS6000    3BHE045469R0001    for Wilo Pump    Soft Seals

PCS6000    3BHE046665R0024    Relay Module    PLC-RSP- 24DC/21HC

PCS6000    3BHE046668R0001    Single plug-in bridge    FBST 14-PLC BK

PCS6000    3BHE047690R0001    Industrial Ethernet Switch    FL SWITCH SFN 5GT

PCS6000    3BHE048543R0001    OPTO COUPLER    PLC-OSP-48DC/48DC/100

PCS6000    3BHE049005R0001    Terminal Rail Repair kit    MSI-CI3

PCS6000    3BHE049006R0001    Contactor Repair Kit    MI-COMP 24VDC

PCS6000    3BHE049007R0001    TerminRail Conn Motor 24VDC MSI 207.451    24VDC MSI

PCS6000    3BHE049008R0001    Chain Repair kit    MSI 11-27 3/8"x 7/32"

PCS6000    3BHE049009R0001    Motor D Repair kit    24VDC

PCS6000    3BHE049466R0001    Relay Module    PLC-RPT- 48DC/21HC

PCS6000    3BHE049467R0001    Relay Module    PLC-RPT- 48DC/21-21

PCS6000    3BHF001940R0003    Solid-state relay module    PLC-OSP- 24DC/ 48DC/100

PCS6000    3BHL000951P0005    CONNECTOR_PLUG_IN_    R1/4_DM8_3805_08_13

PCS6000    3BHL001030P0001    Pressure part    Zinc plated

PCS6000    3BHL001118P0001    Diode holder    PA66GF25

PCS6000    3BHL001718P0001    O-RING    NBR 70.5/P5

PCS6000    GHS2810001R0427    MINI CIRCUIT BREAKER    S281-K10A

PCS6000    GHS2830001R0427    Miniature circuit breaker    Miniature circuit breaker

PCS6000    GHS2901916R0001    Auxillary contact    S290-H11 1S+10

PCS6000    HEIS413461P0003    O-RING    1.78x7.65

PCS6000    HEIS413461P0004    O-RING    1.78 / 10.82

PCS6000    HEIS413461P0008    O-RING    VG SPKZ 250

PCS6000    HESG455277P0404    Connector    FKC-2.5/04STF-5.08

PCS6000    HIEB404319P0005    REDUCE FITTING    1/2" - 1/4"         R-209

PCS6000    HIEB410237P0006    VARIOFACE    FLKM-D9 SUB/B

PCS6000    HIEB410537P0001    MECHANICAL HYGROSTAT    MFR012

PCS6000    HIEB412310R0001    DIODE    DS 291 S EUPEC

PCS6000    HIER467078P0001    FILTER PAD    3173.100 / 1 SET

PCS6000    HIES208441R0004    Resistor    91  1.2 OHM

PCS6000    HIES308464P0001    Sealing plug    M10 X1 PA SZ

PCS6000    HIES312169P2225    CABINET HEATER    220V;50/60HZ/AC;250W

PCS6000    HIES417921P0001    De-aeration Plug    PA M10x1

PCS6000    HIES422885P0001    O-Ring Resistor EPDM    D=97.67mm

PCS6000    HIES422885P0003    O-RING    14 X 3.00 EPDM shore 70

PCS6000    HUAD400536P0001    Warning Sign    DANGER H.V.

PCS6000    HUCD400230P0003    PTFE Hose    o 6/8

PCS6000    HUCD400235P0001    FITTING    M10X1 6/8

PCS6000    HUCD400236P0001    SCREW CONNECTION    G1/2"  6/8

PCS6000    SW3080002    Regulation valve motor    SW-3080002

PCS6000    SW-3110055    BUTTERFLY VALVE    SW-3110055

PCS6000    SW3110100    Regulation valve    SW-3110100
