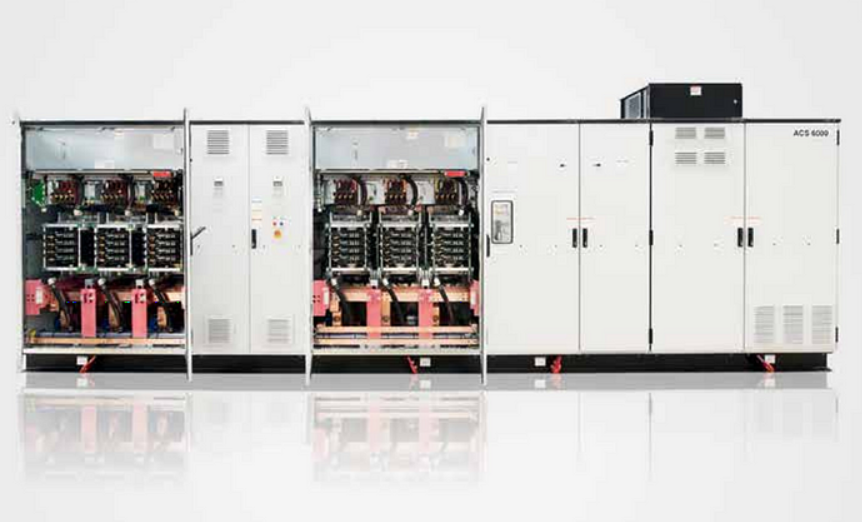

ACS6000C medium-voltage AC drive system

The ACS6000C is a medium-voltage AC drive system launched by ABB, specifically optimized for variable torque loads such as fans, pumps and compressors. It is a member of the ACS6000 series. The following is a detailed introduction about it:

Core characteristics

Integrated design

Compact structure: The rectifier unit, inverter unit and control unit are highly integrated, reducing the floor space by approximately 50% compared to traditional multi-drive systems and lowering installation and maintenance costs.

Simplified wiring: By adopting pre-assembled modules and standardized interfaces, the on-site commissioning time has been significantly reduced.

High efficiency and energy saving

Four-quadrant operation: Supports energy feedback to the power grid and is suitable for applications with frequent starts and stops or requiring braking (such as speed control of large fans and pumps).

IGCT technology: Integrated gate converter thyristor (IGCT) combined with DTC direct torque control achieves precise speed and torque regulation, with a system efficiency of over 98%.

Grid friendliness

Low harmonic: By adopting active front-end (AFE) technology, the harmonic distortion (THDi) of the input current is less than 3%, eliminating the need for additional harmonic filters and reducing interference to the power grid.

High power factor: The power factor is close to 1, reducing reactive power loss and optimizing grid load.

Intelligent control

DTC direct torque control: Its response speed is 10 times faster than that of traditional vector control, achieving millisecond-level dynamic response, and is suitable for loads that require rapid acceleration and deceleration.

Built-in process control functions: Supports PID regulation, flow/pressure control, multi-pump linkage and other functions, and can be directly integrated into industrial automation systems.

High reliability

Water cooling heat dissipation: It adopts a highly efficient water cooling system, with a heat dissipation efficiency five times higher than that of air cooling, thereby extending the lifespan of power modules.

Redundant design: Key components (such as control units and power modules) support hot-swappable and redundant configurations to ensure uninterrupted system operation.

Technical parameters

Power range: 2.8-25 MW

Voltage level: 2.3-6.6 kV

Control accuracy: Speed accuracy ±0.01%, torque response time < 5 ms

Protection grade: IP21/IP54 (optional)

Ambient temperature: -10°C to +45°C (water-cooled)

Typical application scenarios

Fan and pump loads: such as mine ventilators, sewage treatment pumps, circulating water pumps, etc., can achieve energy conservation through variable frequency speed regulation (usually 20%-50% energy conservation can be achieved).

Compressors: air compressors, natural gas compressors, etc., precisely control gas flow and pressure.

Conveyor belts and mixers: Large-scale material conveying systems in cement plants, mines and other industries.

The difference from ACS6000

Application scenarios: The ACS6000C is specifically optimized for variable torque loads, while the standard ACS6000 is more suitable for constant torque loads (such as rolling mills and extruders).

Structural design: The ACS6000C adopts a more compact integrated design, while the ACS6000 supports more flexible modular configurations (such as common DC bus multi-drive).

Cost-effectiveness: For fan and pump applications, the initial investment and operating costs of the ACS6000C are lower.

User value

Energy conservation and consumption reduction: By reducing the energy consumption of motors through variable frequency speed regulation, the investment cost can usually be recovered within 1 to 2 years.

Extend equipment life: Soft start and precise control reduce mechanical shock and lower maintenance frequency.

Intelligent management: Supports remote monitoring, fault diagnosis and predictive maintenance to enhance production efficiency

For more product information, please click to visit the official website  or consult the relevant sales staff

Sales Manager: Li Ming

WeChat: 18059884790

WHATSAPP:+86 18059884790

Email:plc66@qq.com

ACS6000C    09843876    BALL VALVE    3798002 3/8 PN40 AISI3

ACS6000C    09925732    NIPPLE    E-3/8-3/8  3578AL. DOUBLE

ACS6000C    10032547    FUSE HOLDER       PMCP 20+22    FUSE HOLDER       PMCP 20+22

ACS6000C    10032920    RESITOR           RIL 20/153S 22320R    RESITOR           RIL 20/153S 22320R

ACS6000C    10032938    RESITOR           RIL 20/153S 22340R    RESITOR           RIL 20/153S 22340R

ACS6000C    10032997KIT    THYRISTOR KIT     5STP 1242F0007 KIT    THYRISTOR KIT     5STP 1242F0007 KIT

ACS6000C    10033021KIT    THYRISTOR KIT     5STP 2842L0017    THYRISTOR KIT     5STP 2842L0017

ACS6000C    10033039SP    THYRISTOR         5STP 3842N0007    THYRISTOR         5STP 3842N0007

ACS6000C    10033055SP    THYRISTOR         5STP2552L0007    THYRISTOR         5STP2552L0007

ACS6000C    10033063    THYRISTOR         5STP3452N0014    THYRISTOR         5STP3452N0014

ACS6000C    10037522    FAN               RD28P-4DW.6L.1L    FAN               RD28P-4DW.6L.1L

ACS6000C    10037522-N    VENTIL&MOTOR/FAN  RD 28 S 4DW.6L.2L    VENTIL&MOTOR/FAN  RD 28 S 4DW.6L.2L

ACS6000C    29081069    SAFETY SWITCH     OTP25T3M    SAFETY SWITCH     OTP25T3M

ACS6000C    35047271    MEMBRANE PACKING  TET 10-14    MEMBRANE PACKING  TET 10-14

ACS6000C    3601063    TURN SWITCH       OT 25 ET3    TURN SWITCH       OT 25 ET3

ACS6000C    36720981    CIRCUIT BREAKER   OBSOLETE S 202-K2    CIRCUIT BREAKER   OBSOLETE S 202-K2

ACS6000C    36735163    TERMINAL UNIT     UKK3 I/O TERM.BLOCK 1.    TERMINAL UNIT     UKK3 I/O TERM.BLOCK 1.

ACS6000C    36735180    TERMINAL UNIT     UKK I/O TERM. BLOCK 3.    TERMINAL UNIT     UKK I/O TERM. BLOCK 3.

ACS6000C    36751100    TEMP. SENSOR      25,2,00,32,075,055    TEMP. SENSOR      25,2,00,32,075,055

ACS6000C    36755687    TERMINALBLOCK BRD RSSD 9B 800391    TERMINALBLOCK BRD RSSD 9B 800391

ACS6000C    36756543    OPTOISOLATOR      DKO/35 24VDC NR.801959    OPTOISOLATOR      DKO/35 24VDC NR.801959

ACS6000C    3ADV069006P0001    SCREW FUSE    170M7970. 1500A 1250V

ACS6000C    3BHB005985R0002    LEM VOLTAGE TRANSDUCER    LV200-AW/2/SP22

ACS6000C    3BHB017851R0001    TRANSDUCER    P41100D1-0010

ACS6000C    3BHB023461R0028    PLATE ZU GATE DRIVE TRANSMITTER    PLATE ZU GATE DRIVE TRANSMITTER

ACS6000C    3BHB037381R0001SP    THYRISTOR KIT    5STP2552L0017

ACS6000C    42000527    CENTRIFUGAL PUMP    CRN5-4 B-P-G-E-HQQE

ACS6000C    42000532    SHAFT SEAL KIT    CRN 1 / 3 / 5 SERIES

ACS6000C    42001859    PRESSURE SWITCH    PS600. 40-600PA 3A/250 50HZ

ACS6000C    57386428    CURRENT TRANSFOR. LGK2 112-Q5211-2CLGK-D    CURRENT TRANSFOR. LGK2 112-Q5211-2CLGK-D

ACS6000C    57891866SP    PEX-PIPE, L= 5M   INPEX 11,6*1,3D=9/11,5    PEX-PIPE, L= 5M   INPEX 11,6*1,3D=9/11,5

ACS6000C    57919043    MOUNTING CLAMP    SLZF 142-50 F=13-50 KN    MOUNTING CLAMP    SLZF 142-50 F=13-50 KN

ACS6000C    57920378    MOUNTING CLAMP    SLZF 142-70    MOUNTING CLAMP    SLZF 142-70

ACS6000C    57924624    RESISTOR          RCEC252 39 OHM 250W    RESISTOR          RCEC252 39 OHM 250W

ACS6000C    58088293    MEAS.TRANSDUCER   DSTY 101    MEAS.TRANSDUCER   DSTY 101

ACS6000C    58088978    CURRENT TRANSF.   IBO 3901-00901 5/1A    CURRENT TRANSF.   IBO 3901-00901 5/1A

ACS6000C    58091189    ROTAMETER         A-5AA 0-5L/MIN    ROTAMETER         A-5AA 0-5L/MIN

ACS6000C    58091219    PRESSURE GAUGE    232.50    PRESSURE GAUGE    232.50

ACS6000C    58091227    PRESS.TRANSMIT.   ME61.06.087 B H9 0-6BA    PRESS.TRANSMIT.   ME61.06.087 B H9 0-6BA

ACS6000C    58092797    ISOL.RESISTAN.MET PAQ96 TROPIC 1mA 0-200    ISOL.RESISTAN.MET PAQ96 TROPIC 1mA 0-200

ACS6000C    61149112    MOUNTING CLAMP    SLZD 117 F=20-46 KN    MOUNTING CLAMP    SLZD 117 F=20-46 KN

ACS6000C    61212698    ASSEMBLY JIG F TH 61212698 A.    ASSEMBLY JIG F TH 61212698 A.

ACS6000C    61214631    SEMICONDUCTOR DRI JIG F TH ABB    SEMICONDUCTOR DRI JIG F TH ABB

ACS6000C    61309497    RELAY BASE        MR78110    RELAY BASE        MR78110

ACS6000C    61320946    MEASURING UNIT IN LD MUI-01    MEASURING UNIT IN LD MUI-01

ACS6000C    61320954    GRAY ENCOD. BOARD LD GRB-01    GRAY ENCOD. BOARD LD GRB-01

ACS6000C    61324852    PROTECTION SWITCH PKZ2S    PROTECTION SWITCH PKZ2S

ACS6000C    61339256    LOCKING SPRING (S MR 28800    LOCKING SPRING (S MR 28800

ACS6000C    61339566    ASSEMBLY JIG F TH 61339566 2.    ASSEMBLY JIG F TH 61339566 2.

ACS6000C    61412999    PULSE  TRANFORMER LD LPTR-01    PULSE  TRANFORMER LD LPTR-01

ACS6000C    61460870    SEMICONDUCTOR DRI JIG F TH A2    SEMICONDUCTOR DRI JIG F TH A2

ACS6000C    63900231    RESISTOR          RCEC250 18KOHM 10% 18K    RESISTOR          RCEC250 18KOHM 10% 18K

ACS6000C    63914312    REISITOR          RCEC250  12kohm10%    REISITOR          RCEC250  12kohm10%

ACS6000C    63916846    SHUNT             SH-1200A/60MV-DIN    SHUNT             SH-1200A/60MV-DIN

ACS6000C    63919381    SCREWFUSE    170M6547

ACS6000C    63930814    RESISTOR          RCMC 500    RESISTOR          RCMC 500

ACS6000C    63933805    CAPACITOR         FPX86Y0105J--    CAPACITOR         FPX86Y0105J--

ACS6000C    63936588    SYNCHR. TRANSFORM M3V6/0-0 660,400V/30V,    SYNCHR. TRANSFORM M3V6/0-0 660,400V/30V,

ACS6000C    63940135    MEASURING TRANSDU LD MTR-01    MEASURING TRANSDU LD MTR-01

ACS6000C    63940143    THY. STATUS BOARD LD STA-01    THY. STATUS BOARD LD STA-01

ACS6000C    63940976    CAPACITOR         FPX86-9338-A    CAPACITOR         FPX86-9338-A

ACS6000C    63942731    RESISTOR          RCMC 500 18 OHM500W 10    RESISTOR          RCMC 500 18 OHM500W 10

ACS6000C    63945633    THYRISTOR UNIT    W2-84-12L    THYRISTOR UNIT    W2-84-12L

ACS6000C    64015192    POWER RESISTOR    GRF 30/156 S 18KOHM    POWER RESISTOR    GRF 30/156 S 18KOHM

ACS6000C    64055780    RECEIVER          M1110    RECEIVER          M1110

ACS6000C    64116002    SCREWFUSE         170M5263 700A 660V, 2K    SCREWFUSE         170M5263 700A 660V, 2K

ACS6000C    64116011    SCREWFUSE         170M5264 800A 660V, 2K    SCREWFUSE         170M5264 800A 660V, 2K

ACS6000C    64117157    SCREWFUSE         170M5267 1100A 660V, 2    SCREWFUSE         170M5267 1100A 660V, 2

ACS6000C    64117181    SCREWFUSE         170M5265 900A 660V, 2K    SCREWFUSE         170M5265 900A 660V, 2K

ACS6000C    64117271    SCREWFUSE         170M5262 630A 660V, 2K    SCREWFUSE         170M5262 630A 660V, 2K

ACS6000C    64119427    TRIP BLOCK        ZM-10-PKZ2 IR=6-10A, 6    TRIP BLOCK        ZM-10-PKZ2 IR=6-10A, 6

ACS6000C    64122088    SYNCHR. TRANSFORM M3V4-1/0-0    SYNCHR. TRANSFORM M3V4-1/0-0

ACS6000C    64122410    SYNCHR. TRANSFORM M3V1/0-0    SYNCHR. TRANSFORM M3V1/0-0

ACS6000C    64124943    TRIP BLOCK        ZM-1-PKZ2 IR=0,6-1A, 6    TRIP BLOCK        ZM-1-PKZ2 IR=0,6-1A, 6

ACS6000C    64128281    SCREWFUSE         170M7975 1800A 1250V    SCREWFUSE         170M7975 1800A 1250V

ACS6000C    64133683    TRANSFORMER       M1V2/2-20 220,230,240V    TRANSFORMER       M1V2/2-20 220,230,240V

ACS6000C    64133713    MOVING-COIL-%-MET PQ96-X 0..150% 0..6VDC    MOVING-COIL-%-MET PQ96-X 0..150% 0..6VDC

ACS6000C    64133730    MOVING-COIL-%-MET DQ96-X 0..300% 0..6VDC    MOVING-COIL-%-MET DQ96-X 0..300% 0..6VDC

ACS6000C    64133748    TRANSFORMER       M1V4/2-20 380,400,415V    TRANSFORMER       M1V4/2-20 380,400,415V

ACS6000C    64197991    R/C-CIRCUIT       RC SPKZ0 250 1 0V...25    R/C-CIRCUIT       RC SPKZ0 250 1 0V...25

ACS6000C    64206095    EXPANSION VESSEL  RST 24L/4BAR    EXPANSION VESSEL  RST 24L/4BAR

ACS6000C    64206095KIT    EXPANSION VESSEL  RST 24L/4BAR KIT    EXPANSION VESSEL  RST 24L/4BAR KIT

ACS6000C    64217968    O-RING            EPDM 2,5X35    O-RING            EPDM 2,5X35

ACS6000C    64223852    RESISTOR          RCEC250 22KOHM 10%    RESISTOR          RCEC250 22KOHM 10%

ACS6000C    64229648    HEAT EXCHANGER    CB52-60M(V22,V24) 60 3    HEAT EXCHANGER    CB52-60M(V22,V24) 60 3

ACS6000C    64244531    TRANSDUCER    Knip41066D1

ACS6000C    64276107    FIXED CONTACT 2KV UR36/40HSBA300154R0002    FIXED CONTACT 2KV UR36/40HSBA300154R0002

ACS6000C    64276115    POLE CONNECT. 2KV UR36/40HSBA300168P0002    POLE CONNECT. 2KV UR36/40HSBA300168P0002

ACS6000C    64276123    FORK UNIT COMPL.  UR36/40HSBA300169R0100    FORK UNIT COMPL.  UR36/40HSBA300169R0100

ACS6000C    64276158    BLADE WITH CATCH  UR36/40HSBA300158R0100    BLADE WITH CATCH  UR36/40HSBA300158R0100

ACS6000C    64276166    ARC CHUTE HORN    UR36/40HSBA432119P0001    ARC CHUTE HORN    UR36/40HSBA432119P0001

ACS6000C    64276174    PUSHER ASSEMBLY   UR36/40HSBA300028R0100    PUSHER ASSEMBLY   UR36/40HSBA300028R0100

ACS6000C    64276182    MAN.CLOSINGDEVICE UR36/40HSBR230072R0001    MAN.CLOSINGDEVICE UR36/40HSBR230072R0001

ACS6000C    64280961    RC-RESISTOR MXL   20 OHM 600 W    RC-RESISTOR MXL   20 OHM 600 W

ACS6000C    64337467    SCREWFUSE         170M4441 315A 1250V, 1    SCREWFUSE         170M4441 315A 1250V, 1

ACS6000C    64355121    RESISTOR    RCEC500L

ACS6000C    AMC3SPARERACK    ACS6000C BRD RACK AMC3 SPARE RACK    ACS6000C BRD RACK AMC3 SPARE RACK

ACS6000C    CCBSPARERACK    ACS6000C BRD RACK CCB SPARE RACK    ACS6000C BRD RACK CCB SPARE RACK

ACS6000C    GZN640007P0007    FUSE LINK    NH000 25A/500 GL

ACS6000C    GZN640007P0010    FUSE LINK    NH000 40A/500 GL

ACS6000C    SW-6100001    FLOW METER    VEK-4DA-DV

ACS601    61323911    SUPER I/O BOARD   NIOCP-01    SUPER I/O BOARD   NIOCP-01
