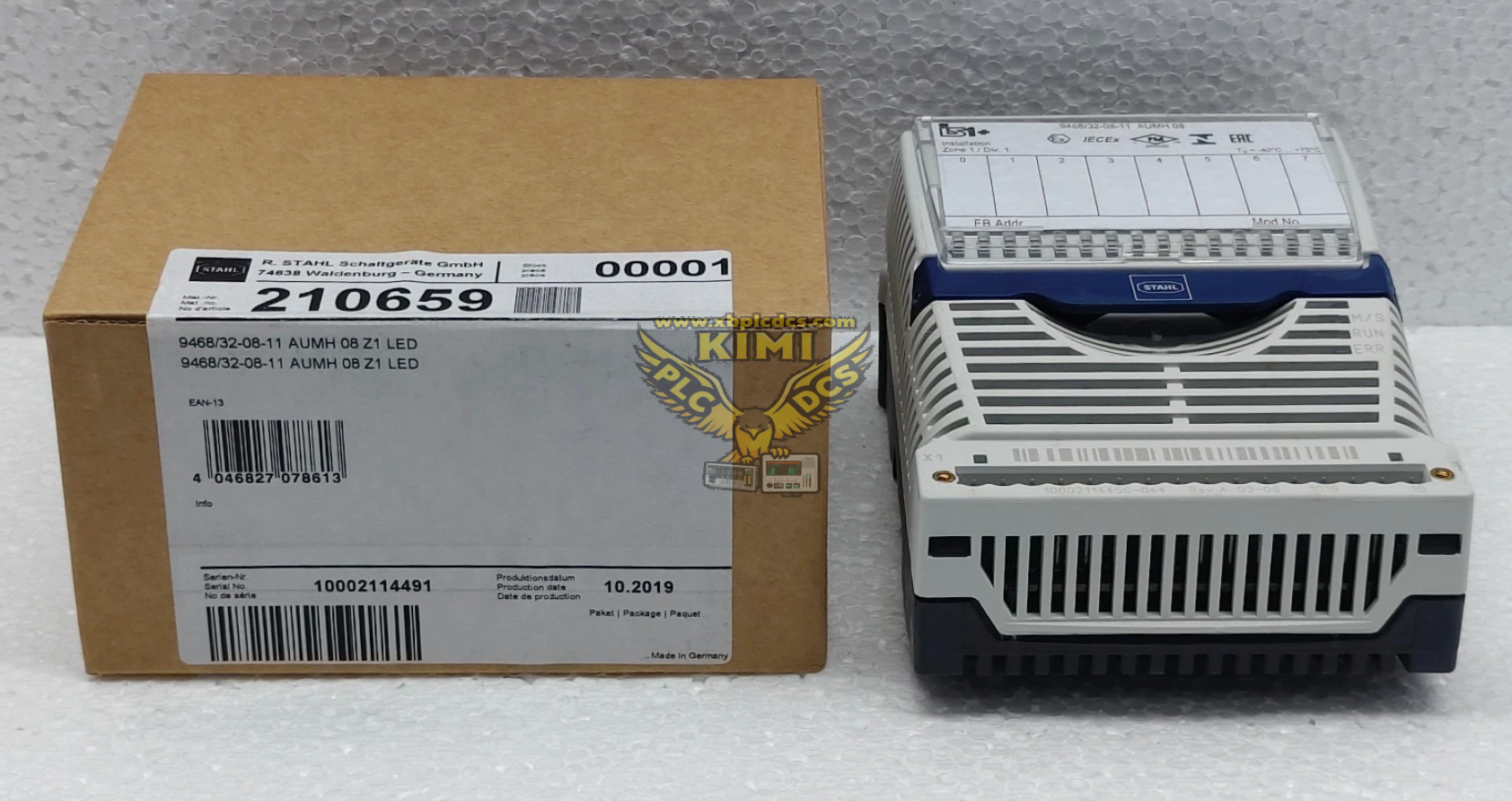

R. STAHL 9468/32-08-11 IS1+ HART Analog Universal I/O Module

Product Description

The 9468/32-08-11 is an 8-channel intrinsically safe analog universal I/O module of R. STAHL IS1+ Remote I/O system, certified for Zone 1 / Div.1 hazardous areas. Each channel can be flexibly configured as analog input or output, supporting bidirectional HART communication. It connects 2-wire, 3-wire and 4-wire HART transmitters, valve positioners and 4-20mA field devices, featuring hot-swap function under powered condition. It provides galvanic isolation and individual wire break / short-circuit monitoring for every channel.

Features

• 8 Ex ia IIC intrinsically safe universal channels, configurable as AI or AO
• Built-in bidirectional HART communication for field device parameterization
• Hot-swap replacement in Zone 1 hazardous area without power cut
• Independent channel fault diagnosis for open circuit and short circuit
• Galvanic isolation between field side and system backplane, short-circuit protection
• Supports 2-wire /3-wire transmitters and analog valve positioners
• DIN rail mounting, compact modular design for IS1+ rack system
• Working temperature range: -20℃ ~ +60℃, explosion-proof certification Ex ia IIC T4

Application Scenarios

• Petrochemical, oil & gas hazardous zone process control systems
• Zone 1 gas and dust explosion-proof remote I/O signal acquisition
• 4-20mA HART pressure, temperature, flow transmitter signal interface
• Intelligent valve positioner control and HART instrument management
• IS1+ distributed remote I/O cabinet construction and spare parts replacement
• Refinery, chemical plant and offshore platform automation retrofit projects

FAQ

Q: What is the difference between 9468/32-08-10 and 9468/32-08-11?
A: They are two variants of the same series, differing in internal configuration and HART hardware version.

Q: Can it be hot-swapped in hazardous area?
A: Yes, it supports powered hot replacement in Zone 1.

Q: What system does this module belong to?
A: It belongs to R. STAHL IS1+ remote I/O system for explosion protection.

Q: What signals does it support?
A: 4-20mA analog signals with HART protocol, for both input and output.
