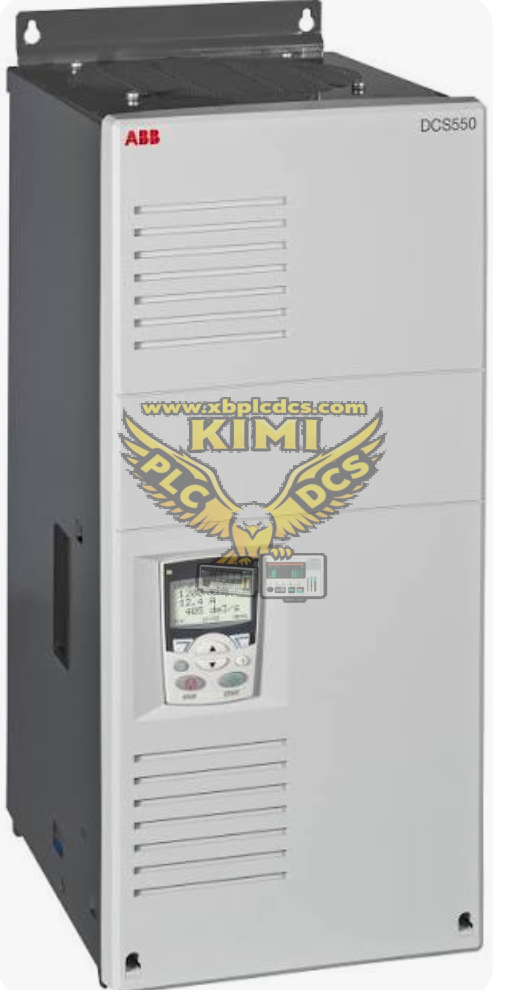

ABB DCS550-S01-0610-05-00-00 DC Drive

Product Description
DCS550-S01-0610-05-00-00 is ABB DCS550 series digital DC converter, part number 3ADT218468R0001. Rated 525V AC input, 610A armature current, single bridge rectifier with integrated field exciter. It is a compact digital DC drive for controlling DC motors, suitable for new machine builds and retrofitting of legacy DC equipment.

Key Features

• Rated armature current: 610A, input voltage 525V, single rectifier bridge
• Built-in 3-phase field exciter, max field current up to 35A
• Integrated PID controller, adaptive programming and startup assistant
• Wide fieldbus communication options: Modbus, Profibus, DeviceNet etc.
• User-friendly control panel for parameter setup and fault diagnosis
• Robust cabinet design, compact footprint, high reliability for heavy-duty industrial operation
• Support speed, torque and current closed-loop control for DC motors

Application Scenarios

• Paper machines, calenders and winder/unwinder systems
• Metal rolling mills, extrusion machinery, wire drawing equipment
• Printing machinery, plastic film production lines
• Heavy-duty conveyor, test bench and industrial retrofit DC motor drives

FAQ

Q: What does S01 stand for in DCS550-S01-0610-05-00-00?
A: S01 represents single bridge rectifier configuration; D01 is dual bridge version.

Q: Does this model include field excitation?
A: Yes, integrated field exciter is included for DC motor field winding control.

Q: What communication interfaces are available?
A: Standard Modbus, optional fieldbus modules like Profibus DP, DeviceNet for PLC connection.
