Meggitt Vibro-Meter MPC-4 200-510-071-113 / 200-510-SSS-1HH Machinery Protection Card

Product Description

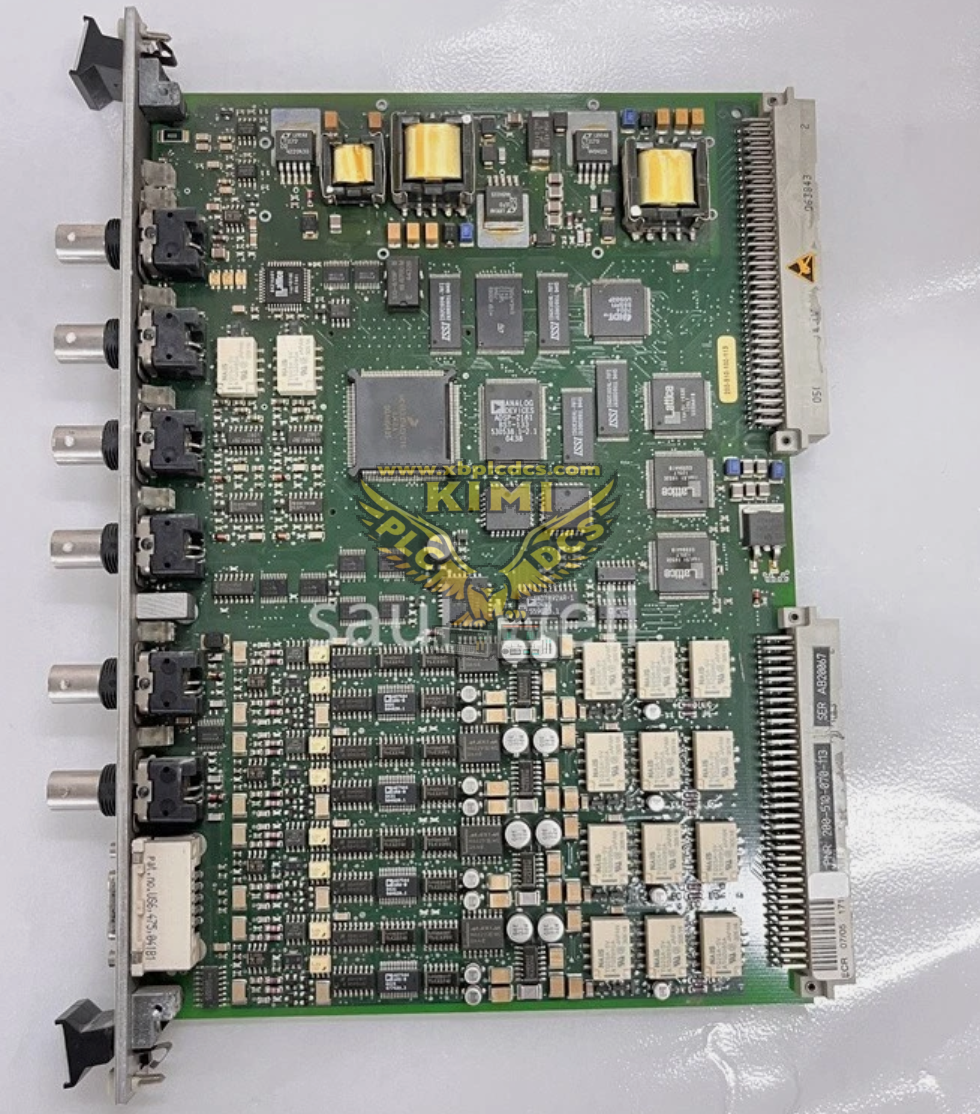

MPC-4 is the core machinery protection card for Meggitt Vibro-Meter VM600 rack-based machinery protection system. 200-510-071-113 is the full part number while 200-510-SSS-1HH represents standard firmware & hardware revision variant. This 6U VME front board works paired with rear IOC4T I/O card. It has 4 programmable dynamic signal inputs plus 2 tachometer speed channels, compatible with proximity probes, accelerometers and velocity transducers. It can measure shaft relative vibration, casing absolute vibration, thrust position, eccentricity and casing expansion. Powered by 18~36VDC, it complies with IEC61508 SIL2 and API670, with front panel BNC test ports and LED status indicators. It supports hot-swap replacement inside VM600 rack. This legacy module is discontinued; available stock are new surplus or fully tested refurbished spare parts for turbine and compressor protection rack replacement.

Key Functions

• 4 dynamic signal channels + 2 tacho speed inputs for rotating machinery protection
• Onboard DSP real-time processing: digital filtering, integration, order tracking, amplitude & phase calculation
• Configurable Alert / Danger alarm thresholds with delay, hysteresis and latching function
• Accept displacement, velocity or acceleration signals from various vibration sensors
• Raw signal output via front BNC connectors for field troubleshooting and signal verification
• Internal IOC4 bus communication with rack CPU and rear IOC4T I/O board
• Comprehensive self-diagnosis: sensor open/short, module hardware fault, power supervision
• SIL2 safety capability, fast protection response for machinery emergency trip logic

Application Scenarios

• Gas turbine, steam turbine and generator shaft vibration & thrust protection
• Oil & gas centrifugal compressor, pump and large fan safety monitoring rack
• Power plant turbomachinery protection and machinery safety interlock system
• Offshore platform rotating equipment condition & protection monitoring
• VM600 system spare replacement and control cabinet retrofit projects

FAQ

Q1: What is the difference between 200-510-071-113 and 200-510-SSS-1HH?
A1: 200-510-071-113 is the complete order part number; 200-510-SSS-1HH denotes standard firmware and hardware revision version of MPC4.

Q2: Does MPC4 work alone?
A2: No, it must be installed with matched rear IOC4T I/O card inside VM600 rack.

Q3: What software is used for configuration?
A3: VibroSight software for parameter setup, alarm configuration and vibration data viewing.

Q4: Common faults?
A4: Channel signal loss, tacho speed reading missing, IOC4 bus communication failure, DSP hardware error, front BNC connector damage.
