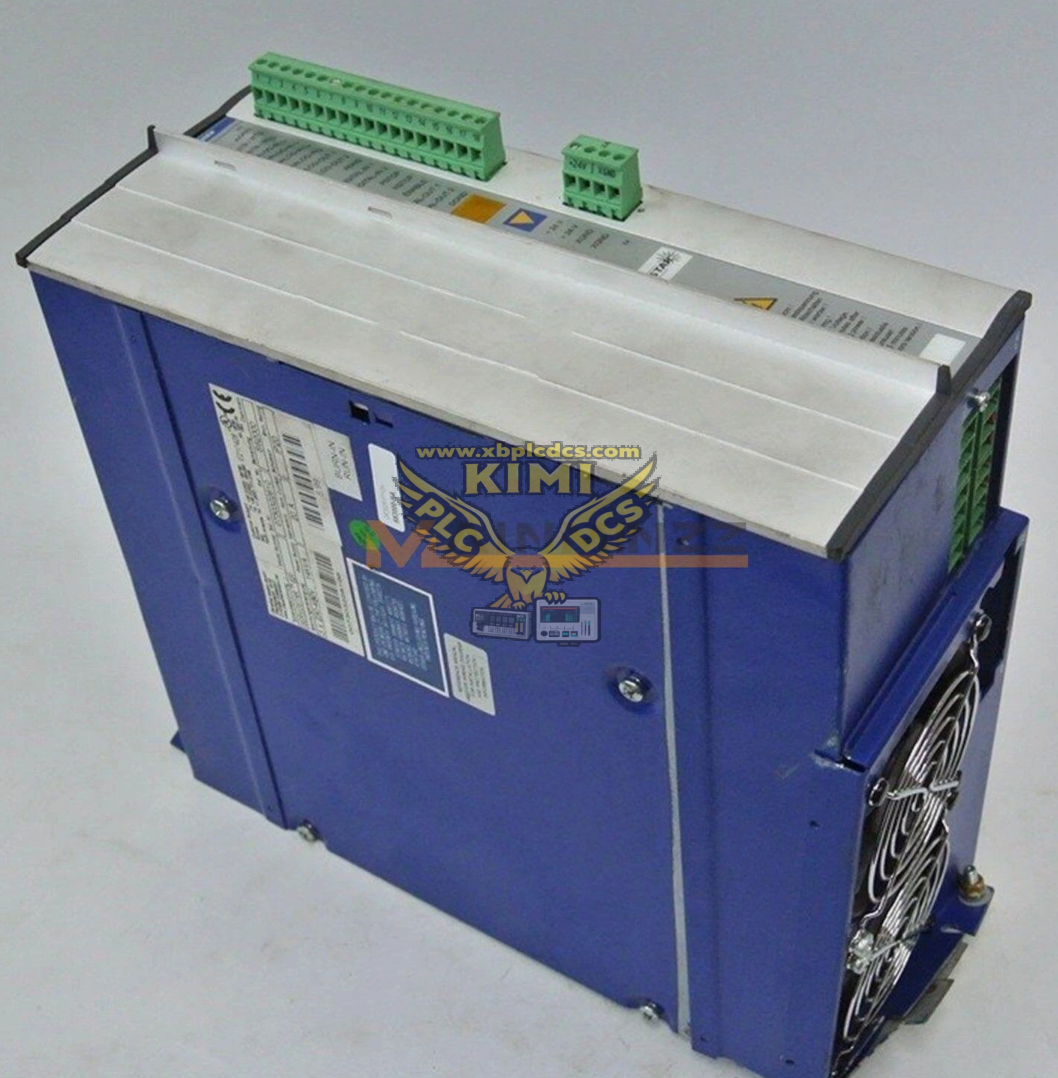

KOLLMORGEN S62000-NA SERVOSTAR 620 Digital Servo Drive

Product Description

S62000-NA is Kollmorgen SERVOSTAR 620 high-performance digital servo amplifier belonging to S600 series. It supports 3-phase 230–480VAC mains power input, rated continuous output current 20A RMS, peak current 40A. The unit integrates built-in dynamic braking resistor, position controller and motion sequence memory storing up to 255 motion tasks. It supports multi feedback types including incremental encoder, resolver, SSI absolute encoder, with native CANopen and RS232 service port, optional fieldbus expansion cards like PROFIBUS, EtherCAT, SERCOS II. DIN rail cabinet mounting, with CE, UL, cUL certification. This model is an obsolete legacy drive, original manufacturing discontinued, spare stock mainly new surplus or refurbished units for equipment retrofit replacement.

Key Functions

• Three control modes: torque, speed and position closed-loop control
• 20A continuous output, 40A peak current for high dynamic acceleration applications
• Built-in motion sequencer, support electronic gear, master-slave follow and registration mark control
• Multi-feedback interface, compatible with resolver, incremental and absolute encoders
• Native CANopen and RS232, flexible fieldbus expansion by add-on cards
• Integrated brake resistor, over-current, over-voltage, over-temperature and short-circuit protection
• Encoder emulation output, step/direction command input for connection with external motion controller
• PC setup software for parameter configuration, oscilloscope function and fault diagnosis

Application Scenarios

• CNC machine tools, high-speed cutting and grinding equipment
• Packaging machinery, printing machinery and textile automation lines
• Robotics, gantry systems and material handling positioning axes
• Semiconductor and electronics manufacturing automation equipment
• Retrofit replacement for existing production lines using SERVOSTAR 600 series drives

FAQ

Q1: What does NA suffix stand for?
A1: NA indicates standard base version without optional fieldbus expansion card.

Q2: What is the input voltage range?
A2: 3-phase 230VAC ~ 480VAC industrial power supply.

Q3: Is S62000 still in production?
A3: S600 series has been discontinued, replaced by Kollmorgen S700 series servo drives.

Q4: Common failure issues?
A4: Power module damage, brake resistor burnout, encoder feedback error, CAN communication failure, over-temperature alarm.
