Brief Product Description

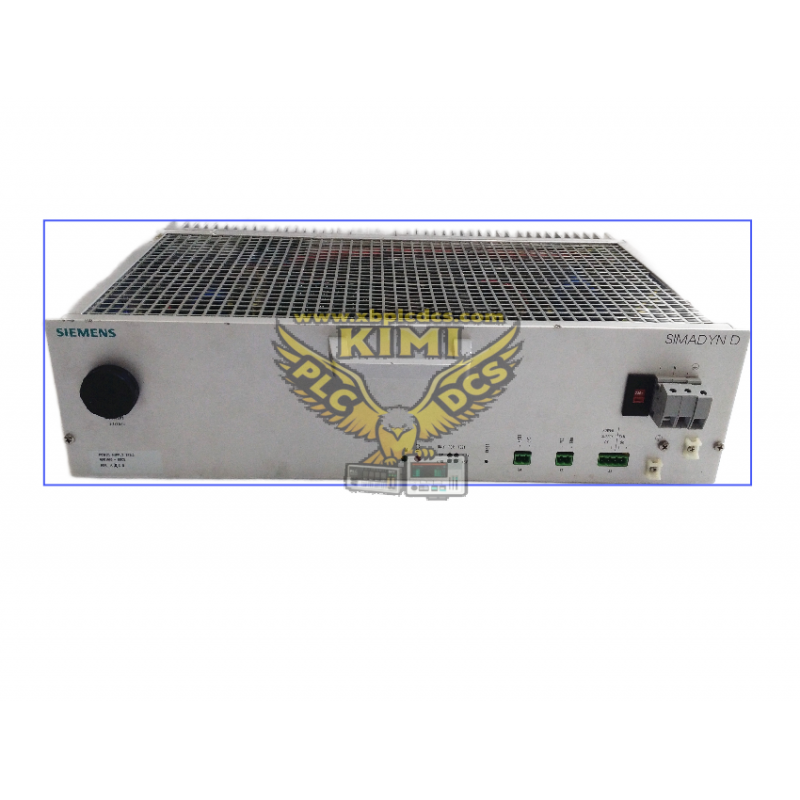

Siemens 6DD1683-0BC5 (SP8.5) is the rack power supply unit for SIMADYN D high-performance programmable control system. It accepts universal AC input 115/230V AC 50/60Hz, converts to 5V DC /52A and 15V DC auxiliary power to supply all SIMADYN D controller, processor and IOM modules inside the subrack. Equipped with built-in cooling fan, module status LEDs, overvoltage, overcurrent and short-circuit protection. It is a mandatory rack power module for SIMADYN D chassis, widely used in high-speed closed-loop control, turbine and rolling mill control. This product is discontinued by Siemens, only tested surplus and refurbished units available for legacy system maintenance and spare replacement.

Core Product Functions

• SIMADYN D rack power supply module, type SP8.5
• AC input: 115/230 VAC auto-range, 50/60Hz
• Main output: 5VDC 52A; auxiliary output:15VDC
• Built-in cooling fan for high-load continuous operation
• Integrated protection: overvoltage, over-current, short-circuit protection
• Onboard LED indicators for power OK, fault and status diagnosis
• Backplane power distribution for all SIMADYN D subrack modules
• Hot swap capable within SIMADYN D rack following safety procedures

Application Scenarios

• SIMADYN D high-performance control rack power supply
• Steam / gas turbine control systems for power plants
• Metallurgical rolling mill high-speed drive and closed-loop control
• Large converter, traction and high-speed machinery control
• Legacy heavy industry high-performance automation retrofit & maintenance

FAQ (Frequently Asked Questions)

• Q: SIMADYN D rack no power after installing 6DD1683-0BC5?
  A: Verify AC input voltage and wiring, check fan operation, LED fault alarm, backplane connection, short circuit on subrack modules.
• Q: What is the difference between 6DD1683-0BC5 and 6DD1683-0BC0?
  A: Both belong to SP series SIMADYN D power supply; 6DD1683-0BC5 is SP8.5 with higher 5V output current 52A, for larger racks; 0BC0 is lower power variant.
• Q: Is 6DD1683-0BC5 still available for new projects?
  A: Siemens end-of-life product, no new original production. Only surplus / refurbished tested spares for existing SIMADYN D systems.
• Q: Common failure points for this power supply?
  A: Fan aging, electrolytic capacitor degradation, output over-current shutdown, input rectifier damage.
