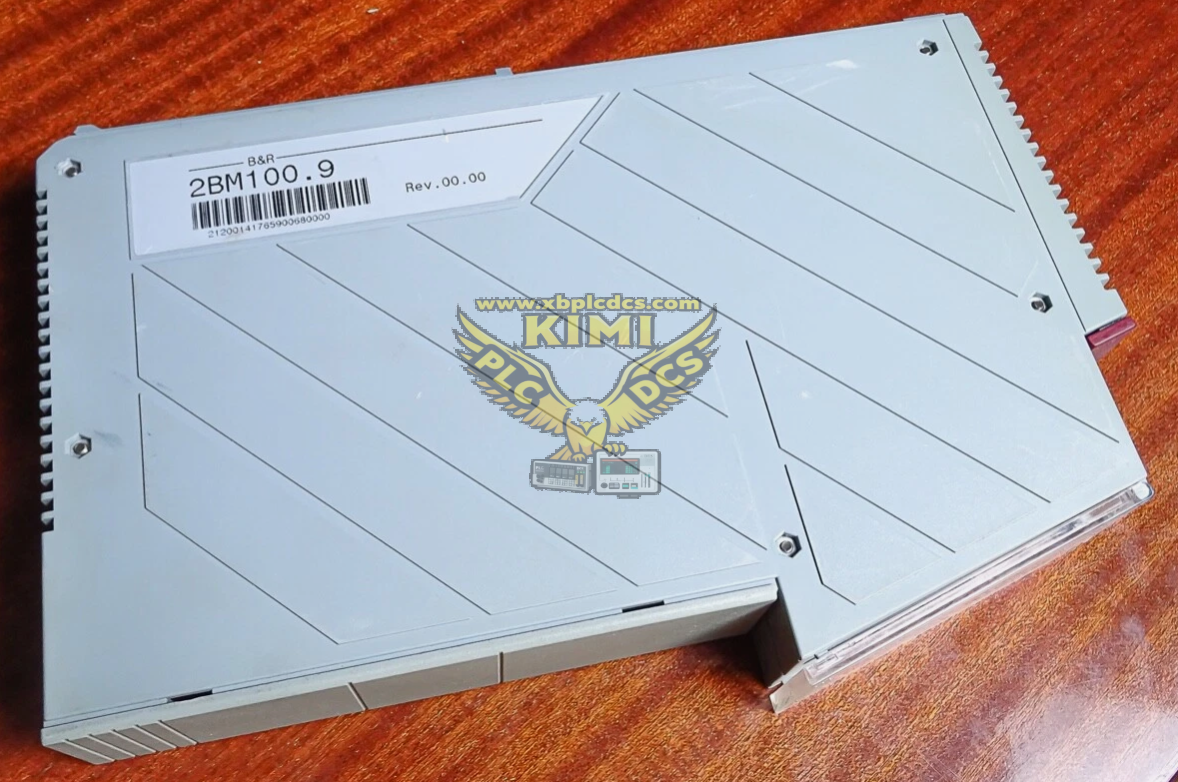

B&R 2BM100.9 Control Module
The B&R 2BM100.9 is a compact control / monitoring module from the B&R System 2003 generation, used for signal conditioning, status monitoring and control tasks within modular B&R automation systems. It is designed for reliable operation in industrial cabinets and supports straightforward integration into existing control architectures via standard communication interfaces. Its robust construction makes it suitable for continuous operation in demanding manufacturing environments.
- Compact module for control and status monitoring tasks
- 24 VDC supply
- Serial and Ethernet communication interfaces
- Configurable via B&R Automation Studio
- Designed for industrial control cabinets
Key Features & Functions
Signal & Status Monitoring
Monitors critical signals and equipment states, supporting real-time supervision and fast response to changes in the machine or process.
Precise Control
Handles control tasks from simple loops to more complex sequences, contributing to consistent, repeatable machine behaviour.
Versatile Communication
Equipped with serial (RS-232) and Ethernet interfaces for flexible connection to supervisory systems and other control components.
Compact Form Factor
Space-saving design simplifies installation into existing control cabinets and distributed control racks.
Robust Construction
Built for reliable operation under fluctuating ambient conditions and continuous industrial duty cycles.
Automation Studio Support
Compatible with B&R Automation Studio, simplifying configuration, monitoring and commissioning.
Technical Specifications
| Model / Order Number | 2BM100.9 |
|---|---|
| Brand | B&R (Bernecker & Rainer) |
| Module Type | Control / Monitoring Module |
| Input Voltage | DC 24 V |
| Power Consumption | Approx. 10 W |
| Communication Interface | RS-232, Ethernet |
| Memory Capacity | Approx. 1 MB |
| Operating Temperature | -20 °C to +60 °C |
| Dimensions (W × H × D) | Approx. 90 × 90 × 30 mm |
| Weight | Approx. 0.2 kg |
Disclaimer: The specifications above are compiled from third-party distributor data for reference only and have not been verified against an official B&R datasheet for this exact order number. Please confirm all technical data, revision and compatibility details with official B&R documentation before ordering or commissioning.
Typical Application Scenarios
- Manufacturing Automation: control and monitoring functions on production and assembly lines.
- Energy & Power: signal and status monitoring in power distribution and energy systems.
- Process Industry: supervision of process signals and equipment states in continuous processes.
- Machine Upgrades & Retrofits: replacing or extending modules in existing B&R control systems.
- System Integration: linking field equipment with supervisory control via serial and Ethernet interfaces.
Frequently Asked Questions
What is the B&R 2BM100.9 used for?
It is a control and monitoring module used for signal processing, equipment status monitoring and control tasks within B&R automation systems.
What are the main technical specifications?
According to third-party listings, the module operates on 24 VDC with approximately 10 W power consumption, RS-232 and Ethernet interfaces, and an operating temperature range of -20 °C to +60 °C. Confirm these values with official B&R documentation.
Which software is used to configure it?
It is reported to work with B&R Automation Studio, which is used for configuration, monitoring and debugging. Verify compatibility with your Automation Studio version.
Is it compatible with current B&R X20 systems?
Some third-party listings claim integration with B&R X20 control systems. This module belongs to an older B&R generation, so cross-system compatibility should always be confirmed with B&R before use.
Are terminal blocks or accessories included?
Accessories are generally not included and must be ordered separately. Please confirm the required terminal blocks and accessories for your specific configuration.
Where can I find the official datasheet?
Official documentation is available from B&R Industrial Automation and from authorized distributors. We recommend verifying all specifications there before purchase.
