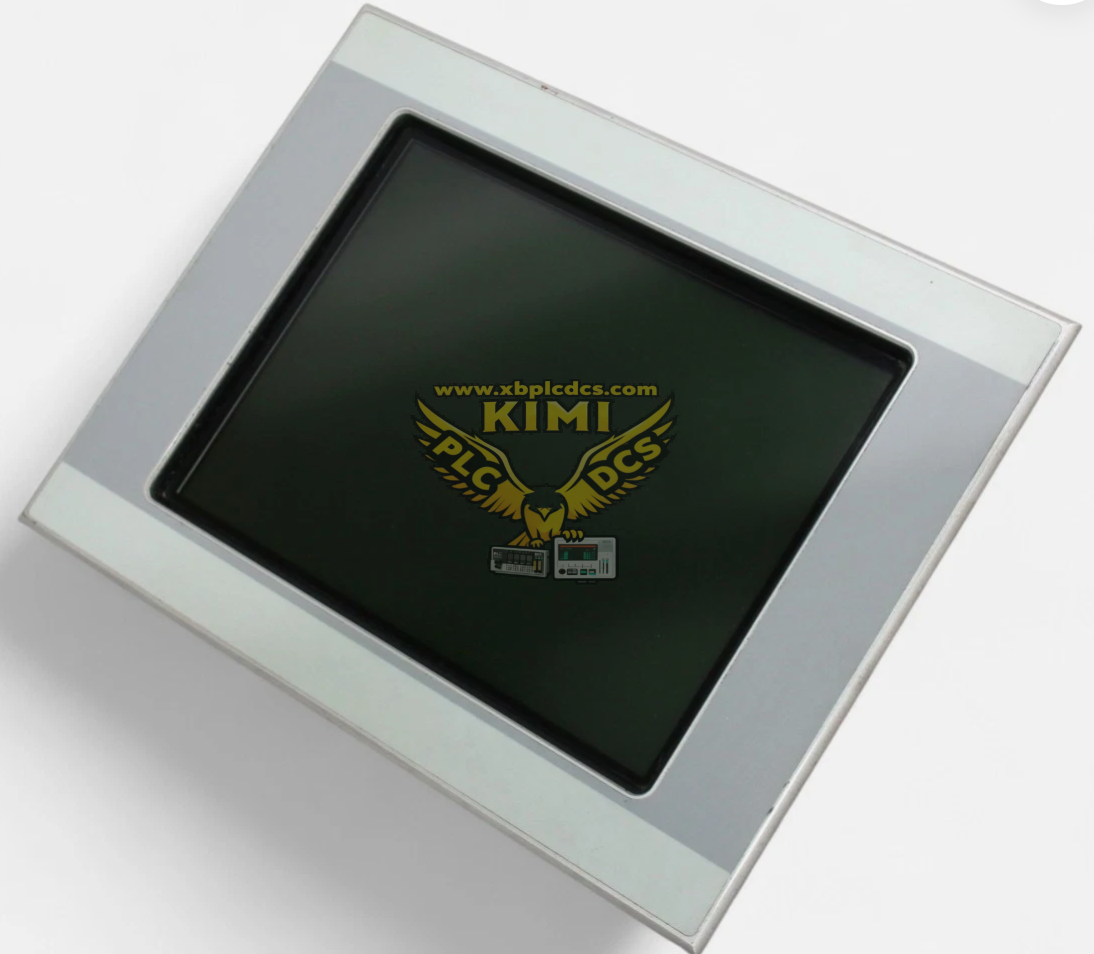

Eaton‑Moeller XV‑440‑12TSB‑1‑10 HMI‑PLC Product Description

The XV‑440‑12TSB‑1‑10 is an integrated HMI‑PLC unit from Eaton Moeller XV300 series, manufactured in Switzerland. It combines 12.1‑inch resistive touch‑screen operator panel and embedded PLC logic controller within one panel‑mount housing, used for machine‑level process visualization, logic control, alarm management and field‑device communication. This unit is end‑of‑life, no longer mass‑produced; only available as surplus / refurbished spare stock. Base firmware pre‑loaded, full HMI project and PLC logic program must be downloaded via XSoft‑CoDeSys engineering software before commissioning. Gross weight approx 2.0 kg.

Product Features

• 12.1‑inch TFT resistive touch display; supports color graphic visualization, recipe management, event‑alarm logging, real‑time trend‑curve display for industrial machines.
• Embedded PLC runtime conforming to IEC‑61131‑3; supports LD / FBD / ST programming languages, executes local logic‑control, interlock‑logic, timing‑counting and batch‑sequence control.
• Multiple communication interfaces: Ethernet, RS232 / RS485 serial port, USB host‑port; supports Modbus‑TCP, Modbus‑RTU, CANopen protocols for connecting PLC, drives and field‑sensors.
• NEMA12 front‑panel rating; compact panel‑mount installation; wide‑range 24 VDC operating power supply; conformal coated PCB for vibration‑prone industrial‑site environment.
• Integrated hardware self‑diagnosis: monitors touch‑screen health, communication‑link status, internal temperature; fault‑event buffer stores timestamped error records for post‑failure analysis.
• XV‑440‑12TSB‑1‑10 is fixed order variant; hardware revision and firmware baseline must match original project; cannot freely swap‑in with XV‑440‑12TSB‑1‑50 without project‑validation test.
• Pre‑installed base firmware; complete HMI visualization project, PLC logic program and communication‑parameter settings must be downloaded by XSoft‑CoDeSys tool after hardware replacement.

Application Scenarios

• Packaging‑machinery, printing‑equipment integrated operator‑control‑panel for factory automation production‑lines.
• Textile‑machinery, plastic‑injection‑machine local machine‑control‑HMI‑PLC spare‑part‑replacement projects.
• Water‑treatment plant, material‑handling system small‑scale stand‑alone automation control‑stations.
• Retrofit‑maintenance for existing production‑plants equipped with aging XV300‑series HMI‑PLC hardware.
