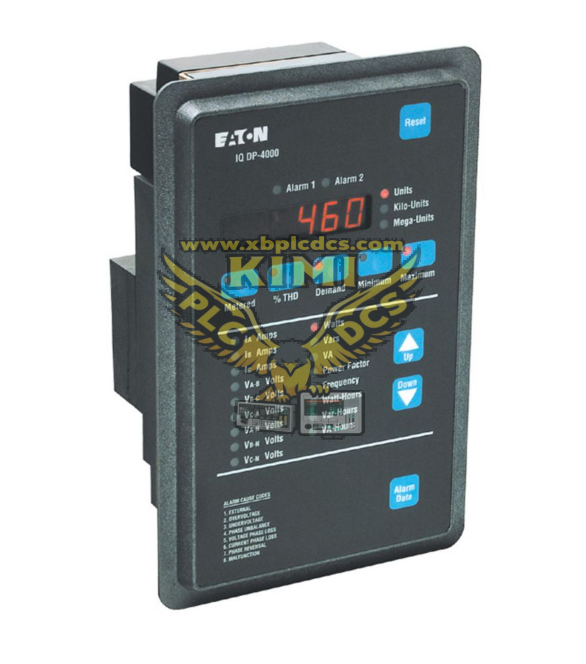

Eaton IQDP4130 (IQ DP-4000 Series) Power Quality Monitor Document

1. Product Description

IQDP4130 is a high-precision 3-phase power monitoring unit under Eaton IQ DP-4000 series, also branded as Cutler-Hammer. It is an integrated panel-mounted power analyzer designed for low-voltage three-phase distribution systems with 90–600 VAC input range, supporting 50/60 Hz grid frequency. This model features 3 Form-C programmable relay outputs, one sync pulse input for demand window synchronization, built-in LED digital display, and optional Modbus RTU / INCOM communication modules. It complies with UL, CSA, CE safety certifications, meets ANSI C12.16 and ANSI C12.20 Class 0.5 accuracy standards, and measures true RMS values up to the 31st harmonic for voltage and current THD analysis. Physical dimensions: 13.2in (D) × 9.6in (W) × 8.6in (H), unit weight 5.4 lb, operating temperature range -25°C ~ +70°C.

2. Core Product Functions

• Comprehensive multi-parameter metering: monitors 74+ electrical parameters including 3-phase V/A, active/reactive/apparent power, power factor, frequency, total energy, max demand, min/max trending values.
• Power quality analysis: calculates voltage & current Total Harmonic Distortion (THD) up to 31st harmonic, detects waveform distortion, unbalanced three-phase loads.
• Multi-condition protective trip logic: programmable overvoltage, undervoltage, phase loss, phase unbalance, overcurrent, harmonic overload alarms via 3 independent Form-C relay contacts.
• Energy & demand logging: stores historical energy consumption, peak demand records, supports KYZ pulse output for energy accumulation counters.
• Synchronized demand window control: dedicated sync pulse input to coordinate demand calculation timing with utility grid metering standards.
• Digital local display & keypad: real-time parameter scrolling, on-site configuration without dedicated software, fault status indicator LEDs.
• Industrial communication: optional RS485 Modbus RTU and INCOM protocols for remote data upload to SCADA, PLC and energy management systems.
• Load shedding control: programmable relay triggers to cut non-critical loads when peak demand or abnormal power quality thresholds are breached.

3. Typical Application Scenarios

• Industrial low-voltage distribution switchgear: factory main power panels, motor control centers (MCC) for manufacturing plants.
• Commercial building energy management: shopping malls, office towers, data center power distribution monitoring.
• Petrochemical & refinery facilities: monitoring critical process power feeds, harmonic suppression supervision for variable frequency drives.
• Power generation auxiliary systems: thermal plant auxiliary power boards, small distributed generation station load monitoring.
• Mining & metallurgical heavy industry: high-power motor distribution panels with severe harmonic distortion risks.
• Utility substation low-voltage feeder cabinets: grid demand monitoring, power quality compliance verification.
• Renewable energy systems: solar/wind plant AC combiner panels for grid interconnection power quality tracking.

4. Common Faults & Troubleshooting Issues

4.1 All Front Panel LEDs & Display Fully Off

Symptom: No display, no indicator lights activate. Root causes: Missing or insufficient control supply voltage, blown upstream protection fuse, incorrect PT/CT wiring, loose main power terminals. Solution: Measure input supply voltage, check circuit breakers and fuses, verify voltage transformer and current transformer wiring diagrams, retighten rear terminal block screws.

4.2 Unstable & Inaccurate Voltage/Current Readings

Symptom: Fluctuating, inconsistent metering values across all phases. Root causes: Missing equipment safety ground connection, loose CT secondary wiring, damaged CT short-circuit jumper, high resistance wiring terminals. Solution: Secure ground wire to monitor chassis ground terminal, inspect CT secondary loop for open circuits, clean corroded wiring contacts.

4.3 Display Digit 5 Flashing (Phase Loss Alarm)

Symptom: Digit 5 blinks continuously, phase loss trip relay energizes. Root causes: Blown phase fuse, open circuit on one AC phase, failed voltage transformer winding, loose single-phase terminal. Solution: Isolate each phase feed to locate open circuit, replace blown fuses, recheck PT primary/secondary wiring integrity.

4.4 Relay Output Fails To Trigger On Threshold Violation

Symptom: Power quality threshold exceeded but no relay contact actuation. Root causes: Incorrect trip setpoint configuration, damaged relay coil, loose relay terminal wiring, disabled alarm logic in menu settings. Solution: Re-verify programmable trip thresholds via front keypad, inspect relay output wiring, reset unit configuration to factory defaults then re-program.

4.5 Modbus RTU Communication Timeout & Data Loss

Symptom: SCADA/PLC cannot pull real-time data, frequent communication dropouts. Root causes: Incorrect Modbus address, mismatched baud rate/parity settings, reversed RS485 A/B wiring, missing bus termination resistor, excessive cable electromagnetic interference. Solution: Match communication parameters between host and monitor, swap RS485 data lines, install 120Ω termination resistor at bus endpoints, route communication cables separate from high-current power wires.

4.6 Overheat & Random Display Glitches

Symptom: Unit surface overheating, screen flickering, intermittent system resets. Root causes: Cabinet ambient temperature exceeding 70°C, blocked ventilation gaps, dust accumulation on internal circuit boards, overloaded relay output contacts. Solution: Improve cabinet forced air cooling, clear dust from unit heat vents, reduce external load connected to relay outputs.
