PCD232A 3BHE022293R0101 PEC80-CIO

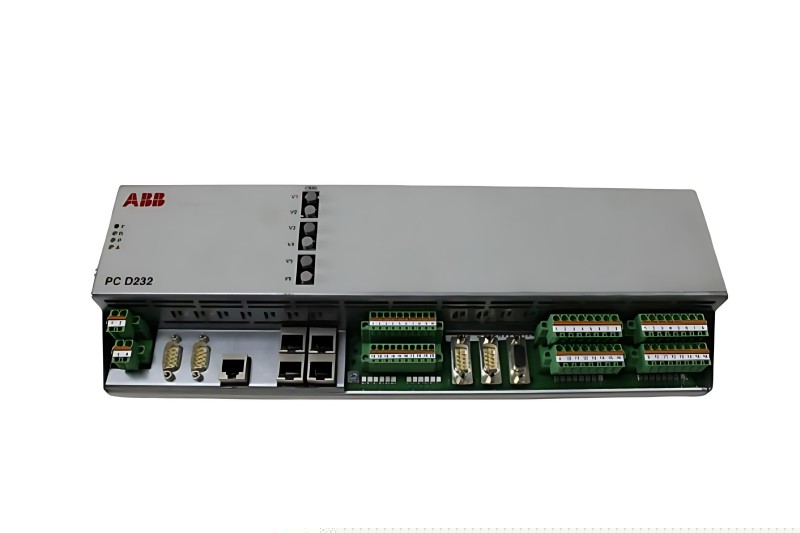

ABB PCD232A 3BHE022293R0101 PEC80-CIO is a combined input/output (CIO) module for UNITROL 6000 X-power excitation systems and other distributed control systems (DCS).

Skilled in handling communication and control tasks in excitation systems.

It offers rich digital and analog input/output functions, enabling effective control, monitoring and measurement of industrial processes. Supports system redundancy,

allowing the use of two PCD232A devices to enhance reliability, and has an independent watchdog function built-in, further strengthening the stability and robustness of the system.

It has powerful input/output capabilities and multiple communication interfaces.

Its inputs include 12 digital control inputs (supporting 24V or 48V), 3 analog inputs (with a range of ±10V or ±20mA), and 3 interfaces for PT100 or PTC temperature sensors. In terms of output,

it is equipped with 16 relay output channels and 3 analog outputs (range ±10V). In terms of communication, the PCD232A offers a 4-port Ethernet switch interface, RS232, CAN, RS485 (supporting CANopen and Modbus),

and an optical module interface with three fiber optic links. This module adopts redundant 24V DC power supply and can operate stably within a wide temperature range from -25°C to +70° C.

It is an important component to ensure the efficient and stable operation of the generator excitation system

Product Number: 3BHE022293R0101

Table of Contents Description: PC D232 A: PEC80-CIO

Detailed description: PC D232 A: PEC80-CIO

Product net depth: 120mm

Product clear height: 80mm

Net weight of the product :247 kg

Product net width: 147mm
