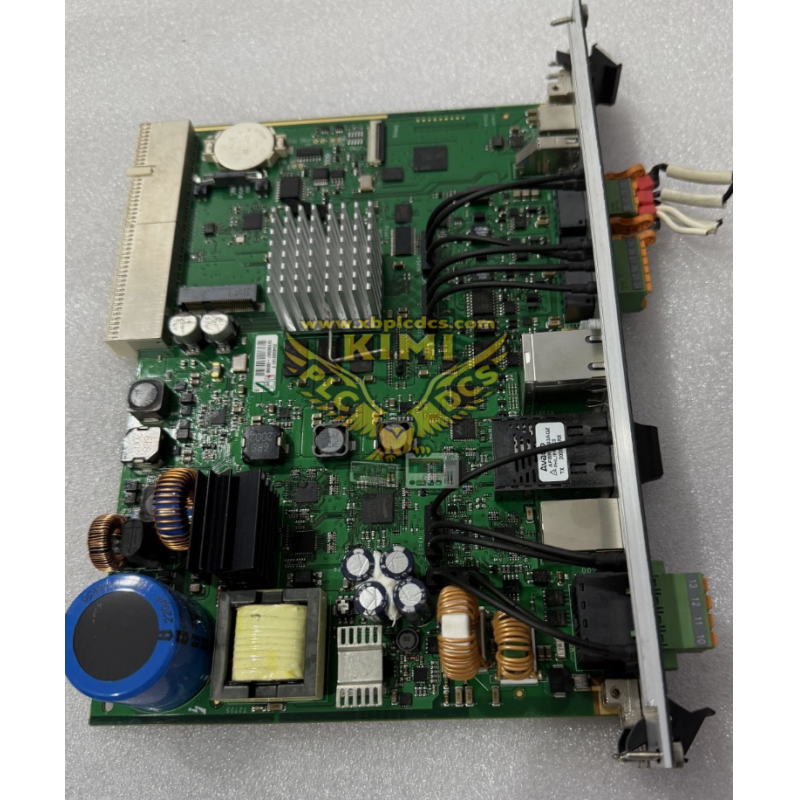

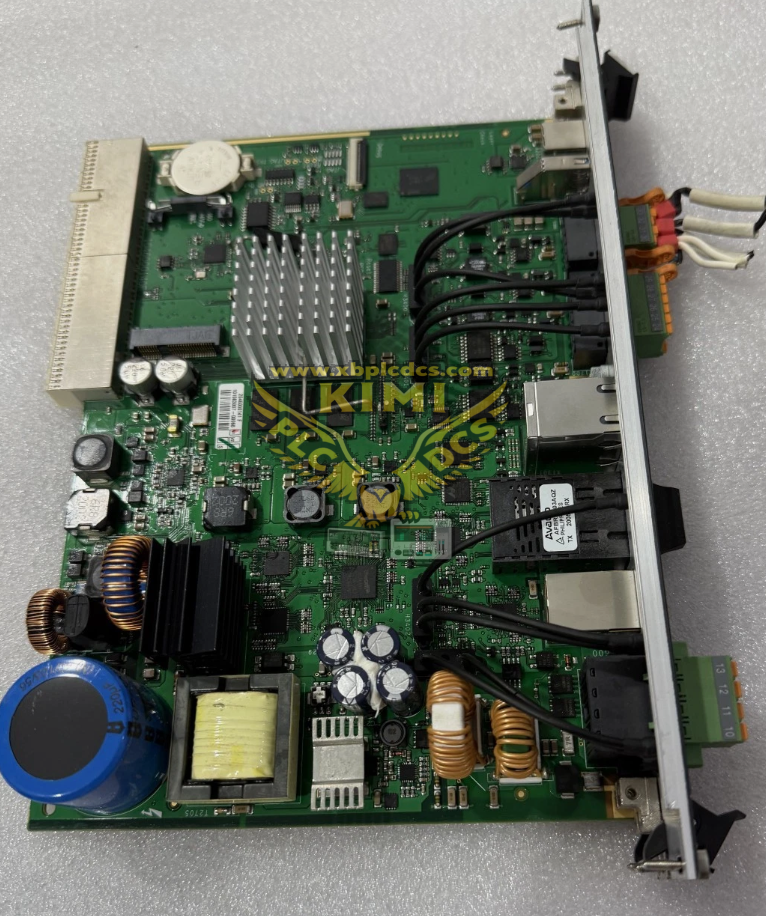

DEIF AWC500 (Commonly Referred to as DEI FAWC 500) Wind Turbine Master Controller

Product Description

The AWC500 (market reference name FAWC 500) is a high-reliability industrial wind turbine dedicated master control unit independently developed by DEIF, belonging to DEIF's exclusive wind power controller product line. As the core intelligent control component specially designed for large-scale onshore, offshore and intertidal wind turbine scenarios that have extremely strict requirements for operation safety and continuous operation stability, it is widely deployed in global wind power generation projects, responsible for accurately executing full-process master control logic from wind turbine startup and grid connection, maximum wind energy capture, to variable pitch safety protection and fault self-diagnosis. It ensures that large wind turbines can continuously and stably operate without interruption under extremely harsh outdoor climate conditions, providing the most fundamental high-reliability operation control guarantee for the high-efficiency power generation of wind farms.

Core Technical Specifications

• Manufacturer: DEIF, original wind power generation control grade production standard
• Product Category: Specialized wind turbine master controller, official product model AWC500, industry common name FAWC 500
• Physical Parameters: Compact industrial modular design, net weight about 1.5kg, IP20 protection grade, fully compliant with marine-grade anti-vibration and anti-shock standards, far exceeding the general industrial wind power industry requirements
• Electrical Parameters: 24V DC industrial power supply, independent dual-power redundant power supply design, built-in 50ms level backup UPS module, which can realize seamless non-disturbing switching between main power and backup power without system control interruption
• Performance Parameters: Adopting 32-bit high-performance industrial processor, the minimum control loop response time can reach 2ms, integrated dedicated high-precision power quality measurement module, which can accurately collect real-time power parameters of the wind turbine grid connection side at high speed
• Memory Configuration: Large-capacity non-volatile high-reliability Flash memory, with no backup lithium battery design, effectively avoiding configuration data loss risk caused by battery aging
• Communication Capability: Natively supports industrial standard communication protocols including Ethernet, Modbus RTU/TCP, Profibus, which can seamlessly realize data interconnection with wind farm upper SCADA monitoring platform, variable pitch system, converter unit and meteorological sensor
• EMC and Certification: 6.0kV surge immunity level, 8.0kV electrical fast transient pulse immunity level, 4.0kV common mode voltage immunity and 2.0kV differential mode voltage immunity, fully obtained DNV marine certification, which can be safely applied to offshore, land and intertidal wind farm scenarios
• Operating Environment: -40°C to +70°C ultra-wide temperature industrial working range, maximum allowable operation altitude ≤4000 meters, mean time between failures (MTBF) up to 2 million hours, the official provides up to 5 years of product quality assurance service

Key Product Functions

• Full-Cycle Wind Turbine Master Control Logic Execution: The module can automatically complete the full process control actions from wind turbine wind speed judgment, self-startup, grid connection, optimal rotational speed control for maximum wind energy capture, constant power operation, to normal shutdown and fault emergency shutdown. It can automatically adjust the generator operation state in real time according to the actual wind speed change, maximize the wind energy utilization efficiency, and effectively improve the annual power generation of the wind turbine.
• High-Precision Power Quality Real-Time Monitoring: The built-in dedicated high-speed power quality measurement module with 2ms-level response speed can accurately monitor grid voltage, current, frequency, harmonic content and other parameters in real time, automatically trigger the corresponding low-voltage ride through, off-grid protection and other control actions when the grid side fault occurs, fully complying with the grid-connected operation technical specifications of the global power grid system.
• Full-Hierarchy Safety Interlock Protection Mechanism: Integrated multi-level independent safety interlock protection logic for the wind turbine. When the key parameters such as rotational speed, vibration, blade pitch angle and temperature are abnormal, it can quickly trigger the safe shutdown action, effectively preventing major safety accidents such as wind turbine overspeed runaway and blade damage.
• Full Self-Diagnosis and Fault Log Automatic Upload: The module continuously performs real-time all-round health monitoring on the operation state, communication link state and on-site sensor signal state of the controller itself. It can automatically identify abnormal states such as sensor signal loss, communication interruption, module hardware fault, and upload fault alarm log information to the wind farm upper monitoring platform in time, helping operation and maintenance personnel quickly locate system hidden dangers and effectively shorten the system fault recovery time.
• Highly Integrated Hardware Simplifying Spare Parts Management: The controller highly integrates a large number of digital and analog signal acquisition modules. Under the condition of meeting all the signal acquisition demands of the wind turbine, the total types of on-site spare parts are greatly reduced, effectively reducing the spare parts storage and management cost of the wind farm operation and maintenance team.

Typical Application Scenarios

• Onshore wind power industry: Large-scale onshore wind farm wind turbine master control system, responsible for the full-process operation control of each wind turbine unit.
• Offshore wind power industry: Offshore deep-sea wind farm wind turbine master control system, realizing long-term stable operation of the wind turbine under harsh offshore salt fog and strong vibration environment.
• Intertidal zone wind power industry: Tidal flat intertidal wind farm wind turbine master control system, adapting to the high humidity, high salt fog and large temperature difference operation environment in the intertidal zone.
• Distributed wind power industry: Small and medium-sized distributed wind power unit control system, realizing the stable and reliable grid-connected operation of distributed wind turbines.
• Industrial transformation and upgrading projects: Spare parts replacement and system maintenance of old DEIF AWC500 series wind turbine control systems that have been in operation for many years in various wind farms.
