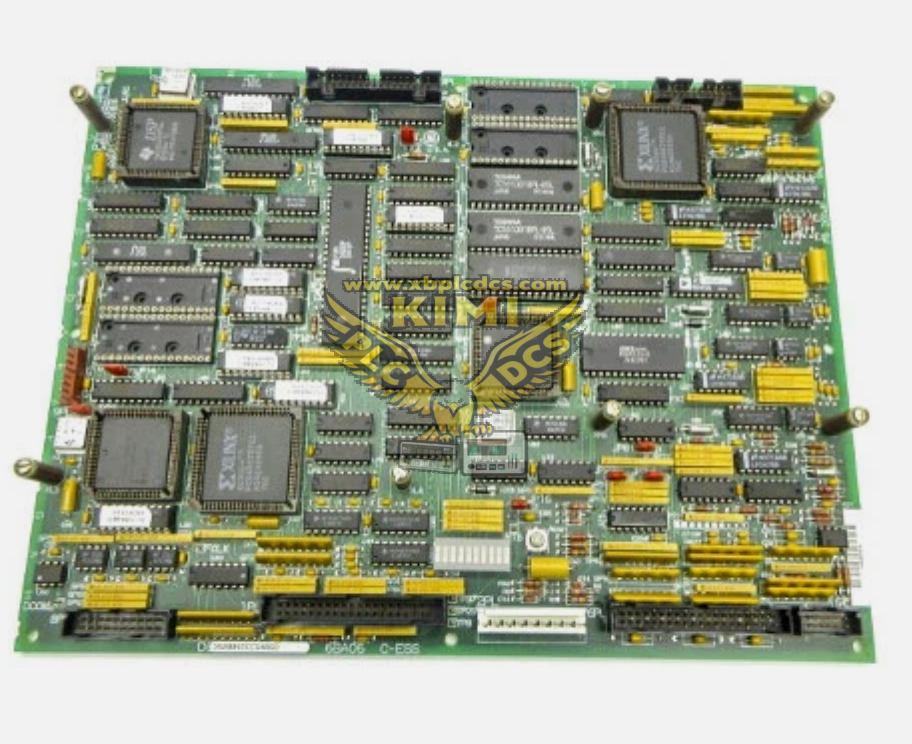

GE DS200SDCCG4AGD Mark V Drive Control I/O Board

Product Brief Description

The DS200SDCCG4AGD is a high-performance dedicated drive control I/O board developed by General Electric (GE) for the classic Speedtronic Mark V gas turbine control system, manufactured at GE Fanuc's US industrial production base. It belongs to the core component of the DS200 series Mark V system, specially designed for precision closed-loop control of critical gas turbine actuators such as fuel valves, inlet guide vanes and anti-surge valves, ensuring high-precision and fast response operation of the gas turbine throughout the full cycle of startup, steady load regulation and shutdown. It is one of the most critical actuator signal output processing boards in global in-service Mark V gas turbine control systems.

Core Technical Specifications

• Manufacturer: GE (General Electric) Fanuc, original US aerospace industrial grade production standard
• Product Category: Mark V DS200 series servo drive control I/O main board, belonging to the core component of the Mark V system RST architecture
• Physical Parameters: Net weight about 1.8kg, multi-layer thickened industrial PCB with anti-corrosion and anti-high-temperature coating, aluminum alloy reinforced structural design
• Signal Performance: Supports high-precision ±10V and 4-20mA analog control output, 16-bit D/A conversion accuracy, output response delay ≤ 1ms, fully meeting the millisecond-level fast adjustment requirements of gas turbine fuel valves
• Interface Definition: Equipped with dedicated 96-pin system bus connector and multi-channel shielded analog output port, seamlessly interconnected with the Mark V main CPU board and SDCC series supporting terminal boards
• Operating Environment: -25°C to +70°C working temperature, 0-95% non-condensing relative humidity, fully passing power plant level EMC anti-electromagnetic interference and vibration resistance certification

Key Core Functions

• High-Precision Servo Valve Drive Control: This board is specifically responsible for outputting high-precision analog control signals to drive fuel control servo valves, gas turbine inlet guide vane actuators and anti-surge valves, realizing microsecond-level rapid adjustment of fuel flow and air intake, making the gas turbine's load regulation accuracy reach ±0.5% of the rated value
• Dual-Channel Redundancy Closed-Loop Control: It supports simultaneous access to two independent LVDT position feedback signals from the actuator for real-time closed-loop calibration, automatically filtering out invalid feedback data through the internal 2oo2 voting mechanism, effectively avoiding control drift caused by sensor anomalies
• Built-in Full Self-Diagnostic Capability: The board is integrated with a dedicated hardware monitoring circuit, which can real-time detect faults such as output overload, signal open circuit, reference voltage abnormality and communication failure, and immediately trigger the safety interlock protection logic and upload fault codes to the Mark V HMI system
• Fast Safe State Response: The hardware design ensures that when the board fails or the system triggers a trip command, the output will automatically and reliably fall back to the pre-defined fail-safe state (valve fully closed, actuator reset) within 2ms, completely avoiding the dangerous operation state of the gas turbine losing control

Typical Application Scenarios

• GE 9E/9F series heavy-duty gas turbine Mark V control systems in combined cycle power plants and large simple cycle power stations
• Spare parts replacement and performance upgrade transformation projects of in-service Mark V systems in large-scale petrochemical refinery captive power plants
• Precision anti-surge control supporting for large centrifugal compressors of natural gas long-distance transmission trunk lines and LNG receiving stations
• Auxiliary gas turbine and large boiler actuator precision control scenarios in large metallurgical steel plants and industrial central heating islands

Installation and Maintenance Guidelines

• Strictly implement level 3 anti-static protection before installation: operators must wear reliably grounded anti-static wrist straps and anti-static gloves, which can avoid permanent damage to high-precision D/A conversion chips on the board caused by static electricity
• Verify that the board slot positioning is correct before inserting, confirm that the backplane connector is fully seated and then lock the fixing screws on both sides to prevent poor contact caused by long-term vibration
• Complete the zero point and full-scale calibration of each output channel through the Mark V system dedicated calibration function after power-on, which ensures that the control accuracy of the actuator meets the design requirements
• Regularly check the operation indicator status on the board during daily operation, and clean the dust accumulated on the board surface every 1.5 years to ensure long-term stable heat dissipation performance

Market and Supply Status

Although GE has long since stopped mass production of this Mark V series high-value control board, professional industrial DCS spare parts suppliers in Xiamen, Fujian still have limited spot stocks of original new surplus and fully refurbished units that have undergone 72-hour high-temperature aging test. The current reference market price starts from about 38,000 CNY, and units can be delivered on the same day in urgent cases, fully satisfying the critical spare parts emergency replacement demand of in-service Mark V gas turbine systems.
