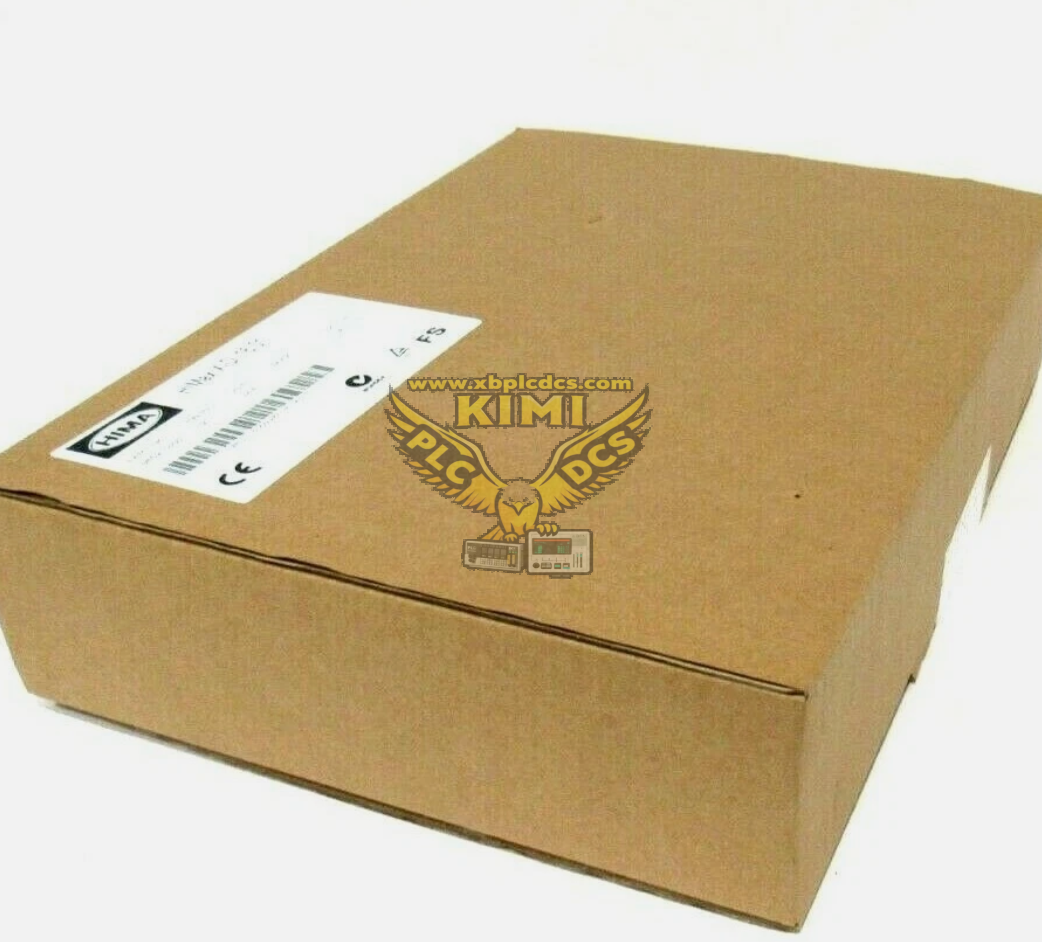

HIMA X-DI 32 02 32-Channel Safety Digital Input Module

Product Brief Description

The HIMA X-DI 32 02 is a high-performance 32-channel safety digital input module purpose-built for the HIMA HIMax series safety control system platform. Manufactured by the world-renowned German functional safety specialist HIMA, it is fully certified to IEC 61508 SIL 3 functional safety standards. As the core signal acquisition front-end of the safety instrumented system (SIS), it is specially optimized for industrial scenarios that require both high channel density and event sequence recording (SOE) capability, delivering ultra-reliable on-site switch state signal collection performance for critical heavy industrial safety protection applications.

Core Technical Specifications

• Channel Configuration: 32 independent galvanically isolated safety digital input channels, supporting simultaneous access to massive on-site switch state signals
• Electrical Parameters: 24V DC ±20% wide voltage input, compatible with standard NPN/PNP type on-site proximity switches, limit switches and safety interlock signals
• Core Function: Natively supports SOE (Sequence of Events) high-precision event recording, with a time resolution up to 1ms, accurately recording the action sequence of all safety signals during system faults
• Safety Architecture: Adopts 2oo3 fault-tolerant voting design, critical fault diagnostic coverage ≥ 99%, single channel fault will not affect the normal operation of the overall safety system
• Operating Environment: Working temperature range -20°C to +60°C, storage temperature -40°C to +85°C, IP20 protection rating, suitable for standard industrial control cabinet deployment
• Supply Status: Spot inventory available in Fujian, with reference market price starting from 2600 CNY per unit, supporting fast delivery for on-site maintenance and system upgrade projects

Key Product Features

• Integrated full-channel independent line monitoring function, which can real-time detect on-site sensor disconnection, short circuit and other hidden faults, automatically uploading diagnostic information to HIMA SILworX configuration software, helping maintenance personnel quickly locate abnormal points
• Built-in high-precision SOE event recording function, which can accurately capture and timestamp the state change of each input channel at millisecond level, providing complete and reliable data support for post-accident cause analysis
• All channels achieve 500Vrms electrical isolation performance, effectively preventing the fault of a single on-site device from spreading to the system side, avoiding electromagnetic interference affecting the signal accuracy of other channels
• Supports full hot-swap online replacement operation, allowing maintenance personnel to replace faulty modules without shutting down the running safety system, which will not affect the normal signal acquisition and SOE recording of other channels
• Seamlessly compatible with HIMA HiCTB32-HIM series supporting field terminal assembly, no extra signal conversion accessories are needed, and the standardized wiring design greatly shortens the engineering commissioning cycle

Common Application Scenarios

• Emergency Shutdown (ESD) systems in large-scale petrochemical refining facilities: collecting massive safety switch signals for pressure, liquid level, temperature and other on-site state points, and recording the action sequence of interlock events
• Boiler protection systems in large-capacity thermal power plants: collecting flame detectors, valve position feedback and switch state signals of various safety protection switches, providing complete SOE data for trip event analysis
• Safety interlock signal acquisition for high-risk production links in nuclear power, metallurgy, large-scale pharmaceutical manufacturing and rail transit signal systems
• New construction and expansion projects of HIMax safety systems that require both high-density digital signal access and high-precision event sequence recording functions

Installation and Configuration Guidelines

• This module must be installed in the dedicated slot of HIMA HIMax series redundant baseplate, and it is strictly forbidden to mix and use it with non-matching old generation system modules
• Before on-site wiring, confirm that the voltage type and level of the on-site switch signal are consistent with the module configuration, and the signal line should be routed separately from the high-power power line to reduce electromagnetic interference
• Configure signal type, filter debounce time, line monitoring enabling and SOE recording parameters for each channel through HIMA SILworX software, and perform point-by-point signal verification after configuration is completed
• The shielding layer of the safety signal cable should be reliably grounded at the single end of the control cabinet, and regular cleaning and dust removal of the control cabinet should be carried out to ensure the heat dissipation performance of the module under long-term operation
