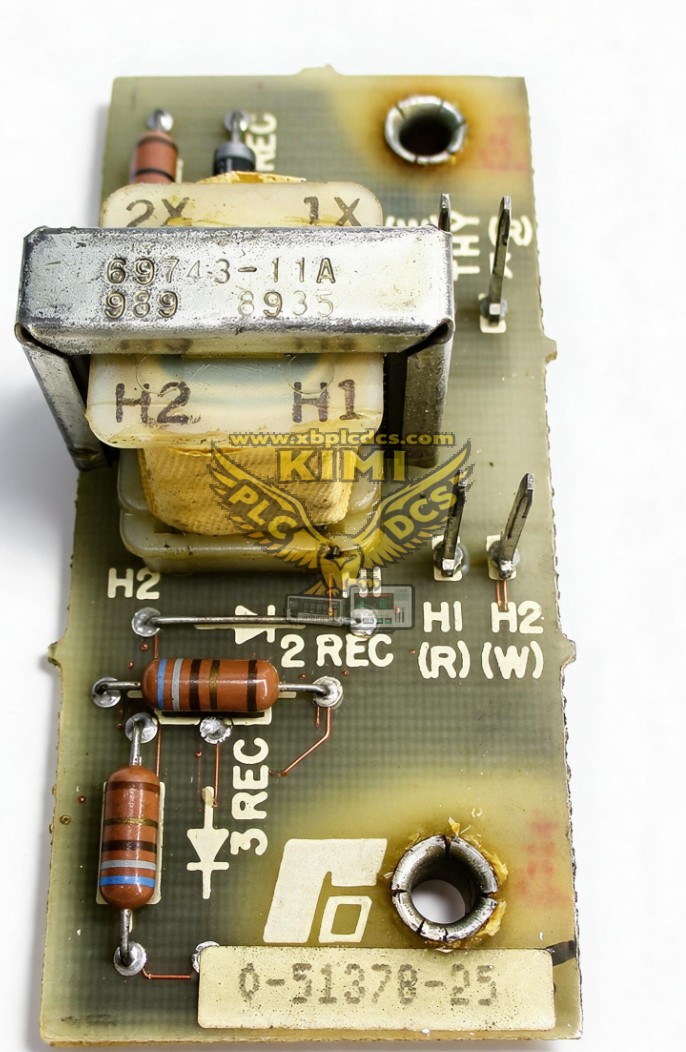

Reliance 0-51378-25 Gate Coupling Board
Short Description: Reliance 0-51378-25 is a gate coupling PCB board for Reliance MaxPak Plus rectifier stack systems. Manufactured by Reliance Electric (Baldor Reliance / ABB legacy product), this discontinued circuit board delivers gate drive pulse signals to SCR rectifier stacks. It features integrated pulse transformer, resistors and connectors, mounted directly on top of rectifier assemblies for DC drive power conversion control.
Product Functions
- Generates and transmits SCR gate trigger pulses for MaxPak Plus rectifier stack
- Isolates control signals from high-power rectifier circuits via built-in pulse transformer
- Matches gate pulse amplitude and timing to thyristor firing requirements
- Compact PCB assembly designed to bolt onto the rectifier stack housing
- 2-pin stab connector interface for signal wiring connection
- Supports controlled AC-to-DC power conversion for Reliance DC motor drives
Application Scenarios
- Reliance MaxPak Plus DC drive rectifier stack assemblies
- Heavy industry DC motor speed control systems
- Metal rolling mills, extrusion lines and metal processing machinery
- Mine hoist, paper machine and large conveyor DC drive control cabinets
- Legacy industrial drive retrofit, spare part replacement for old Reliance systems
FAQ
Q1: What system does Reliance 0-51378-25 fit?
A1: It is dedicated for Reliance MaxPak Plus rectifier stacks. Not compatible with HIMA, HIMax, HIQuad or other PLC/SIS systems.
Q2: Is this product still in production?
A2: No, it is an end-of-life discontinued legacy Reliance Electric spare part. Available as new surplus, refurbished or used tested stock only.
Q3: What happens if the gate coupling board fails?
A3: Missing or distorted SCR trigger pulses cause rectifier misfiring, unstable DC output, drive trip alarms or thyristor damage.
Q4: Can I repair the 0-51378-25 board on site?
A4: Component-level repair is possible by qualified electronics technicians, but direct board replacement is the preferred method to avoid unexpected drive downtime.
Q5: What are common failure causes?
A5: Overvoltage surges, heat aging of transformer/resistors, dust contamination, vibration and loose connector contacts are typical failure sources.
